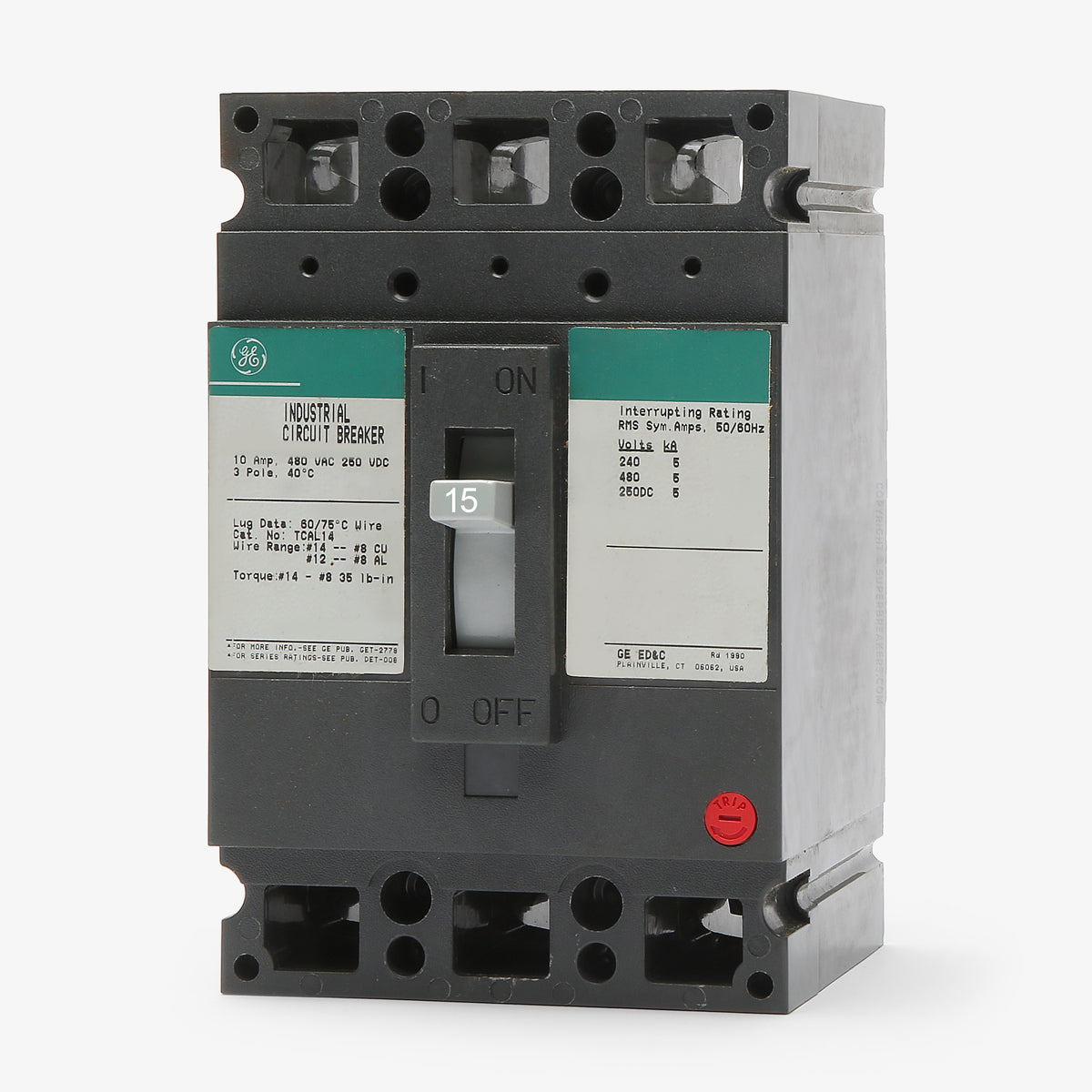

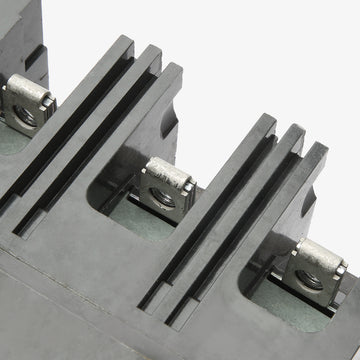

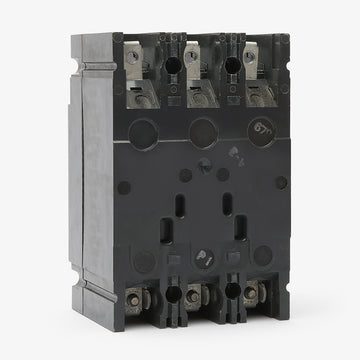

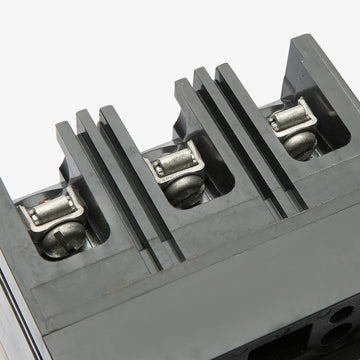

ABB / General Electric THED136015WL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
ABB / General Electric
THED136015WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136015WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric THED136015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136015WL |
| Series | THED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, HID Rated |
Quantity
ABB / General Electric THED136015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136015WL-R |
| Series | THED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, HID Rated |
Similar Items
ABB / General ElectricTHED136025WL
25A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136030WL
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136035WL
35A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial power systems, the THED136015WL is a 15-amp, three-pole unit mount molded case circuit breaker. Operating within the E150 line, it provides reliable long-time and instantaneous thermal-magnetic trip protection. Unlike bolt-on variants, this feed-thru breaker mounts into standalone enclosures, switchboards, and motor control centers. It includes TCAL12 line and load lugs and replaces older TED136015WL models. With a 65 kAIC rating at 240VAC, it safely clears faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136015WL-R |
| Series | THED |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, HID Rated |
Product FAQs
8 answersIs the THED136015WL manufactured by GE or ABB?
GE Industrial Solutions was acquired by ABB. Depending on the manufacturing date, this breaker may be branded as either General Electric or ABB. The physical dimensions, mounting, and technical specifications remain identical regardless of the label.
What does the WL suffix mean in the THED136015WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with copper/aluminum (Cu/Al) line and load lugs for wire termination. If the suffix is omitted, the breaker typically ships without lugs.
What frame size is the THED136015WL?
This breaker is built on the GE TED frame, which is part of the E150 product line of molded case circuit breakers.
How is the THED136015WL circuit breaker mounted?
It features a unit mount, feed-thru configuration. It is designed to be bolted directly to the backpan of compatible enclosures, switchboards, or motor control centers rather than plugging onto a busbar.
Can the THED136015WL be used in DC voltage applications?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is rated for DC applications up to 500VDC, where it provides a 10kA interrupting capacity.
Is the THED136015WL suitable for reverse feed applications?
Yes, GE THED series breakers are suitable for reverse feed applications. This allows power to be supplied to either the line or load terminals without affecting the trip characteristics.
Are the trip settings on the THED136015WL adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and non-adjustable.
What wire sizes do the factory lugs on the THED136015WL accept?
The included lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
