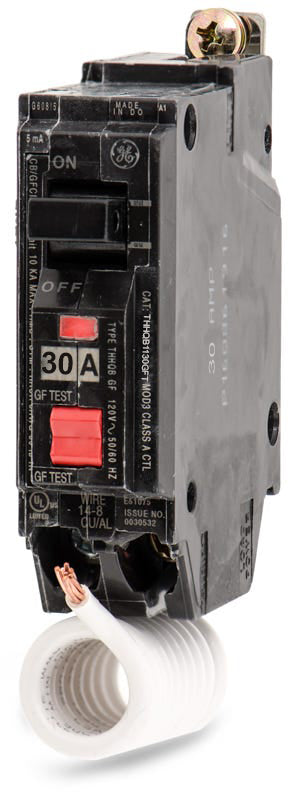

ABB / General Electric THHQB1130GFT GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
THHQB1130GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB1130GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB1130GFT - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHHQB1115GFT
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1130GFI
THQB1130GF - 30A GFCI Miniature Circuit Breaker
Description
Part of the Q-Line family, this 30A bolt-on GFCI breaker delivers Class A ground-fault protection for commercial electrical systems. The GE THHQB1130GFT operates at 120/240VAC with a 22 kAIC rating, meeting NEC requirements for damp locations. It mounts into GE A-Series panelboards and AQ lighting panels, serving as the replacement for the older THHQB1130GF model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB1130GFT |
| Series | THHQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THHQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Self-Test Feature |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Class A Ground Fault Protection (5mA), Self-Test, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich panelboards are compatible with the THHQB1130GFT circuit breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards and GE AQ lighting panels. It is not compatible with standard residential load centers that require plug-on breakers.
What is the difference between the THHQB1130GFT and the older THHQB1130GF?
The THHQB1130GFT is the direct replacement for the older THHQB1130GF. The T suffix indicates that the new model includes an automatic self-test feature to ensure the ground-fault circuitry is functioning properly, as required by updated UL standards.
Can I use the THHQB1130GFT in place of a THQB1130GFT?
Yes. The THHQB series features a higher interrupting rating (22kAIC) compared to the standard THQB series (10kAIC). It shares the same physical dimensions and bolt-on mounting, making it a safe, upgraded replacement where higher fault current protection is required.
Why is the THHQB1130GFT listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either GE or ABB branding. The form, fit, and function remain identical regardless of the label.
What level of ground-fault protection does the THHQB1130GFT provide?
This breaker provides Class A ground-fault protection, meaning it is designed to trip when a ground fault of 5mA is detected, protecting personnel from electrical shock.
How is the neutral connected for the GFCI function on this breaker?
The THHQB1130GFT features a pigtail neutral wire that must be connected directly to the neutral bus bar in the panelboard to power the ground-fault circuitry and ensure proper operation.
What wire sizes are accepted by the box lugs on the THHQB1130GFT?
The terminal lugs accept 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors.
