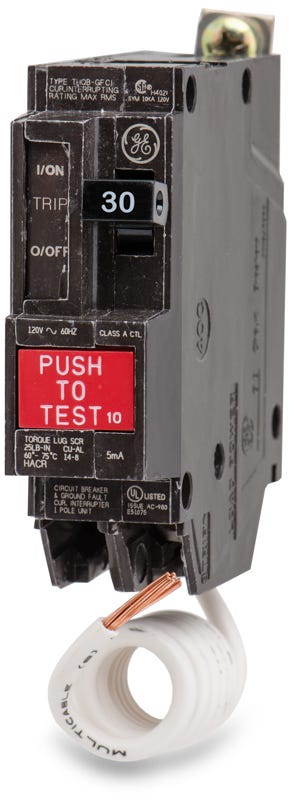

ABB / General Electric THQB1130GFI THQB1130GF - 30A GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1130GFI
THQB1130GF - 30A GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1130GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130GFI |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Sold out
Quantity
ABB / General Electric THQB1130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130GF-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Similar Items
ABB / General ElectricTHQB1120GF
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB1115GF
15A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240V, this 30A single-pole GFCI breaker delivers essential personnel protection for commercial and industrial applications. The unit features thermal-magnetic trip technology with a self-test function to ensure continuous safety compliance. Mounts securely into GE A-Series panelboards using a bolt-on connection for enhanced stability. It provides Class A 5mA ground fault protection to meet NEC requirements for wet or damp locations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130GFI |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
7 answersWhat panelboards are compatible with the THQB1130GFI?
This breaker is designed specifically for GE A-Series panelboards. Because it utilizes a bolt-on connection, it is not compatible with standard residential load centers that require plug-in breakers.
Is there a difference between the THQB1130GF and THQB1130GFI catalog numbers?
No, they are the exact same product. GE uses the GF and GFI suffixes interchangeably to indicate a Ground Fault Circuit Interrupter. Both part numbers refer to this 30A Class A GFCI breaker.
What is the ground fault trip threshold for the THQB1130GFI?
This breaker provides Class A ground fault protection, which means it is calibrated to trip at a 5mA ground fault current. This level of protection is required by the NEC for personnel safety in wet or damp locations.
How is the neutral wired on the THQB1130GFI breaker?
This unit is equipped with a pigtail neutral wire. The pigtail must be connected directly to the panelboard neutral bus to power the internal GFCI circuitry and enable accurate ground fault detection.
Can I install a THQB bolt-on breaker in a THQL plug-in load center?
No. THQB breakers feature a bolt-on mounting style designed for commercial panelboards. They cannot be installed in load centers that are configured for THQL plug-in breakers.
Does this GFCI breaker include a self-test function?
Yes, this breaker features an internal self-test function to ensure the ground fault detection circuitry remains fully operational and compliant with continuous safety standards.
What does the LIG trip function code mean on this breaker?
The LIG designation indicates that the thermal-magnetic trip unit provides Long-Time overload protection, Instantaneous short-circuit protection, and Ground-Fault protection.
