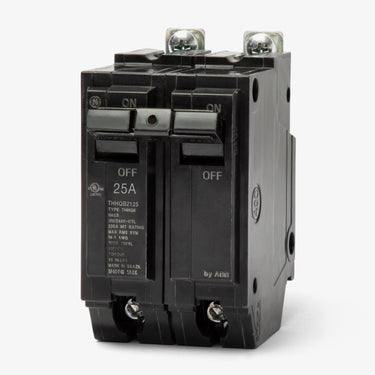

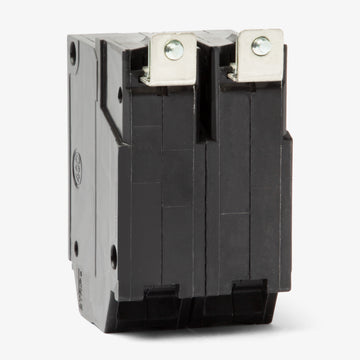

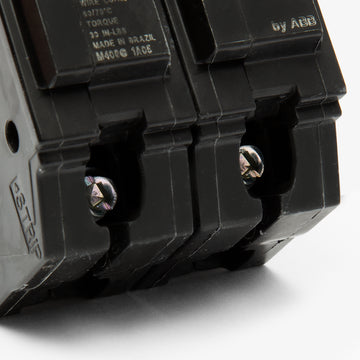

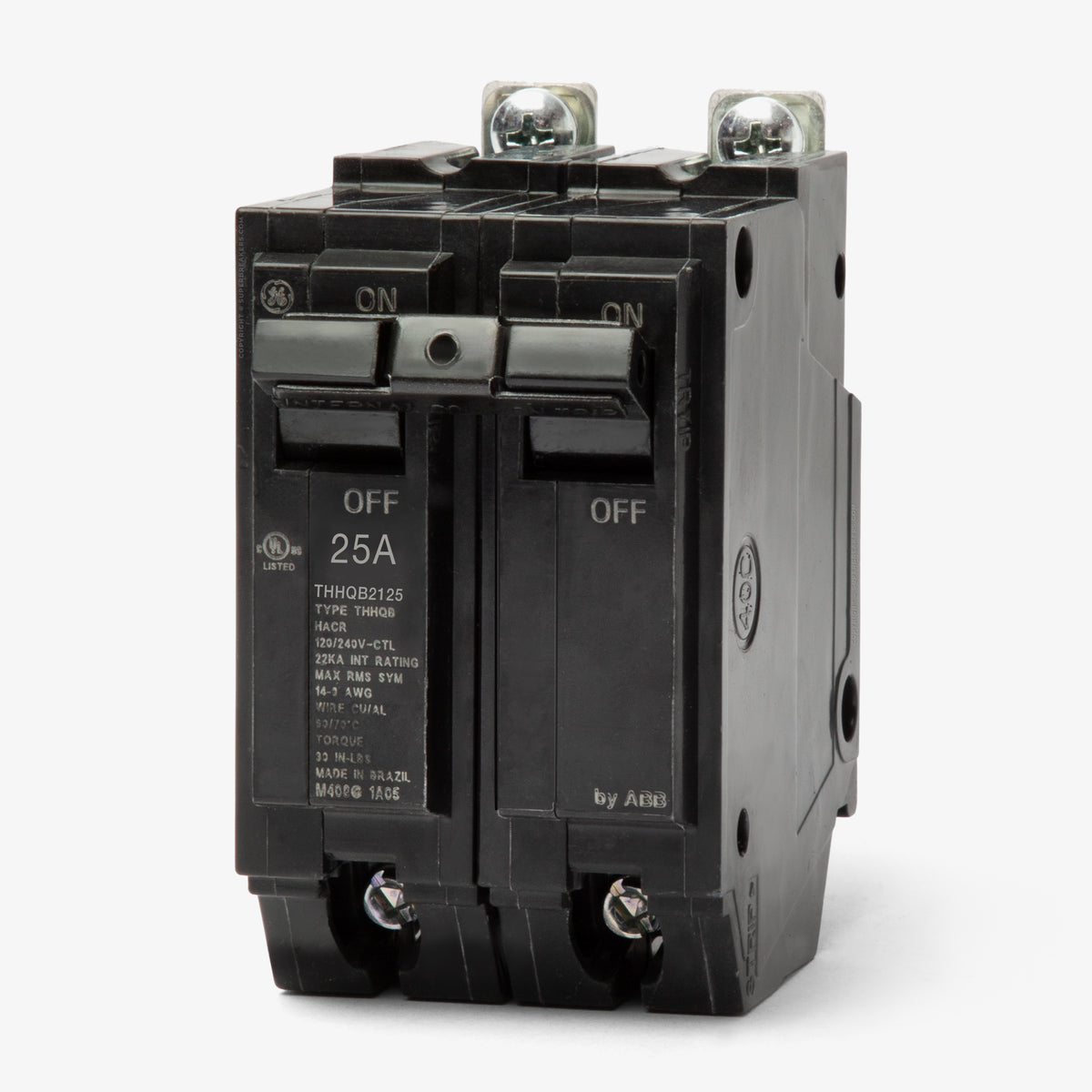

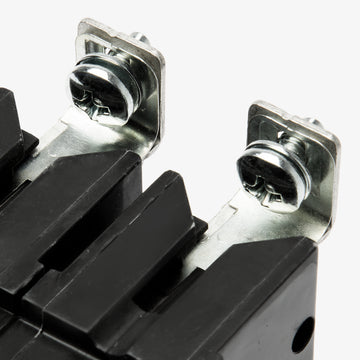

ABB / General Electric THHQB2125 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2125
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2125 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2125 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2125 |
| Series | THHQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB2125 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2125-R |
| Series | THHQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHHQB2120
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2135
35A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2140
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the GE THHQB2125 is a 2-pole, 25-amp miniature circuit breaker. It features a compact one-inch per pole design with a heat-resistant thermoset case for structural rigidity. This unit bolts securely into GE A-Series and ReliaGear panelboards. It accepts 14-8 AWG copper or 12-8 AWG aluminum wire via standard box lugs. Rated for 22kAIC at 120/240VAC, it includes an internal common trip and quick-make/quick-break mechanisms.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2125 |
| Series | THHQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the THHQB2125 breaker?
This bolt-on breaker is designed for use in GE A-Series and ABB ReliaGear lighting panelboards.
Can the THHQB2125 replace a standard THQB2125?
Yes. The THHQB2125 has a higher interrupting rating of 22kAIC compared to the 10kAIC of the standard THQB2125. It shares the same physical dimensions and bolt-on mounting, making it a suitable replacement where higher fault current protection is required.
What is the difference between GE THQB and THHQB circuit breakers?
The primary difference is the interrupting capacity. Standard THQB breakers are rated for 10kAIC at 120/240V, while the THHQB series features a higher interrupting rating of 22kAIC. Both share the same 1-inch per pole bolt-on form factor.
Is the THHQB2125 breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with compatible heating, air conditioning, and refrigeration equipment.
Does the THHQB2125 mount on a standard DIN rail?
No, this is a bolt-on circuit breaker. It is designed to bolt directly to the bus connections in compatible GE and ABB lighting panelboards and will not fit on a DIN rail or in a standard plug-on load center.
