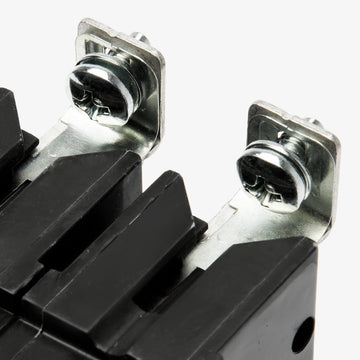

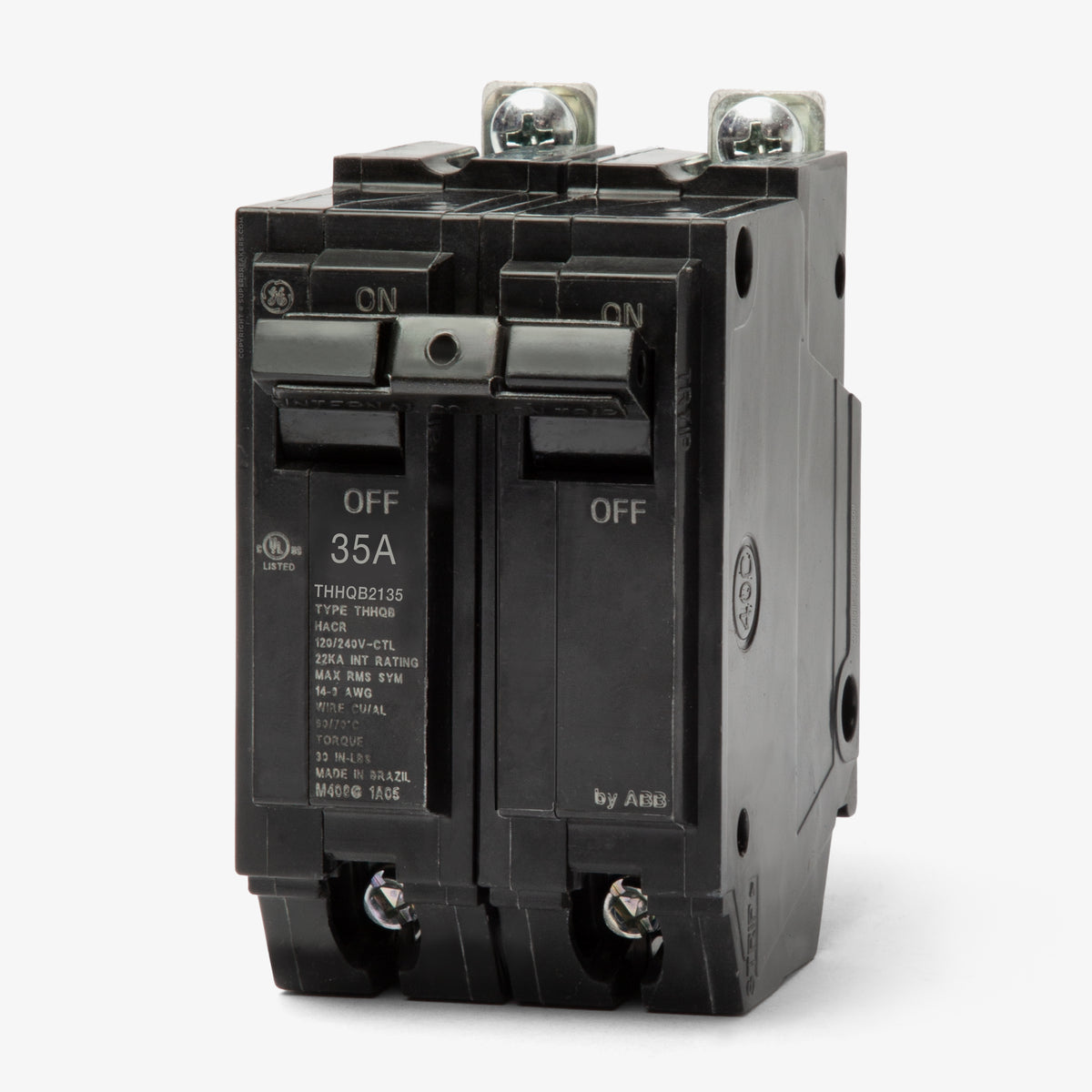

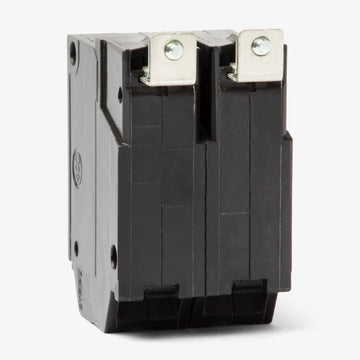

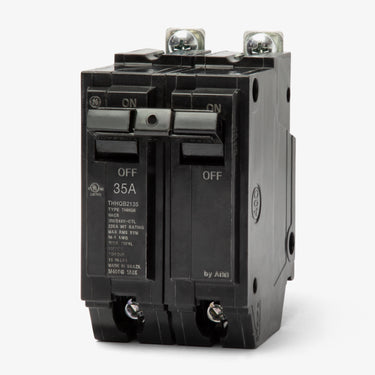

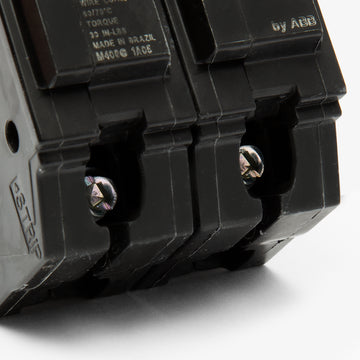

ABB / General Electric THHQB2135 Miniature Circuit Breaker
- 35A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2135
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2135
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2135 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2135 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2135 |
| Series | THHQB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB2135 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2135-R |
| Series | THHQB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHHQB2130
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2145
45A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2125
25A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial environments, the GE THHQB2135 is a 35A, two-pole miniature circuit breaker. It operates on 120/240V systems to safeguard against overloads. This Q-Line breaker mounts into GE A-Series and ReliaGear panelboards. The bolt-on configuration provides a secure connection, ideal for applications where vibration is a concern. Delivering a 22kAIC rating, the unit includes a visual trip indicator and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2135 |
| Series | THHQB |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Reverse Feed, Quick-Make/Quick-Break, Internal Common Trip, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the THHQB2135 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series and ReliaGear panelboards.
Can I use the THHQB2135 to replace a standard THQB2135?
Yes. The THHQB2135 has the same physical dimensions and bolt-on mounting as the standard THQB2135, but offers a higher interrupting rating of 22kAIC compared to the 10kAIC rating of the THQB series.
Is the THHQB2135 circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the recommended lug tightening torque for the THHQB2135?
The required torque depends on the wire size used. For 8 AWG wire, torque to 40 in-lb. For 6 to 4 AWG wire, torque to 45 in-lb. For 3 AWG wire, torque to 50 in-lb.
Can I use aluminum wire with the THHQB2135?
Yes, the box lugs on this breaker are rated for both copper and aluminum conductors ranging from 8 AWG to 3 AWG.
