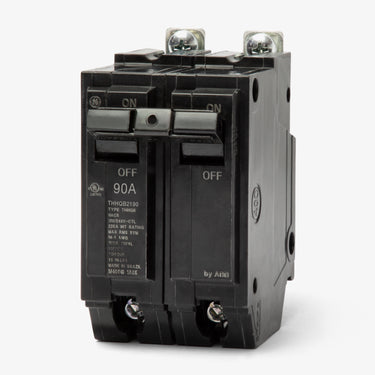

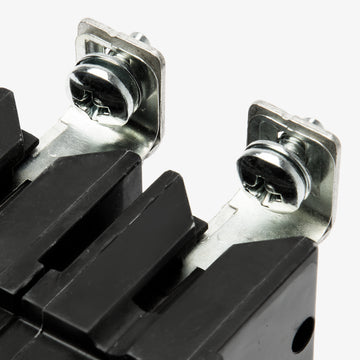

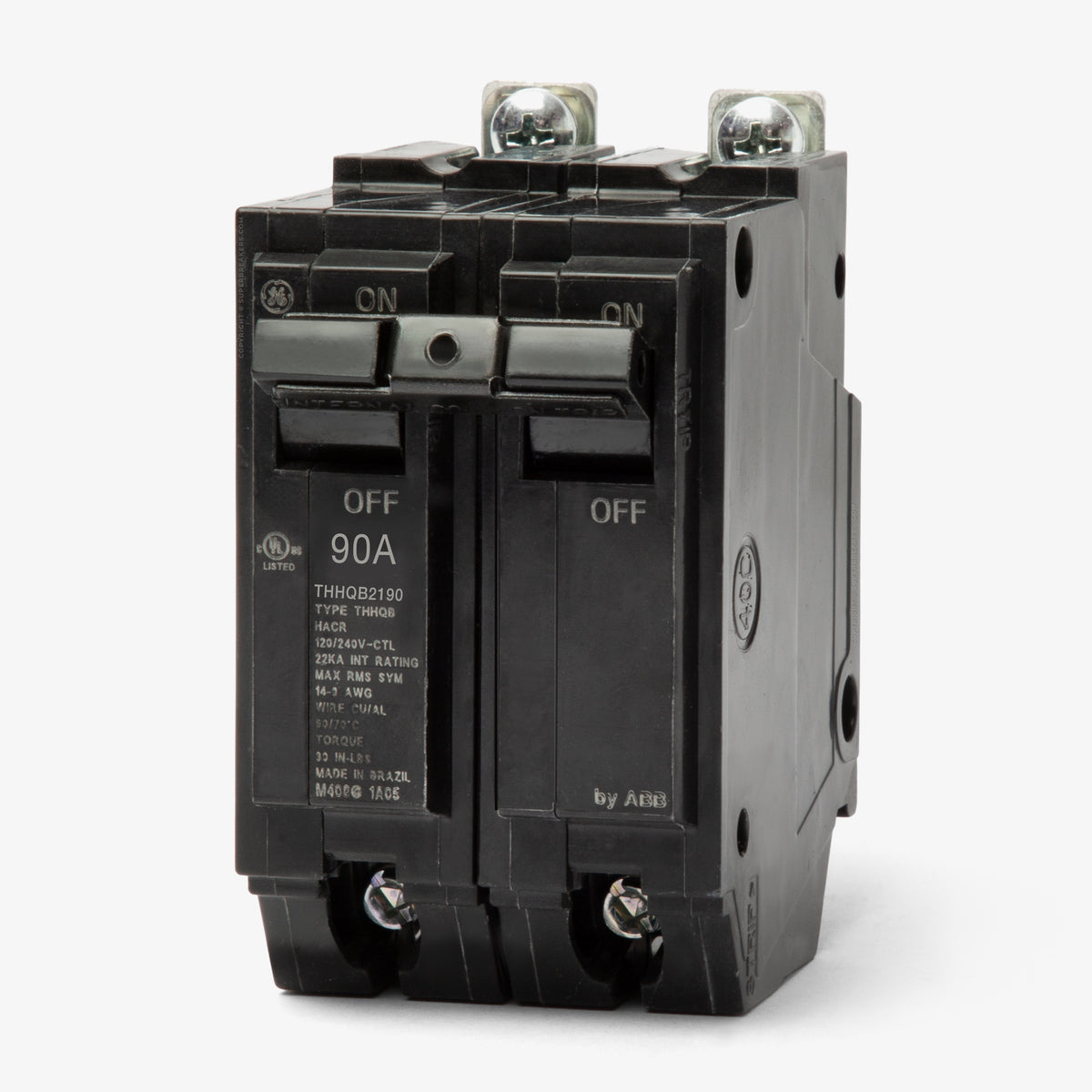

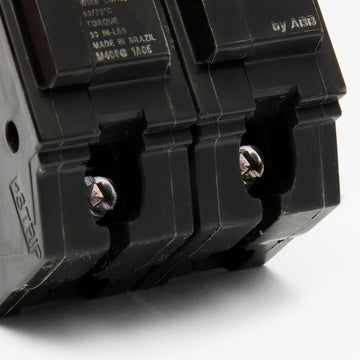

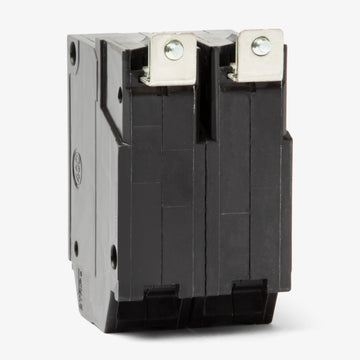

ABB / General Electric THHQB2190 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2190
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2190
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2190 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB2190 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2190 |
| Series | THHQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB2190 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2190-R |
| Series | THHQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB2115
15A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL2090B
90A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, this 90A two-pole MCCB provides robust thermal-magnetic protection for commercial and industrial electrical systems. It features a quick-make, quick-break mechanism to ensure reliable operation under fault conditions. Designed for bolt-on installation, the unit fits seamlessly into GE A-Series and ReliaGear RQ panelboards. It accepts 6-1/0 AWG copper or 4-1/0 AWG aluminum conductors via standard box lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2190 |
| Series | THHQB |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear RQ Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the THHQB2190?
This bolt-on breaker is designed exclusively for use in GE A-Series and ABB ReliaGear RQ commercial panelboards.
Can I install the THHQB2190 in a standard GE residential load center?
No. The THHQB2190 is a bolt-on breaker intended for commercial panelboards. Standard GE residential load centers require plug-on breakers, such as the THQL or THHQL series.
What is the difference between the THQB2190 and the THHQB2190?
The primary difference is the interrupting capacity. The standard THQB2190 is rated for 10kAIC, whereas the THHQB2190 is a high-interrupting version rated for 22kAIC at 120/240VAC. Both are 2-pole, 90-amp bolt-on breakers that fit the same panelboards.
Is the THHQB2190 suitable for HVAC applications?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires a 90-amp, 2-pole overcurrent protection device.
What wire sizes are accepted by the THHQB2190 terminals?
The factory-installed box lugs accept 6 to 1/0 AWG copper conductors or 4 to 1/0 AWG aluminum conductors. Ensure the wire is sized appropriately for the 90-amp rating according to the National Electrical Code.
How much panel space does the THHQB2190 require?
This 2-pole Q-Line breaker requires two 1-inch spaces in the panelboard, taking up a total width of 2 inches.
Does the THHQB2190 include GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker. It provides standard overload and short-circuit protection but does not feature ground fault or arc fault circuitry.
