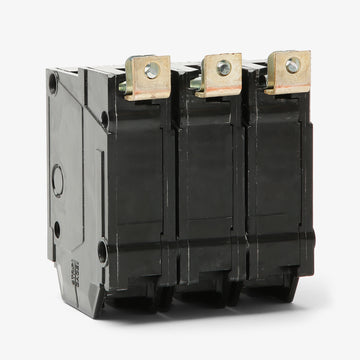

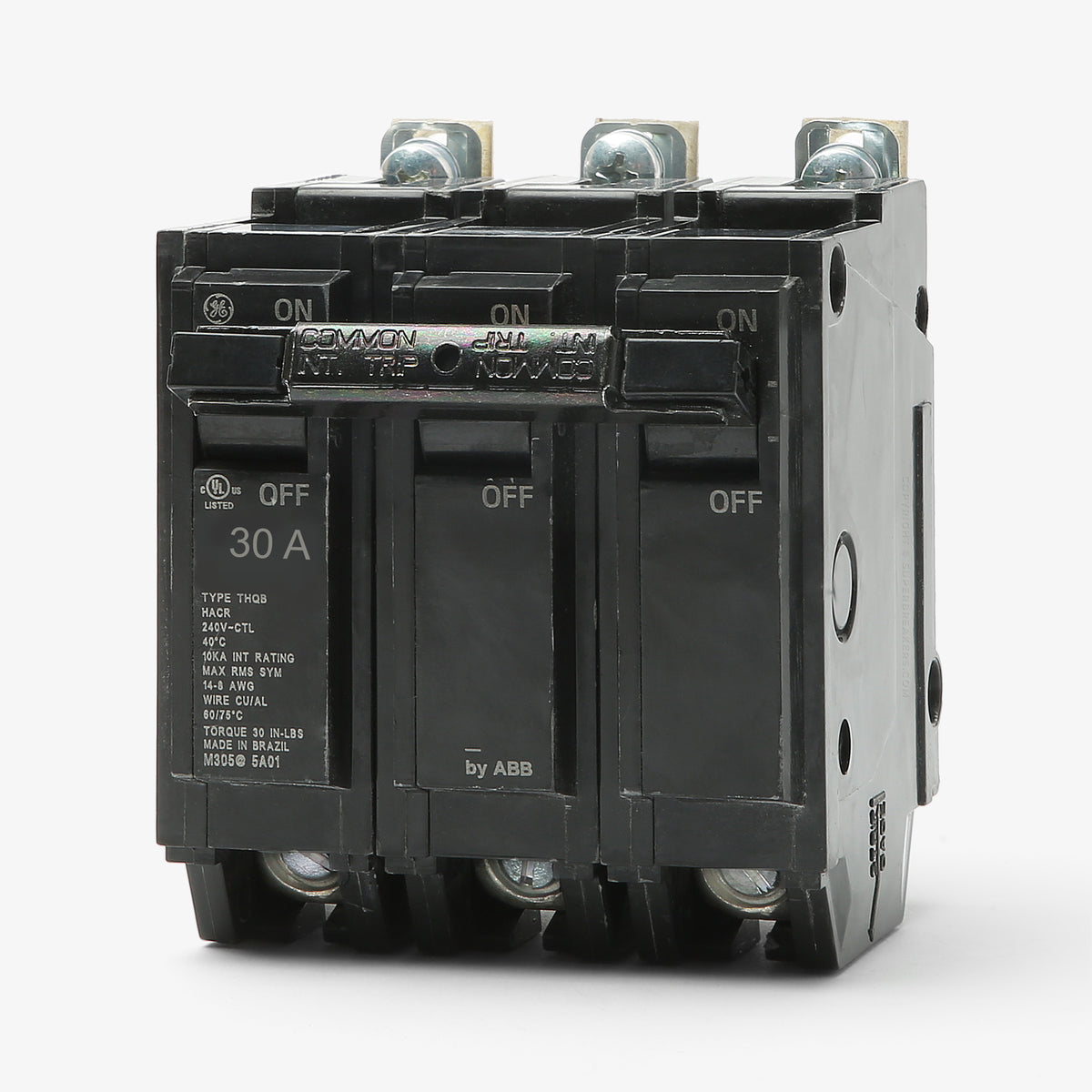

ABB / General Electric THHQB32030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32030
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32030 |
| Series | THHQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|

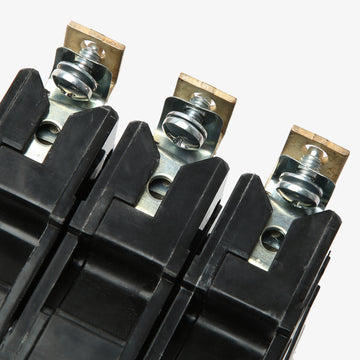

| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB32030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32030-R |
| Series | THHQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHHQB32040
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32020
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32045
45A 3 Pole Miniature Circuit Breaker
Description
Designed for robust electrical protection, the GE THHQB32030 is a 3-pole, 30-amp miniature circuit breaker suitable for commercial and industrial facilities. It delivers reliable thermal-magnetic tripping with a 22kAIC interrupting capacity at 240VAC. This Q-Line breaker mounts into GE A-Series, AQ, and ReliaGear panelboards using a secure bolt-on connection that resists vibration. The unit features a quick-make/quick-break mechanism and an internal common trip for consistent performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32030 |
| Series | THHQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards accept the THHQB32030 circuit breaker?
This Q-Line bolt-on breaker mounts directly into commercial grade GE A-Series panelboards, AQ panelboards, and ABB ReliaGear panelboards.
What is the difference between the THQB32030 and THHQB32030?
Both are 30A, 3-pole bolt-on breakers with the exact same physical dimensions. The difference is their maximum short-circuit interrupting capacity. The THQB series is rated for 10kAIC, while the THHQB series is built for a higher 22kAIC fault current.
Is the THHQB32030 breaker HACR rated?
Yes, this model carries a Heating, Air Conditioning, and Refrigeration (HACR) rating, meaning it is certified to safely protect dedicated HVAC circuits and motor loads.
How does the THHQB32030 connect to the electrical panel?

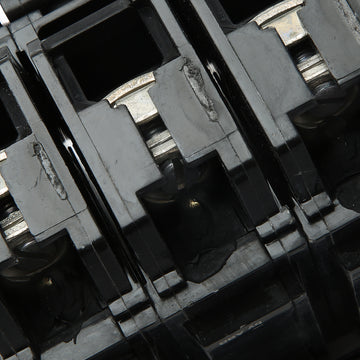

It features a direct bolt-on mounting style. The breaker terminals are mechanically bolted to the panel busbar rather than snapped onto a rail, which prevents accidental disconnection from vibration in commercial and industrial environments.
Can I install this breaker on a 208Y/120V three-phase system?
Yes. The breaker is rated for a maximum of 240VAC, which fully supports installations on both 240V delta and 208Y/120V wye three-phase systems.
Why might my THHQB32030 breaker have an ABB logo instead of GE?
ABB acquired GE Industrial Solutions. As a result of this transition, Q-Line breakers may feature ABB branding, General Electric branding, or a combination of both. The internal components, physical footprint, and UL listings remain completely identical.
What type of trip unit is inside the THHQB32030?
It contains a fixed thermal-magnetic trip unit. The thermal component provides a long-time delay protection curve against sustained overloads, while the magnetic component provides instantaneous trip protection against short circuits.
