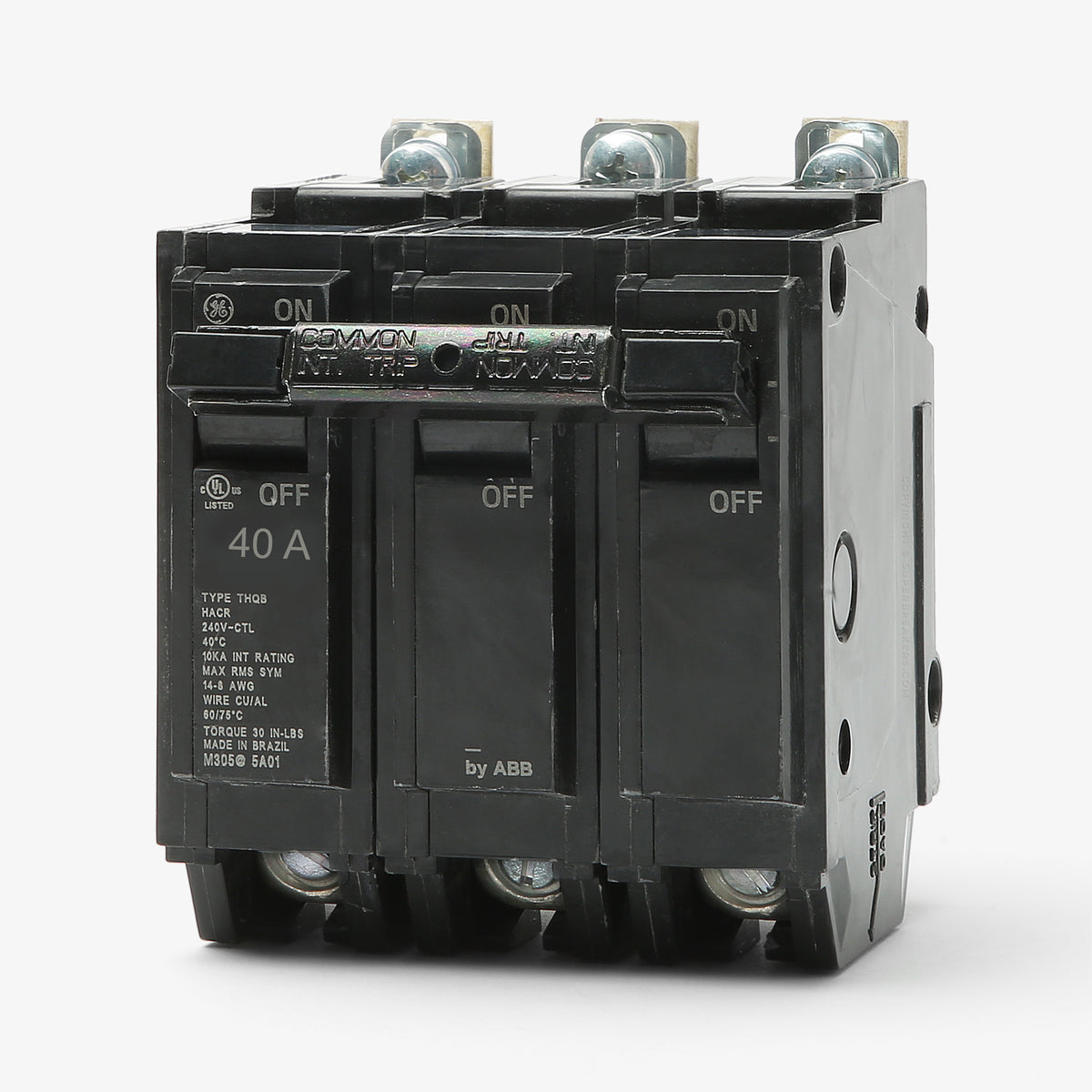

ABB / General Electric THHQB32040 Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32040
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32040 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32040 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32040 |
| Series | THHQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed, High Interrupting Capacity |
Sold out
Quantity
ABB / General Electric THHQB32040 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32040-R |
| Series | THHQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHHQB32050
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32030
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32025
25A 3 Pole Miniature Circuit Breaker
Description
Designed for demanding commercial environments, the GE THHQB32040 offers dependable overcurrent protection. This 40-amp, 3-pole thermal-magnetic device utilizes fixed long-time and instantaneous trip functions to safeguard three-phase electrical distribution systems. The breaker utilizes a bolt-on mounting style for secure integration into GE A-Series panelboards and AQ lighting panels. With a 22kAIC rating at 240V, this Q-Line unit features an internal common trip and is fully HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32040 |
| Series | THHQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed, High Interrupting Capacity |
Product FAQs
4 answersWhich GE panelboards accept the THHQB32040 circuit breaker?
The THHQB32040 is a bolt-on breaker designed specifically for installation in GE A-Series panelboards and GE AQ lighting panels.
Can I use the THHQB32040 to replace a standard THQB32040 breaker?
Yes. The THHQB32040 shares the same physical dimensions and bolt-on mounting as the THQB32040, but offers a higher interrupting rating of 22kAIC compared to the standard 10kAIC. It is a direct upgrade for systems requiring higher fault current protection.
What are the acceptable wire sizes for the THHQB32040 terminals?

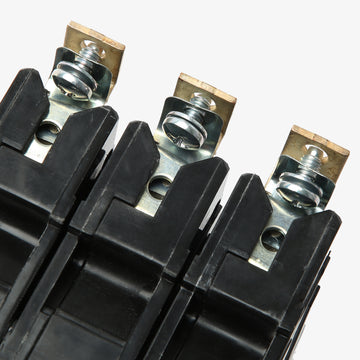

The box lug terminals on this breaker are rated to accept 8 AWG through 3 AWG wire. They are compatible with both copper and aluminum conductors.
Is the GE THHQB32040 suitable for HVAC applications?
Yes, this circuit breaker is HACR rated, meaning it is certified for safe use with heating, air conditioning, and refrigeration equipment.
