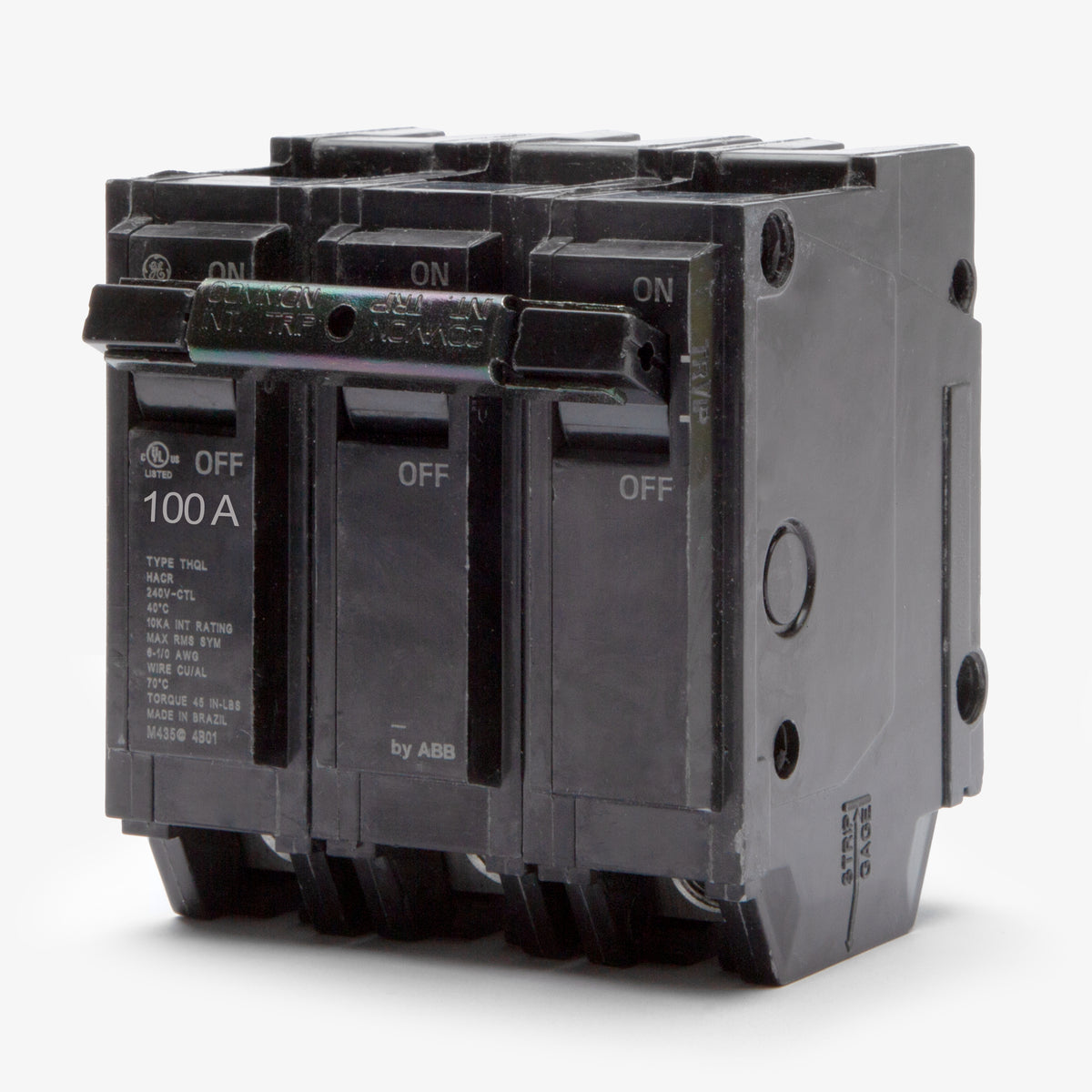

ABB / General Electric THHQL32100 Miniature Circuit Breaker
- 100A
- 3 Pole
- Plug-On
ABB / General Electric
THHQL32100
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQL32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQL32100 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHHQL32070
70A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQL32060
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQL32040
40A 3 Pole Miniature Circuit Breaker
Description
Handling up to 100 amps, this Q-Line miniature breaker provides essential overcurrent safety for industrial and commercial facilities. The thermal-magnetic trip unit includes quick-make/quick-break functionality to minimize arcing. Compatibility includes three-phase GE PowerMark Gold load centers, ABB ReliaHome enclosures, and A-Series panelboards. The plug-on mounting style allows for rapid deployment in compatible chassis.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQL32100 |
| Series | THHQL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (3-Phase), GE A-Series Panelboards, ABB ReliaHome Load Centers (3-Phase) |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, High Interrupting Capacity |
Product FAQs
5 answersWhich load centers and panelboards accept the THHQL32100 breaker?
This plug-on breaker is compatible with 3-phase GE PowerMark Gold load centers, ABB ReliaHome load centers, GE A-Series panelboards, and GE AQ lighting panels.
What is the difference between GE THQL and THHQL circuit breakers?
Both series share the same 1-inch-per-pole Q-Line frame and plug-on mounting, but they differ in interrupting capacity. THQL breakers are standard-rated at 10kAIC, while THHQL breakers feature a high-interrupting capacity of 22kAIC at 240VAC.
What wire gauges are compatible with the terminals on the THHQL32100?
The box lugs on this 100A breaker accept 6 AWG to 1/0 AWG copper conductors, or 4 AWG to 1/0 AWG aluminum conductors.
Are ABB and GE THHQL32100 breakers the exact same product?
Yes. Following ABB's acquisition of GE Industrial Solutions, Q-Line breakers are manufactured under both the GE and ABB brands. They are identical in form, fit, and function, and are fully interchangeable in UL-listed applications.
What trip functions are included in the THHQL32100 thermal-magnetic breaker?
This breaker features fixed Long-Time (L) and Instantaneous (I) trip functions. The thermal mechanism provides delayed tripping for sustained overloads, while the magnetic mechanism ensures immediate tripping during short-circuit faults.
