ABB / General Electric THLC134030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC134030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC134030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

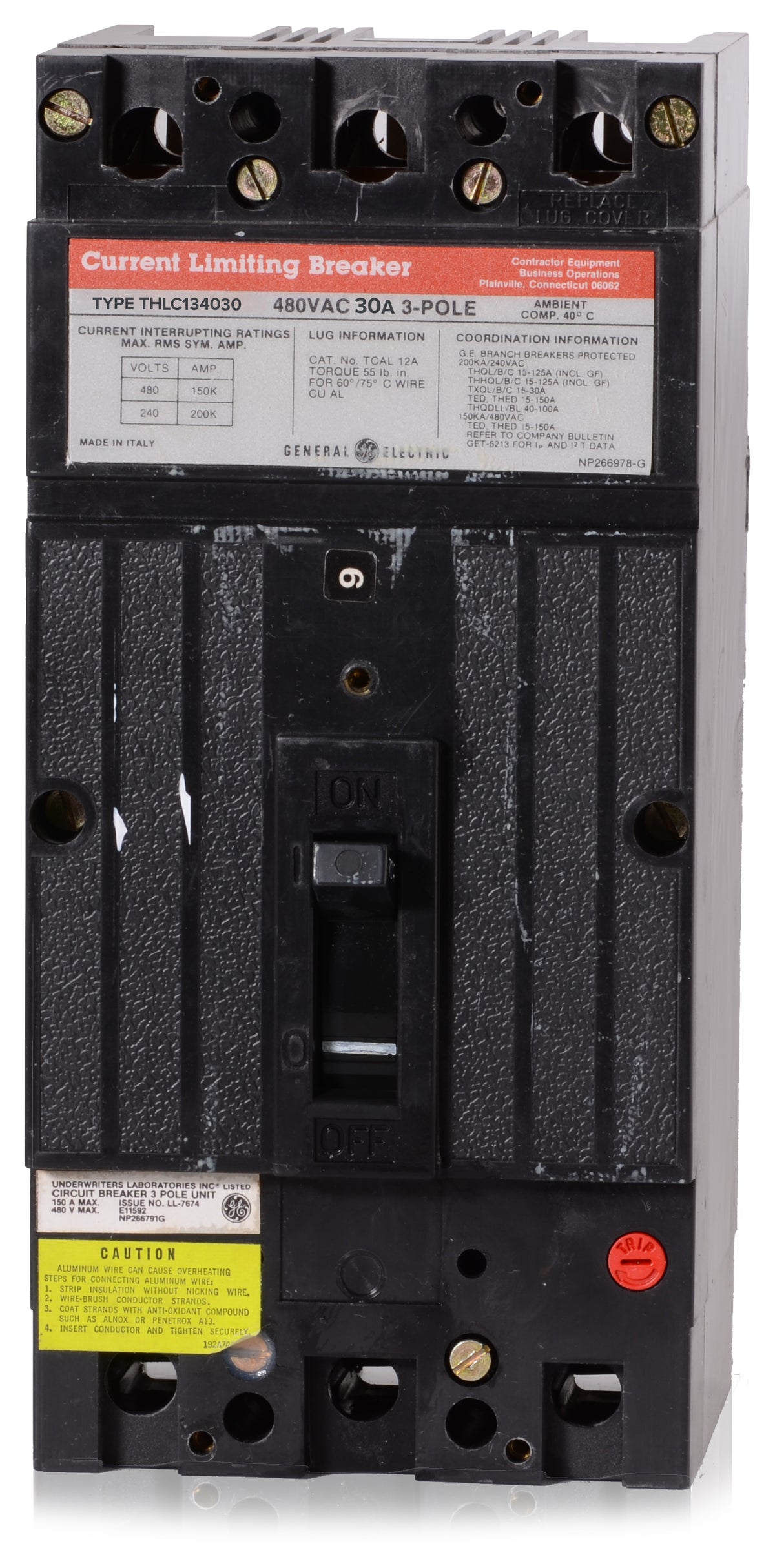

ABB / General Electric THLC134030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHLC134015
15A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134050
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC136080
80A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power systems, the GE THLC134030 is a 3-pole, 30A current-limiting molded case circuit breaker. It utilizes a fixed thermal-magnetic trip unit to deliver consistent long-time and instantaneous protection. Designed for bolt-on installation, it mounts into GE A-Series panelboards, switchboards, and motor control centers. The unit includes load lugs accommodating 14-3 AWG copper wire. With a 200kAIC rating at 480VAC, it effectively protects downstream electrical equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134030-R |
| Series | THLC |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Frame Type | THLC1 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kit |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
| Special Features | Current Limiting |
Product FAQs
5 answersWhich panelboards are compatible with the THLC134030 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards, as well as compatible GE switchboards and motor control centers.
What wire sizes are accepted by the lugs on the THLC134030?
The factory lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire. Ensure proper torque specifications are followed during installation to maintain a secure connection.
How does the current limiting feature of the THLC134030 operate?
As a current limiting breaker, it is designed to clear a fault in less than half a cycle. This rapid response reduces the peak let-through current and energy, providing enhanced protection for downstream equipment during high-fault conditions.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, the THLC134030 may be branded as either GE or ABB, but the physical breaker, specifications, and panel compatibility remain identical.
What type of protection does the fixed thermal magnetic trip unit provide?
The trip unit includes long-time and instantaneous (LI) functions. The thermal component provides delayed tripping for sustained overloads, while the magnetic component trips instantaneously to clear severe short circuits.
