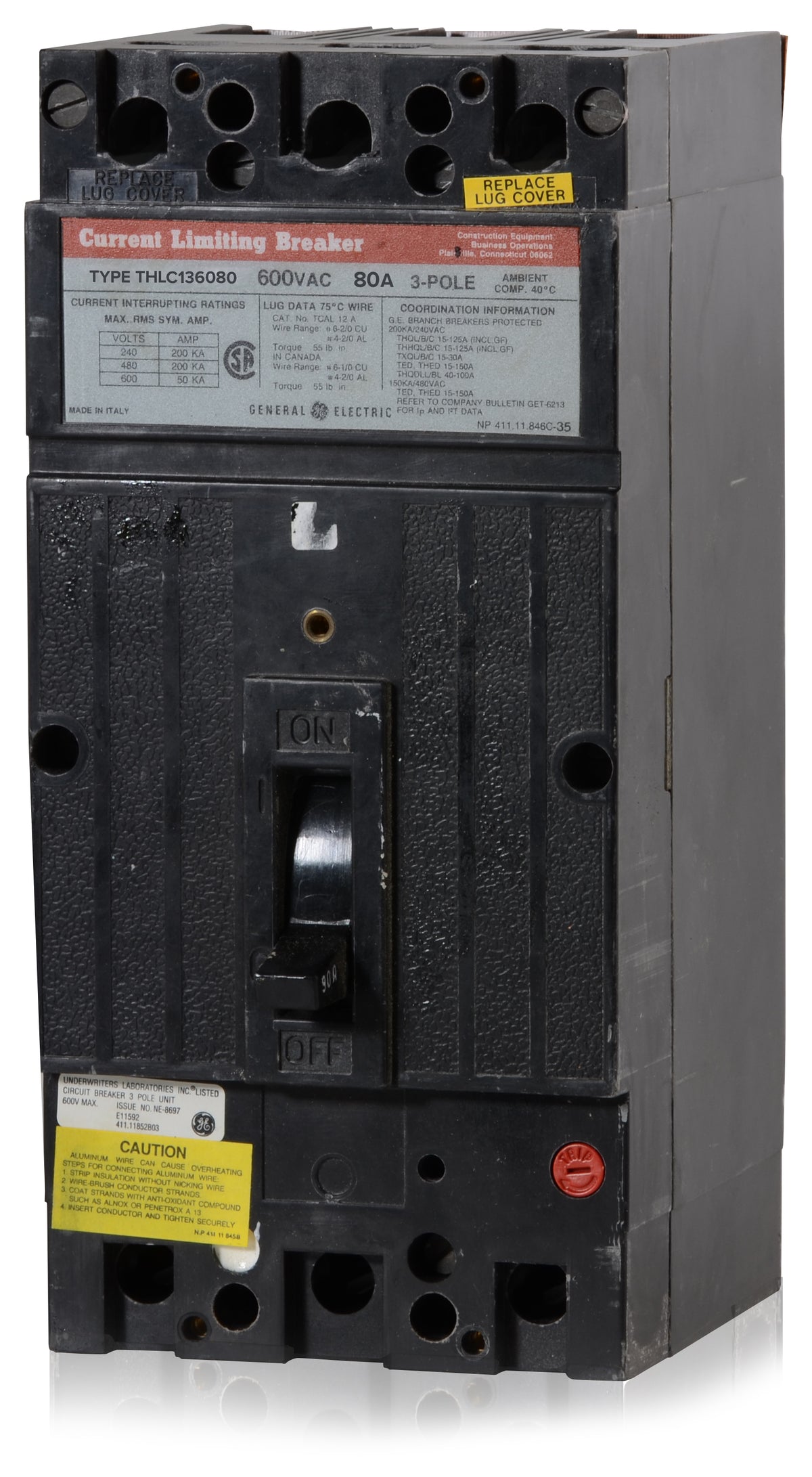

ABB / General Electric THLC136080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC136080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC136080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

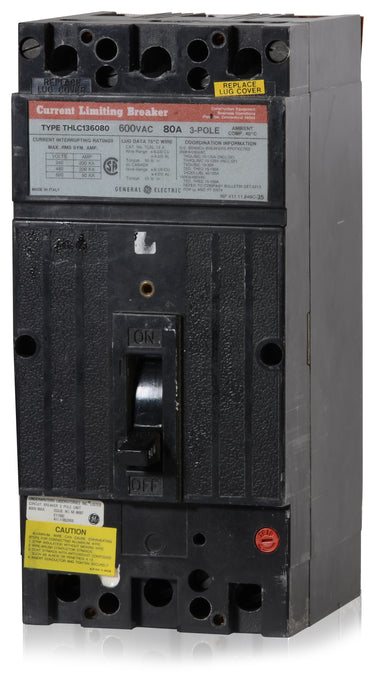

ABB / General Electric THLC136080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

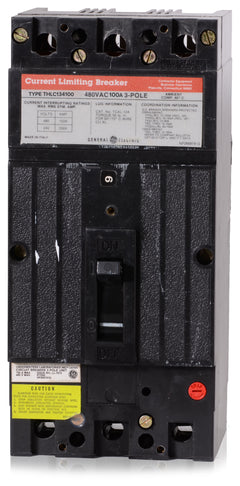

ABB / General ElectricTHLC134100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134050
50A 3 Pole Molded Case Circuit Breaker

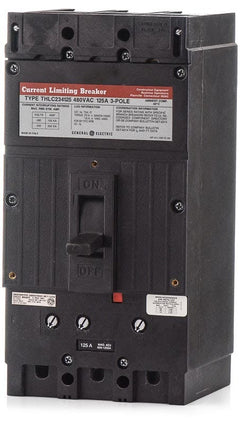

ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, this 80-amp current-limiting molded case circuit breaker is built for demanding commercial and industrial applications. It features a bolt-on mounting style designed specifically for GE A-Series panelboards, Spectra panelboards, switchboards, and motor control centers. Delivering an exceptional 200kAIC interrupting capacity at 480VAC, the breaker utilizes thermal-magnetic trip technology to rapidly clear severe faults and protect downstream electrical equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC136080 |
| Series | THLC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 50kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu), 4 AWG - 1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip |
| Special Features | Current Limiting |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the THLC136080?
This bolt-on circuit breaker is designed for use in GE A-Series panelboards, GE Spectra panelboards, switchboards, and motor control centers. Verify specific enclosure compatibility and busbar configurations before installation.
How does the current limiting feature of this breaker benefit the electrical system?
As a current limiting breaker, it is designed to clear short circuits in less than a half-cycle. This significantly reduces the peak let-through current and energy, providing enhanced protection for downstream components and allowing for its high 200kAIC rating at 480VAC.
What are the wire size requirements for the terminal lugs on this breaker?
The factory-installed lugs accept 6 AWG to 1/0 AWG copper wire, or 4 AWG to 1/0 AWG aluminum wire. Ensure conductors are properly torqued according to the label on the breaker to maintain a secure and compliant connection.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the exact date of manufacture, the THLC136080 may feature either GE or ABB branding, but the physical dimensions, ratings, and UL listings remain identical.
What type of trip unit is installed in the THLC136080?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) functions. This provides standard overload protection (thermal) and immediate short-circuit protection (magnetic) without requiring field adjustments.
