ABB / General Electric THLC134090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
ABB / General Electric
THLC134090
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THLC134090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

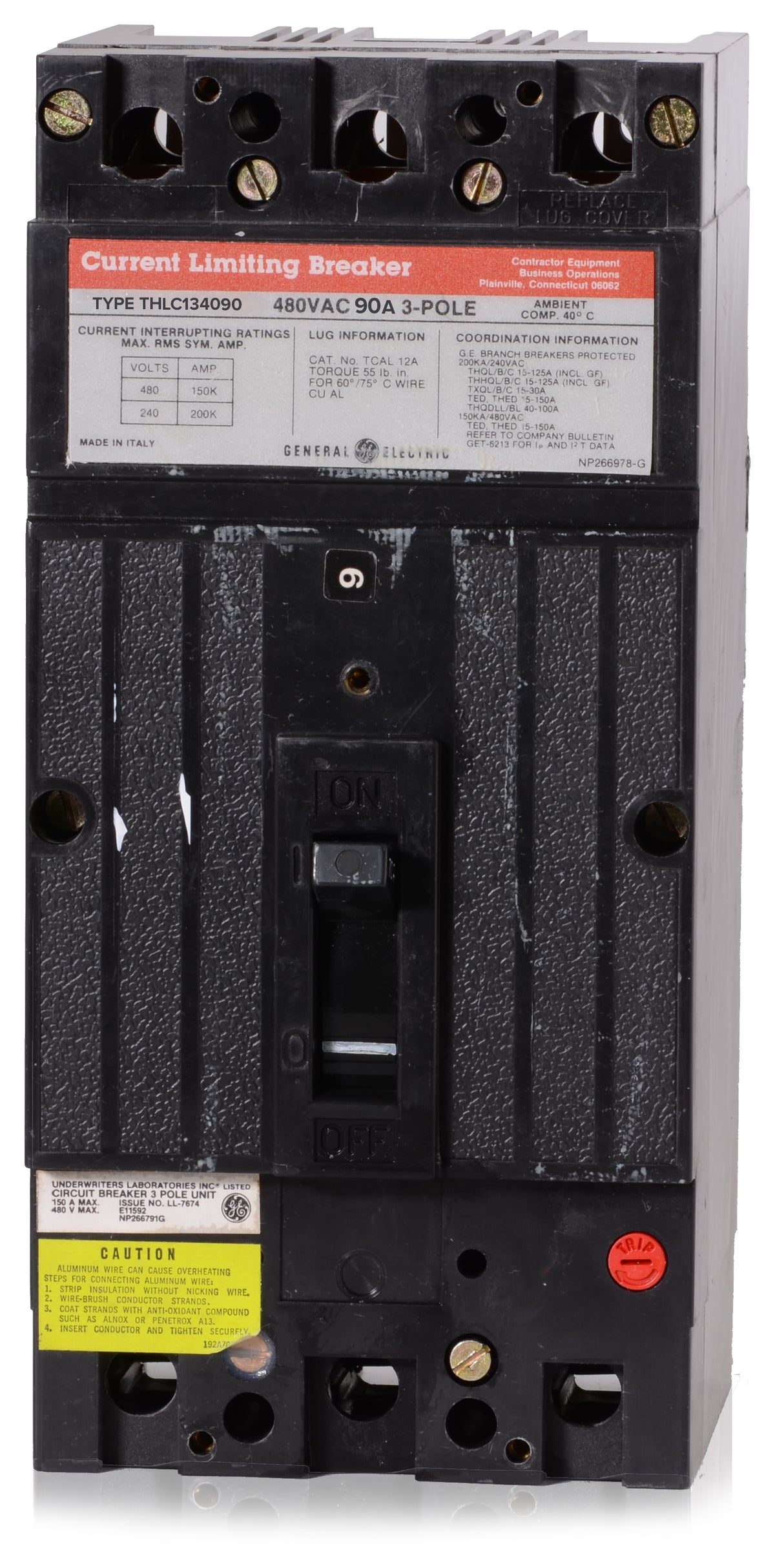

ABB / General Electric THLC134090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTHLC136080
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC234125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHLC134050
50A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, this 90A current-limiting molded case circuit breaker is built for demanding industrial applications. The 3-pole device features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection. Designed for secure bolt-on installation, it mounts into GE A-Series panelboards, switchboards, and motor control centers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THLC134090-R |
| Series | THLC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC |
| Frame Type | THLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 6 AWG - 2/0 AWG (Cu), 4 AWG - 2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Mounting Hardware, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL12A) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, High Interrupting Capacity, HACR Rated, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
| Special Features | Current Limiting |
