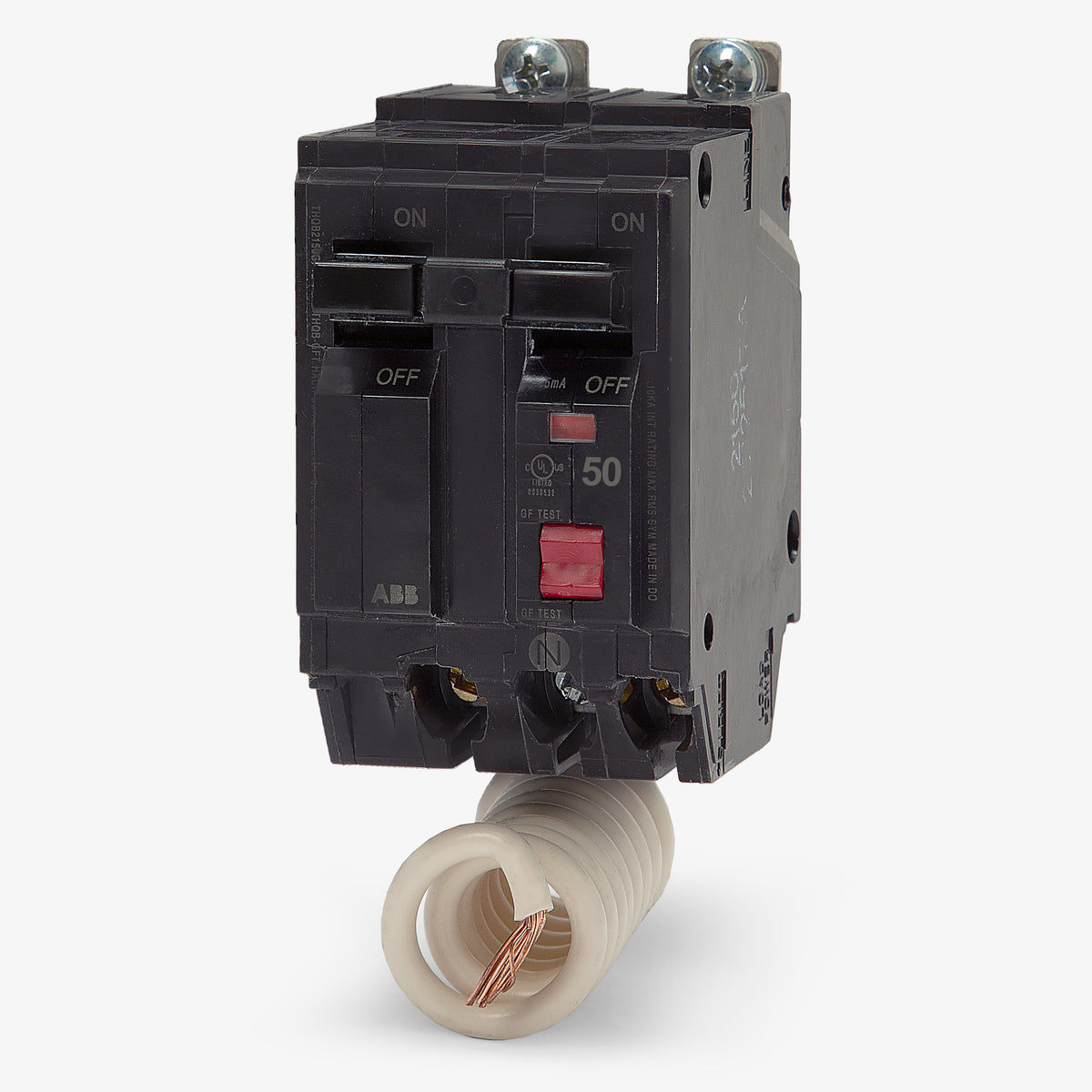

ABB / General Electric THQB2150GFT2 GFCI Miniature Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2150GFT2
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2150GFT2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2150GFT2 - 50A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2130GF
30A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFT
30A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2120GFT
20A GFCI Miniature Circuit Breaker
Description
Built to meet stringent safety standards, the GE THQB2150GFT2 provides reliable ground fault and overcurrent protection. This 50A, 2-pole GFCI breaker is ideal for residential, commercial, and industrial environments requiring wet or damp location safety. Designed as a direct replacement for the legacy THQB2150GF, it bolts securely into GE A-Series panelboards and AQ lighting panels. Rated for 10kAIC at 120/240VAC, the unit features a non-interchangeable thermal-magnetic trip and HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Self-Test Ground Fault Module |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Self-Test |
Product FAQs
6 answersDoes this breaker provide personnel or equipment ground fault protection?
The THQB2150GFT2 is a Class A GFCI device with a 5mA trip sensitivity [1.2.1]. It is designed to provide personnel protection in applications requiring ground fault safety, unlike equipment protection breakers that typically have a 30mA threshold.

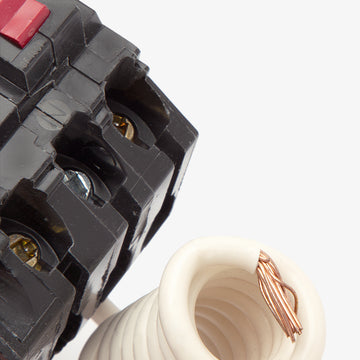

How does the pigtail neutral function on this breaker?
The pre-attached pigtail wire must be connected to the neutral bus bar inside the panelboard. This connection provides the necessary return path reference for the internal circuitry to accurately monitor the load for ground fault leakage.
Can this bolt-on breaker be installed in standard GE residential load centers?
No. The THQB2150GFT2 features a bolt-on mounting configuration designed exclusively for commercial GE A-Series panelboards and AQ lighting panels. It cannot be installed in GE PowerMark Gold or similar residential plug-on load centers, which require THQL plug-on breakers.
Is this the correct replacement for the older THQB2150GF?
Yes. The THQB2150GFT2 serves as the direct replacement for the legacy GE THQB2150GF catalog number. It provides the exact same physical dimensions, bolt-on form factor, and Class A ground fault safety ratings.
Why is the brand listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Q-Line miniature circuit breakers, including the THQB series, are now manufactured by ABB. They retain the original GE catalog numbers and form factors to ensure full backward compatibility with existing GE electrical panels.
Does this model include combination arc fault (CAFCI) protection?
No. This unit provides thermal magnetic overcurrent protection along with Class A ground fault detection. It does not include combination arc fault (CAFCI) protection circuitry.
