ABB / General ElectricTHQB2130GFT
Free Shipping Over $99

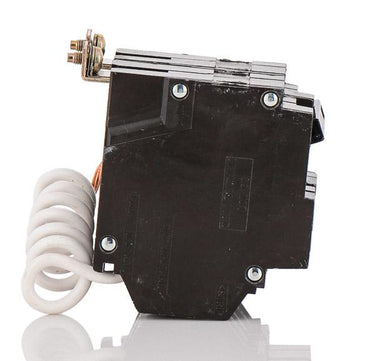

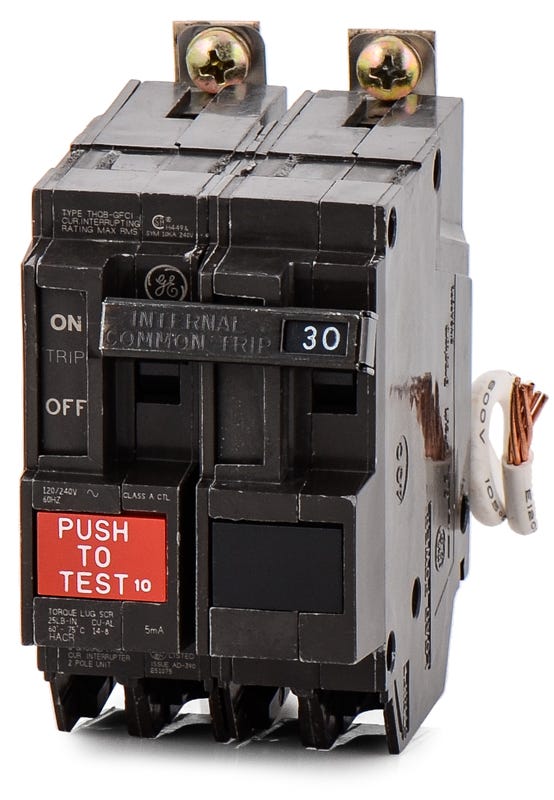

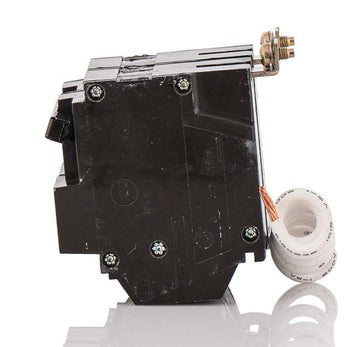

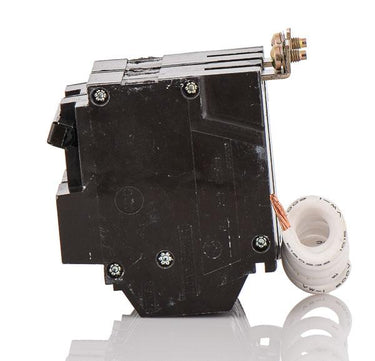

ABB / General Electric THQB2130GF GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2130GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130GF |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Internal Common Trip |
Sold out
Quantity
ABB / General Electric THQB2130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130GF-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Internal Common Trip |
Similar Items
ABB / General ElectricTHQB2140GFT2
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2120GF
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2120GFT
20A GFCI Miniature Circuit Breaker
Description
Built to mitigate electrical shock risks, this 30A two-pole GFCI breaker monitors circuits for 5mA ground faults. It integrates seamlessly into GE A-Series and AQ lighting panelboards via a sturdy bolt-on connection. Featuring quick-make/quick-break contacts and a non-interchangeable trip, this HACR-rated unit provides dependable commercial and industrial circuit protection. (THQB2130GFT WILL BE SENT FOR NOW OBSOLETE THQB2130GF)
Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130GF |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Internal Common Trip |
Product FAQs
6 answersAre THQB and THQL circuit breakers interchangeable?
No. THQB breakers feature a bolt-on connection designed for commercial A-Series and AQ lighting panels. THQL breakers utilize a plug-in connection designed for residential PowerMark load centers. The mounting hardware is entirely different.
What class of ground fault protection does the THQB2130GF offer?
This unit provides Class A ground fault protection. It is designed to trip when it detects a ground fault current of 5mA, providing life safety and personnel protection. This is distinct from GFEP models, which have a 30mA equipment protection threshold.
Does this GFCI breaker require a neutral connection to the panel?

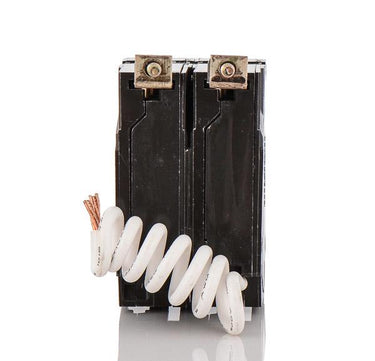

Yes. The breaker is equipped with a coiled neutral pigtail that must be terminated at the panel neutral bus. Additionally, the load neutral from the circuit must be connected directly to the breaker load lug for the sensing circuitry to operate correctly.
Is the THQB2130GF interchangeable with the THQB2130GFT?
Yes. The THQB2130GFT is the direct, updated replacement for the THQB2130GF. The T suffix indicates the addition of an internal self-test feature to meet newer UL standards, but the physical dimensions, bolting mechanism, and electrical ratings are identical.
Why might this GE circuit breaker arrive with ABB branding?
ABB acquired the GE Industrial Solutions division. As a result, newly manufactured inventory will carry the ABB name and logo, while older stock may still carry the General Electric branding. Both are identical in form, fit, and function.
Is the THQB2130GF suitable for use with HVAC equipment?
Yes. This breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires specialized motor group protection.
