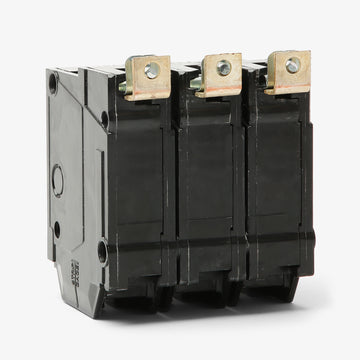

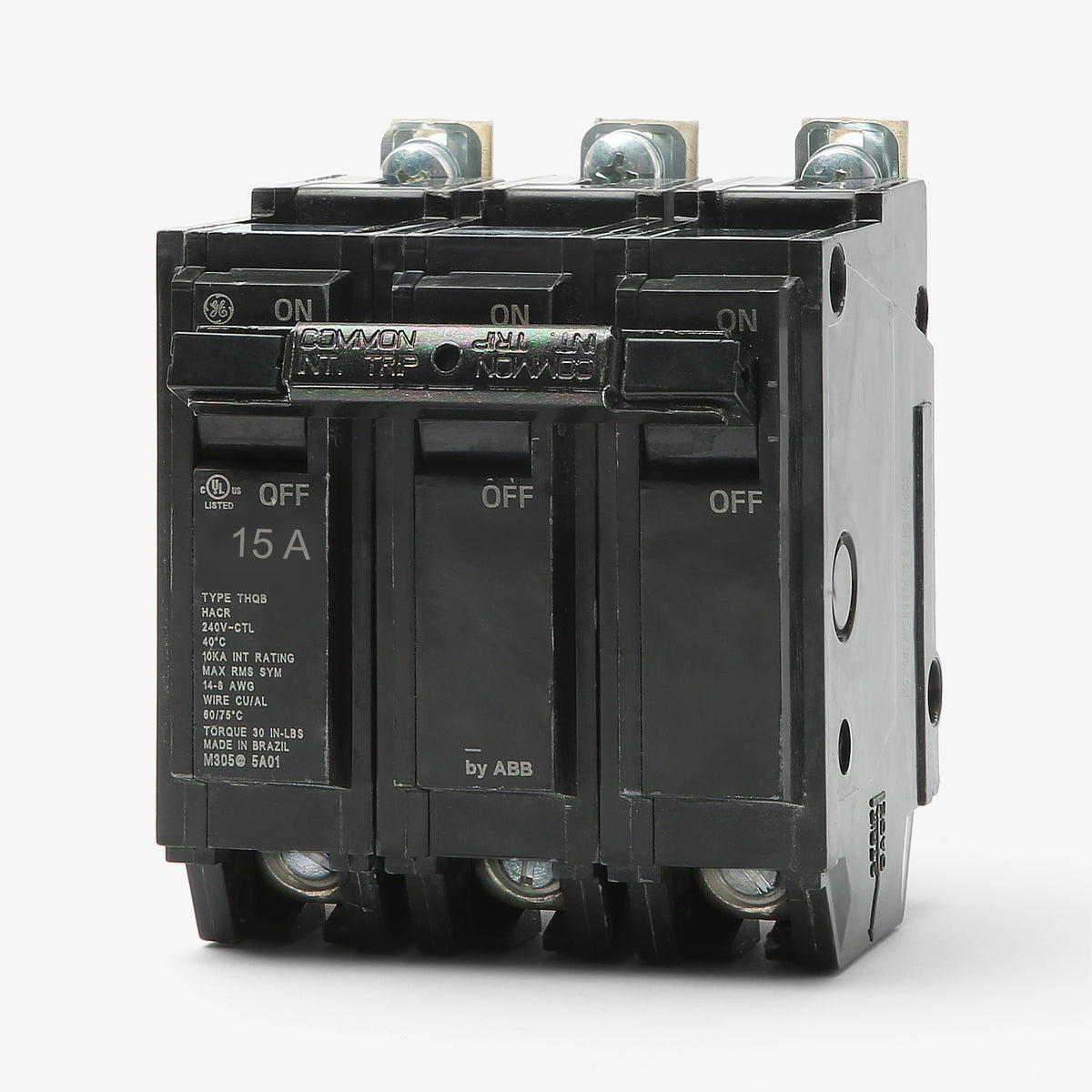

ABB / General Electric THQB32015 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32015
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32015 |
| Series | THQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32015 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32015-R |
| Series | THQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32020ST1
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32025
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32030
30A 3 Pole Miniature Circuit Breaker
Description
Built for commercial power distribution, this 15A, three-pole miniature circuit breaker provides robust overcurrent protection within the GE Q-Line series. The device installs into GE A-Series panelboards and AQ lighting panels using a secure bolt-on connection. Box lugs accommodate 14-8 AWG copper or 12-8 AWG aluminum wire. With a 10kAIC rating at 240VAC, it delivers fixed LI trip functions. The HACR-rated breaker includes an internal common trip and quick-make/quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32015 |
| Series | THQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
9 answersWhat is the difference between GE THQB and THQL circuit breakers?
THQB is a bolt-on circuit breaker designed for commercial A-Series panelboards and AQ lighting panels. THQL is a plug-in breaker intended for residential PowerMark load centers. Because they mount differently to the bus bar, they cannot be used interchangeably.
Which panelboards are compatible with the THQB32015?
This breaker is engineered specifically for bolt-on installation in GE A-Series panelboards and GE AQ lighting panels. It will not snap into standard residential load centers.
Can I use this THQB32015 breaker in a panel that requires THQP?
No. THQP breakers are half-inch plug-in devices designed for residential space-saving applications, whereas the THQB series features a one-inch per pole bolt-on design for commercial panels. They have completely different physical footprints and mounting methods.
Is there a difference between the ABB THQB32015 and the GE THQB32015?
No. ABB acquired GE Industrial Solutions, so the ABB-branded breaker is the exact same component as the General Electric-branded version. They share the same THQB frame, catalog number, dimensions, and UL listings.
Is the THQB32015 HACR rated for HVAC equipment?
Yes. Standard GE Q-Line circuit breakers between 15 and 100 amps, including this 3-pole 15A model, are UL listed as HACR type, making this breaker suitable for heating, air conditioning, and refrigeration applications.
Does this 3-pole breaker carry an SWD rating for switching fluorescent lighting?
No. While it carries an HACR rating, the SWD (Switching Duty) designation only applies to single-pole 15A and 20A 120/240Vac Q-Line circuit breakers.
What is the recommended torque for the box lugs on this THQB32015 breaker?
The terminal screws on a 15A Q-Line THQB breaker are typically torqued to 20 in-lbs. Always verify the exact torque specification printed directly on the breaker label before terminating your 14-8 AWG conductors.
Do I need a service barrier kit for this THQB breaker?
A service barrier kit is only required when a THQB breaker is used as a single service entrance main device to ensure isolation from live parts. For standard branch circuit installations in GE AQ lighting panels or A-Series panelboards, a barrier is not required.
Can I test this thermal-magnetic breaker using a high-pot or megger?
Standard field megger or high-potential (hi-pot) testing is generally not recommended with the breaker connected to the circuit, as it can damage sensitive equipment on the line. The breaker should be completely removed from the circuit before performing high-voltage insulation tests on the system.
