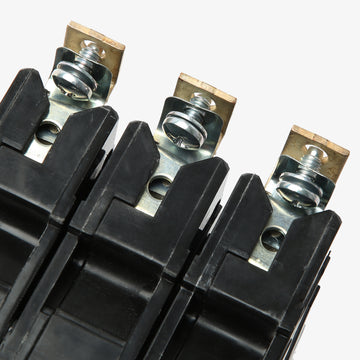

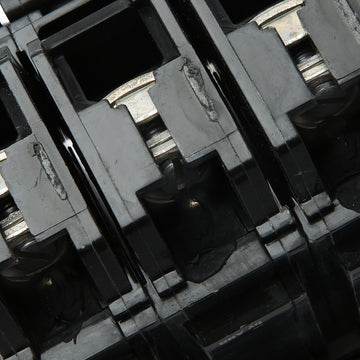

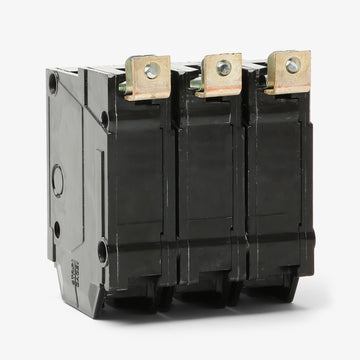

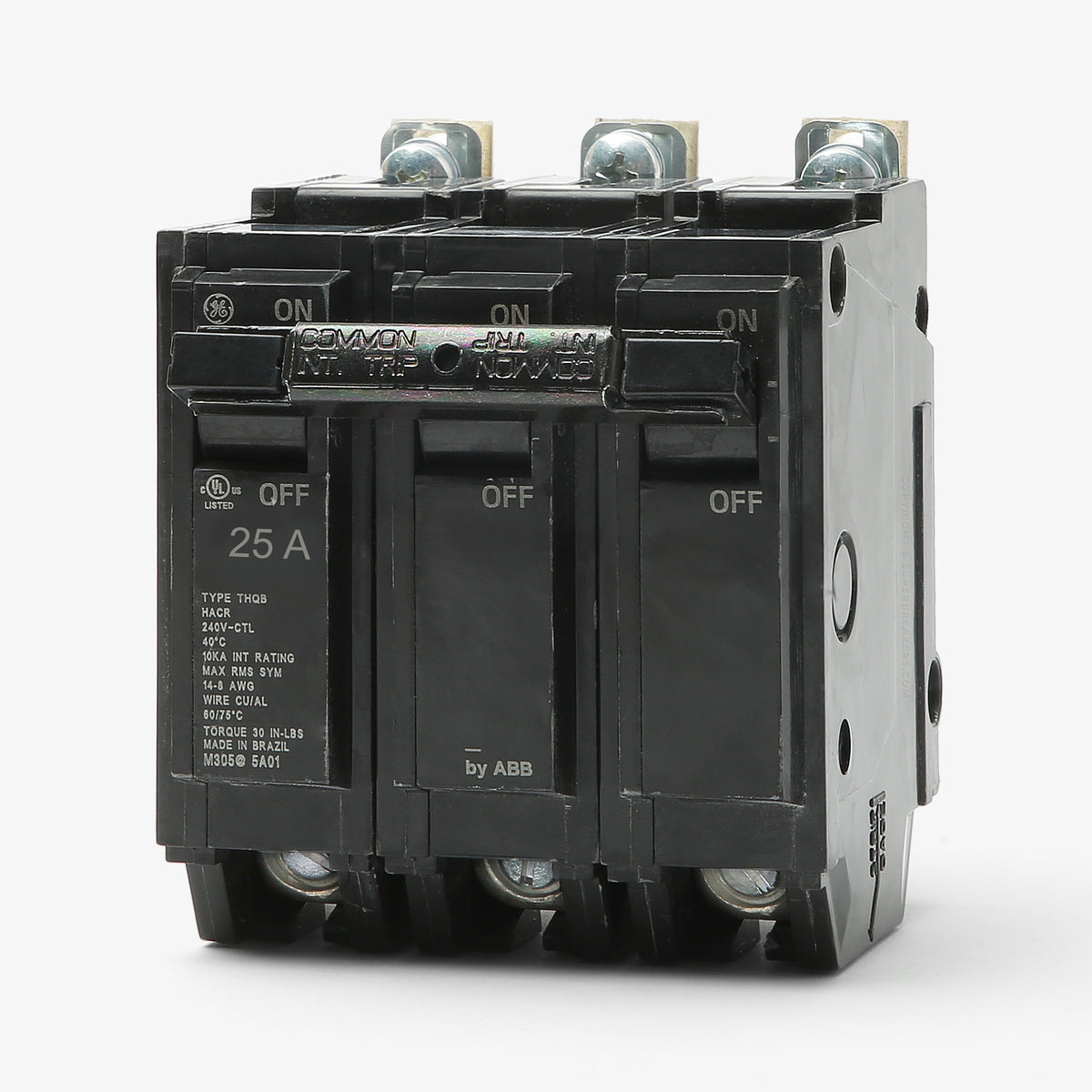

ABB / General Electric THQB32025 Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32025
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32025 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32025 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32025 |
| Series | THQB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32025 - 25A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32025-R |
| Series | THQB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32030ST1
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32020
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32020ST1
20A 3 Pole Miniature Circuit Breaker
Description
Engineered for reliable commercial power distribution, the GE THQB32025 is a 25A, 3-pole miniature circuit breaker from the Q-Line series. It utilizes thermal-magnetic technology to deliver precise long-time and instantaneous protection. This breaker mounts securely into GE A-Series panelboards and AQ lighting panels via a robust bolt-on connection. The box lug terminals accept 14-8 AWG copper wire. Rated at 10kAIC at 240VAC, it features an internal common trip and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32025 |
| Series | THQB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the THQB32025?
This breaker mounts directly into GE A-Series panelboards and GE AQ Lighting Panels. Because it utilizes a bolt-on connection, it will not fit in standard plug-on load centers.
What is the difference between GE THQB and THQL circuit breakers?
The primary difference is the mounting style. THQB breakers are bolt-on devices built for commercial A-Series and AQ panels. THQL breakers are plug-on units designed for residential load centers. They are not interchangeable.
Can an ABB THQB32025 replace an older General Electric THQB32025?
Yes. Following ABB's acquisition of GE Industrial Solutions, the breakers are manufactured to the same exact specifications. An ABB-branded breaker is a direct drop-in replacement for a legacy GE breaker with the same catalog number.
Is this circuit breaker approved for HVAC applications?
Yes, the THQB32025 is HACR rated. This means it is certified for safely protecting dedicated heating, air conditioning, and refrigeration equipment circuits.
Do the box lug terminals on this breaker accept aluminum wire?
Yes, the terminals are dual-rated for both copper and aluminum conductors. The accepted wire range is 14 to 8 AWG for copper and 12 to 8 AWG for aluminum.
Can the THQB32025 be back-fed in a panelboard?
Yes, this breaker is suitable for reverse-feed applications. Because it bolts directly to the panel bus, it inherently meets securement requirements for back-feeding without the need for a separate hold-down kit.
