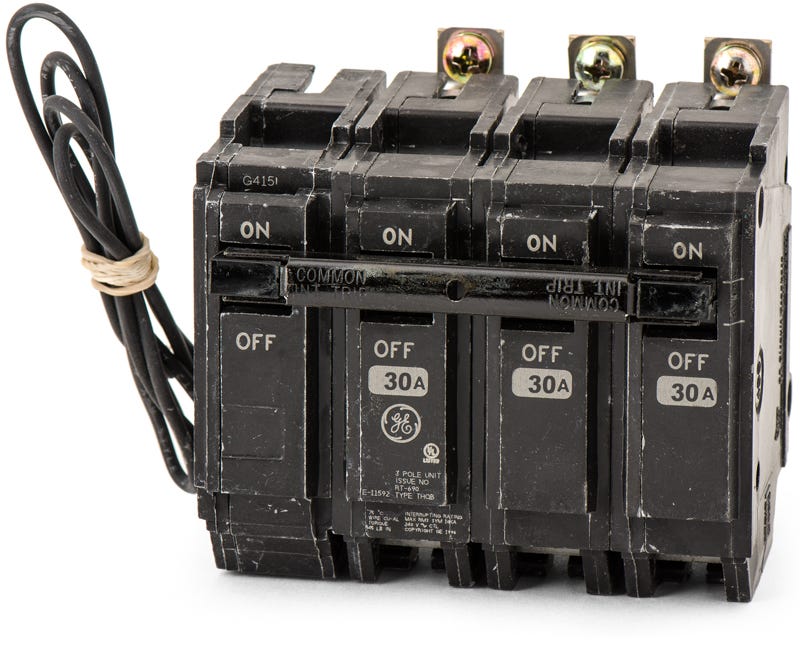

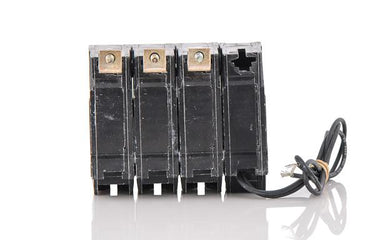

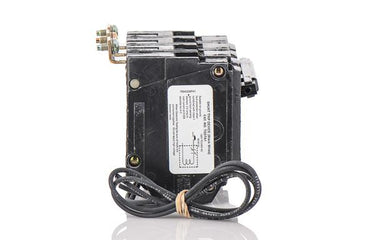

ABB / General Electric THQB32030ST1 Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32030ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32030ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32030ST1 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32030ST1 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB32030ST1 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030ST1-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB32040ST1
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32020ST1
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32045ST1
45A 3 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the GE THQB32030ST1 is a 3-pole miniature circuit breaker designed for commercial power distribution. It delivers 30 amps of reliable thermal-magnetic protection for branch circuits. This bolt-on breaker installs into GE A-Series panelboards and AQ lighting panels. It features box lug terminals that accept 14-8 AWG copper or 12-8 AWG aluminum wiring. Rated for 10kAIC at 240VAC, this model includes a factory-installed shunt trip for remote tripping applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32030ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the THQB32030ST1 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards and GE AQ lighting panels. It bolts directly to the bus connections in these load centers.
What does the ST1 suffix mean on this GE THQB breaker?
The ST1 suffix indicates that the breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely using a control switch or emergency stop button.
What size wire is required for the box lugs on this 30A breaker?
The terminal lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Ensure all connections are torqued to the manufacturer specifications during installation.
What type of trip mechanism does the THQB32030ST1 use?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to protect against overloads and short circuits.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Q-Line circuit breakers continue to be manufactured under the same THQB catalog numbers, so a new ABB breaker is a direct replacement for an older GE model with the same part number.
Can I use this breaker in a system requiring a 22kAIC rating?
No. The THQB32030ST1 has a maximum interrupting rating of 10kAIC at 240VAC. If your system requires a 22kAIC rating, you will need to source a THHQB series breaker instead.
