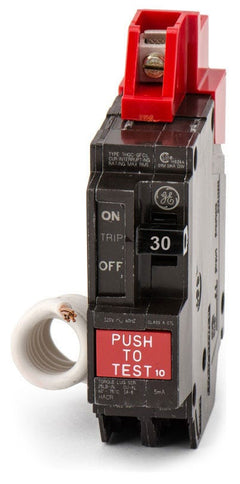

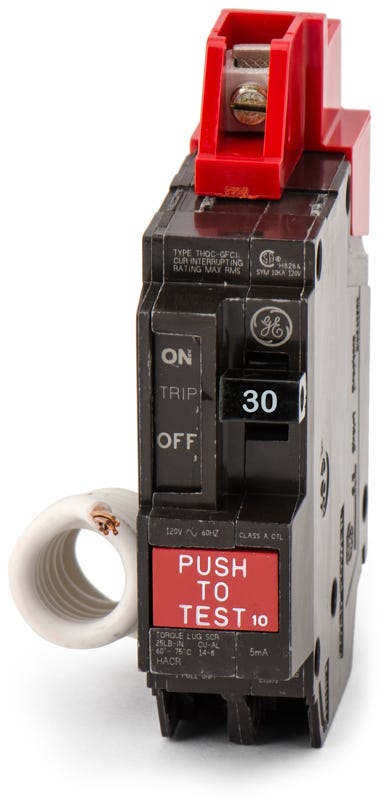

ABB / General Electric THQC1130GF GFCI Molded Case Circuit Breaker
- 30A
- 1 Pole
- DIN Rail
ABB / General Electric
THQC1130GF
GFCI Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC1130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC1130GF - 30A GFCI Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC1130GF - 30A GFCI Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130GF |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQC1130GF - 30A GFCI Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130GF-R |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC1120GF
20A GFCI Molded Case Circuit Breaker
ABB / General ElectricTHQC1120GFT
20A GFCI Molded Case Circuit Breaker
Description
Built for residential and commercial applications, the GE THQC1130GF delivers reliable 5mA ground fault protection. This 1-pole, 30A breaker features a thermal-magnetic trip mechanism and a 10kAIC rating at 120VAC to handle standard overcurrent events. Designed for versatility, it mounts onto 35mm DIN rails and fits seamlessly into OEM panels or custom enclosures. The unit includes line and load lugs for secure wire connections, ensuring code-compliant safety for wet or damp locations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC1130GF |
| Series | THQC |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
8 answersHow is the THQC1130GF circuit breaker mounted?
This breaker is designed to mount on a standard 35mm DIN rail. It is commonly used in OEM panels and custom control enclosures rather than standard residential load centers.
What level of ground fault protection does the THQC1130GF provide?
This GFCI breaker provides Class A 5mA ground fault protection for personnel. This level of protection is required by the NEC for wet or damp locations.
How is the neutral connection made on this breaker?
The THQC1130GF features a pigtail neutral wire that must be connected directly to the neutral bus bar in your panel or enclosure to ensure proper ground fault sensing.
Is the THQC1130GF interchangeable with THQL or THQB breakers?
No. While they are all part of the GE Q-Line family, they are designed for different panel types. The THQC1130GF mounts on a 35mm DIN rail for OEM applications, whereas THQL breakers are designed for standard GE residential load centers, and THQB breakers are bolt-on for commercial lighting panels.
Are the terminal lugs on the THQC1130GF rated for aluminum wire?
Yes. The lugs accept 12 to 8 AWG aluminum wire, as well as 14 to 8 AWG copper wire.
Will I receive an ABB or GE branded breaker when ordering the THQC1130GF?
You may receive either an ABB or GE branded product. ABB acquired GE Industrial Solutions, and the breakers are identical in form, fit, and function regardless of the brand name printed on the label.
Can this breaker be used in standard GE residential load centers?
No. Standard GE residential load centers require THQL or THQP breakers. The THQC1130GF is specifically designed for 35mm DIN rail mounting in OEM panels and enclosures.
Does this breaker provide standard overload and short-circuit protection in addition to ground fault protection?
Yes. It features a thermal magnetic trip mechanism that provides long-time and instantaneous trip functions to protect against overloads and short circuits, alongside the integrated 5mA ground fault protection.
