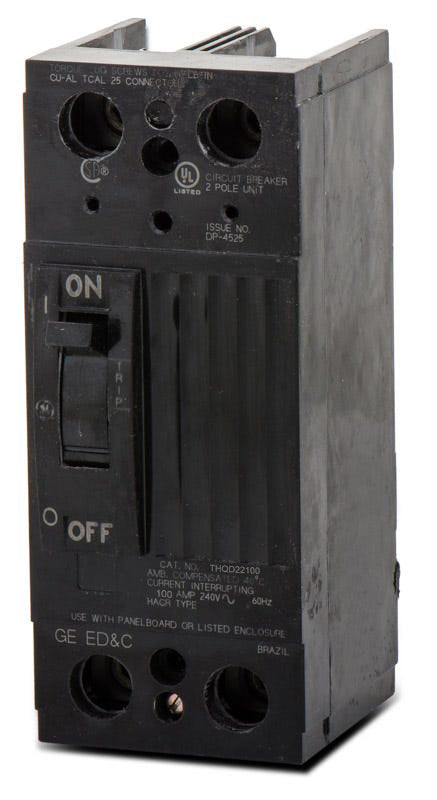

ABB / General Electric THQD22100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
ABB / General Electric
THQD22100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22100 |
| Series | THQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Sold out
Quantity
ABB / General Electric THQD22100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22100-R |
| Series | THQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHQD22150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22175
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22200
200A 2 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the GE THQD22100 is a 2-pole, 100A molded case circuit breaker from the Q-Line family. It utilizes a non-interchangeable thermal magnetic trip unit to provide dependable long-time and instantaneous protection. This unit mount breaker bolts into GE A-Series panelboards, Spectra Series switchgear, and modular meter stacks. It delivers a high interrupting capacity of 22kAIC at 240VAC and is HACR rated for heating and air conditioning applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22100 |
| Series | THQD |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
6 answersWhat is the difference between GE TQD and THQD circuit breakers?
The primary difference is the short circuit interrupting capacity. The THQD series features a higher interrupting rating of 22kAIC at 240V, while the standard TQD series is rated for 10kAIC. Both share the same physical frame and mounting style.
Which panelboards are compatible with the THQD22100 breaker?
This unit mount circuit breaker is designed for installation in GE A-Series panelboards, GE Spectra Series panelboards, GE meter stacks, and compatible standalone enclosures.
What wire sizes and materials can be used with the lugs on this breaker?
The factory-installed load lugs accept conductor sizes ranging from 4 AWG up to 300 kcmil. They are rated for use with both copper and aluminum wiring.
How is the THQD22100 mounted inside a panelboard?
It features a unit mount design, which means it is bolted directly to the panelboard chassis or bus rather than plugging in like standard residential breakers.
What does the LI trip function code indicate on this thermal magnetic breaker?
The LI designation means the breaker provides Long-Time and Instantaneous trip functions. The long-time function protects against sustained overloads, while the instantaneous function trips immediately during a short circuit.
Is the THQD22100 suitable for 120/240V single-phase services?
Yes, this 2-pole breaker is rated for 120V, 240V, and 120/240V AC systems, making it suitable for standard single-phase applications requiring 100 amps of overcurrent protection.
