ABB / General ElectricTHQD22200
Free Shipping Over $99

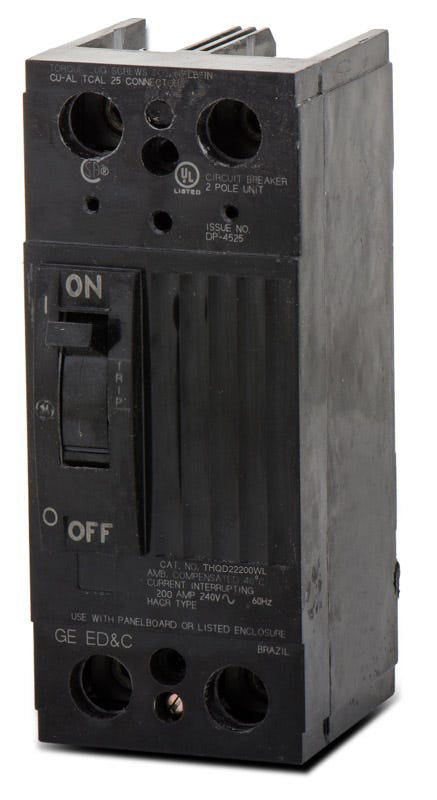

General Electric THQD22200WL Circuit Breaker
General Electric
THQD22200WL
Circuit Breaker
Brand
General Electric
SKU
THQD22200WL
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.
General Electric THQD22200WL 2 Pole Circuit Breaker
New
Quantity
Quantity
General Electric THQD22200WL 2 Pole Circuit Breaker
New
Quantity
| Brand | General Electric |
|---|---|
| Part Number | THQD22200WL |
| Series | THQD |
| Amperage | 200 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 22kAIC at 240V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | AWG 4 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR |
| Approval | CSA, NEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
General Electric THQD22200WL 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | General Electric |
|---|---|
| Series | THQD |
| Amperage | 200 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 22kAIC at 240V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | AWG 4 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR |
| Approval | CSA, NEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHQD22225
225A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22175
175A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD22150WL
150A 2 Pole Molded Case Circuit Breaker
Description
General Electric THQD22200WL 2 Pole Circuit Breaker
The General Electric THQD22200WL is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 200 Amps and a voltage rating of 240V. It has an interrupting rating of 22kAIC at 240V. The THQD22200WL has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | General Electric |
|---|---|
| Part Number | THQD22200WL |
| Series | THQD |
| Amperage | 200 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 22kAIC at 240V |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | AWG 4 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs (TCAL25) |
| Standards | HACR |
| Approval | CSA, NEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat does the WL suffix mean in the THQD22200WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with line and load lugs for wire terminations.
What is the difference between the GE TQD22200WL and THQD22200WL?
Both are 200A, 2-pole unit-mount circuit breakers, but they have different short-circuit interrupting ratings. The TQD22200WL is rated at 10 kAIC at 240V, while the THQD22200WL is rated at 22 kAIC at 240V.
How is the THQD22200WL circuit breaker mounted?
This is a unit-mount, feed-thru circuit breaker. It is designed to be bolted directly to a mounting plate or installed in switchboards and enclosures using compatible mounting hardware kits, rather than plugging into a standard load center bus.
Can I use the THQD22200WL in a GE Spectra Series panelboard?
Yes, this breaker can be installed in GE Spectra Series plug-in panelboards when paired with the correct AMC mounting hardware kit designed for TQD and THQD frames.
Does the THQD22200WL feature adjustable trip settings?
No, this breaker features a fixed thermal and fixed magnetic trip unit for long-time and instantaneous protection. The trip settings cannot be adjusted in the field.
Is the THQD22200WL interchangeable with standard residential plug-on breakers?
No. The THQD22200WL is a molded case circuit breaker designed for individual enclosures, switchboards, and commercial panelboards. It will not fit in standard residential Q-Line load centers that require THQL or THQP plug-on breakers.
