ABB / General ElectricTHQD32150WL
Free Shipping Over $99

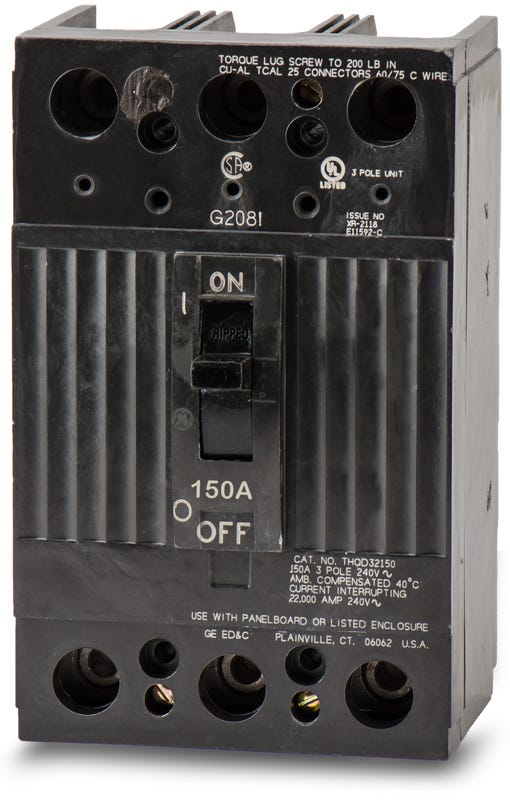

ABB / General Electric THQD32150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32150 |
| Series | THQD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Quantity
ABB / General Electric THQD32150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32150-R |
| Series | THQD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Similar Items

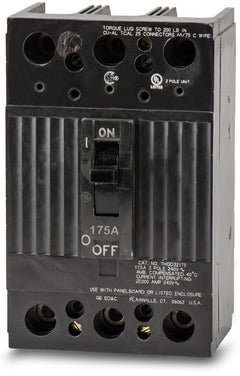

ABB / General ElectricTHQD32175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32200
200A 3 Pole Molded Case Circuit Breaker
Description
Providing 150 amps of continuous current capacity, the GE THQD32150 is a 3-pole molded case circuit breaker from the Q-Line family. It utilizes a fixed thermal-magnetic trip unit to deliver essential LI protection for commercial electrical systems. This unit mount breaker is engineered to fit GE A-Series and Spectra Series panelboards, as well as individual enclosures. The device comes equipped with load-side lugs and features a quick-make, quick-break mechanism for enhanced safety.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32150 |
| Series | THQD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
6 answersWhich panelboards are compatible with this 150A circuit breaker?
This 3-pole breaker is designed for unit mounting in GE A-Series panelboards, GE Spectra Series panelboards, and compatible standalone enclosures.
Does this breaker plug in or bolt on to the panelboard bus?
The THQD32150 uses a bolt-on connection for secure unit mounting. It also comes equipped with mechanical lugs for line and load wire termination.
What size wire is required for the integrated lugs?
The included lugs accept both copper and aluminum conductors ranging from 4 AWG to 300 kcmil. Conductors must be sized according to the 150A rating and applicable NEC temperature limitations.
Are there lower interrupting capacity alternatives to the THQD32150?
Yes, if your system only requires a 10kAIC rating at 240V, the standard GE TQD32150 is the direct lower-tier equivalent to this high-interrupting model.
Is this the correct replacement for an older General Electric THQD32150?
Yes, following ABB's acquisition of GE Industrial Solutions, this ABB / General Electric unit is the exact direct replacement for legacy GE THQD32150 circuit breakers.
Does this breaker provide Ground Fault (GFCI) or Arc Fault (AFCI) protection?
No, this unit features standard thermal-magnetic trip functionality for long-time overloads and instantaneous short circuits. It does not contain built-in ground fault or arc fault circuitry.
