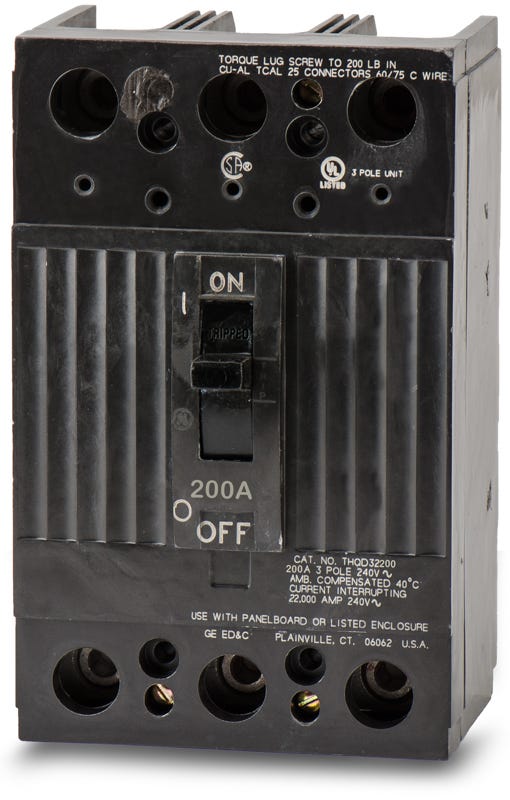

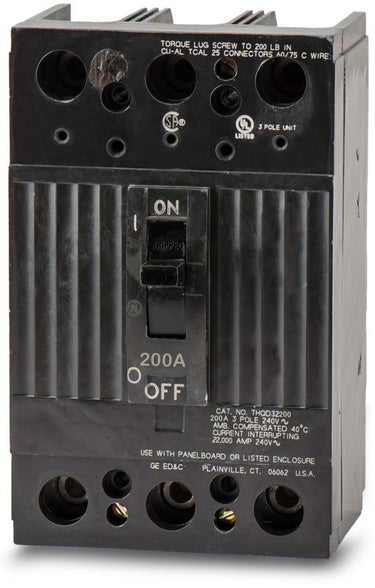

ABB / General Electric THQD32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200 |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THQD32200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200-R |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTHQD32225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32225WL
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Operating within the Q-Line family, this 200A molded case circuit breaker provides essential overcurrent protection for industrial facilities. The robust design utilizes fixed thermal-magnetic trip technology to handle fault conditions. This unit-mount component installs securely into GE A-Series panelboards and includes factory-provided line and load lugs. With a 22kAIC rating at 240VAC, the common trip mechanism ensures all three poles open simultaneously during an overload event.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200 |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat is the difference between the THQD32200 and TQD32200 breakers?
Both breakers share the exact same physical frame size and Q-Line mounting footprint. The THQD32200 offers a higher interrupting capacity of 22kAIC at 240V, making it a direct, higher-rated replacement for the standard 10kAIC TQD32200.
Are the THQD32200 and THQD32200WL the same circuit breaker?
Yes, the WL suffix in General Electric catalog numbers simply stands for "With Lugs." Since the standard THQD32200 configuration includes line and load lugs by default, both part numbers represent the exact same unit.
Which electrical panels are compatible with this circuit breaker?
This unit-mount bolt-on breaker is engineered for installation in General Electric A-Series panelboards, Spectra Series panelboards, and compatible GE modular meter stacks.
Does the THQD32200 require separate lug kits for installation?
No, this breaker comes equipped with factory-installed copper and aluminum (Cu/Al) line and load lugs. These lugs accept wire sizes from 4 AWG to 300 kcmil.
Is the THQD32200 approved for reverse feed applications?
Yes, this circuit breaker is suitable for reverse feeding. It does not have line-specific or load-specific orientation requirements, allowing it to be safely back-fed in main breaker applications.
Can the trip settings be adjusted in the field?
No, this model features a non-interchangeable, thermal-magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are fixed at the factory and cannot be manually adjusted.
Is this breaker certified for use with commercial HVAC equipment?
Yes, the THQD32200 carries a HACR rating, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment requiring dedicated overcurrent protection.
How does the breaker handle a fault on a single phase?
It is equipped with an internal common trip mechanism. If an overload or short circuit occurs on any single phase, the mechanism ensures all three poles trip open simultaneously to protect three-phase motors and connected equipment from single-phasing.
