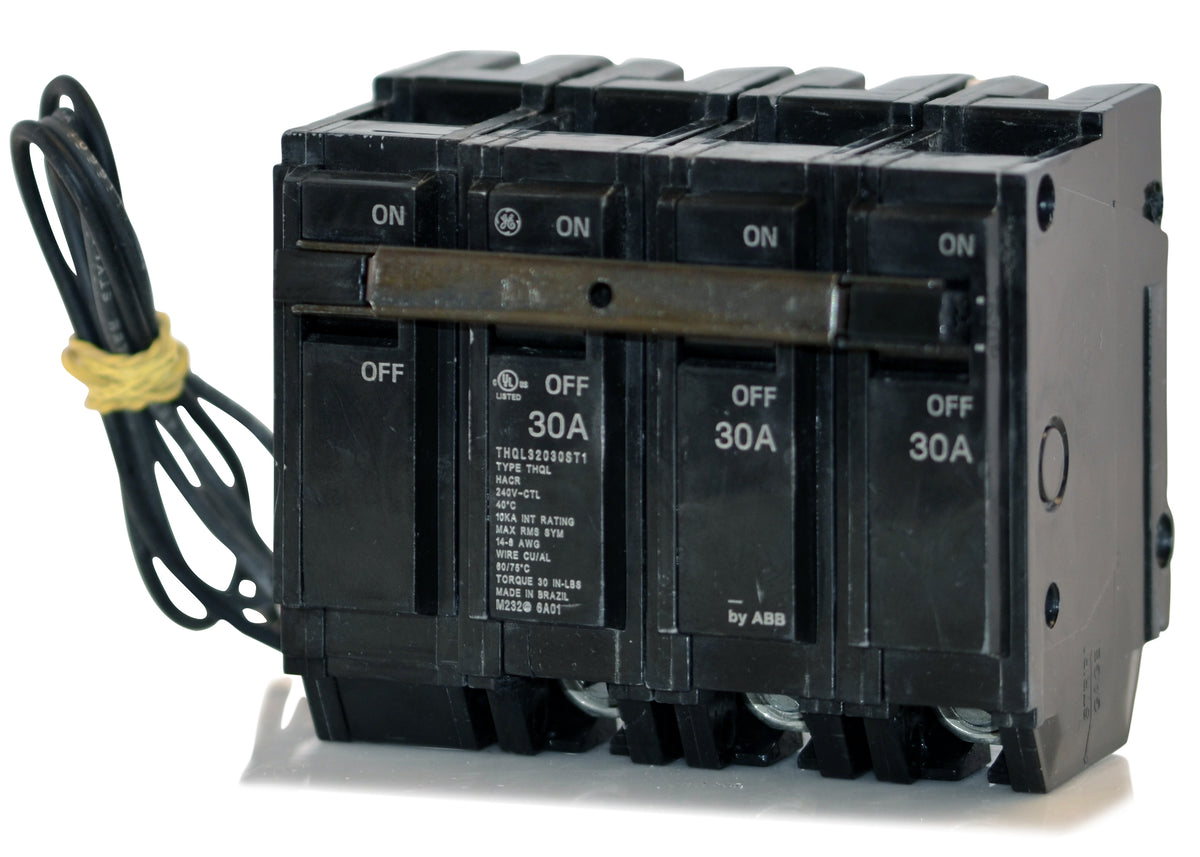

ABB / General Electric THQL32030ST1 - 30A 3 Pole Miniature Circuit Breaker
Free Shipping Over $99

ABB / General Electric THQL32030ST1 Miniature Circuit Breaker

  • 30A
  • 3 Pole
  • Plug-On
ABB / General Electric THQL32030ST1
Miniature Circuit Breaker
Brand ABB / General Electric
SKU THQL32030ST1
Select Item Condition
Earn 222 SuperPoints
  • 30A
  • 3 Pole
  • Plug-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
ABB / General Electric THQL32030ST1 - 30A 3 Pole Miniature Circuit Breaker

ABB / General Electric THQL32030ST1 - 30A 3 Pole Miniature Circuit Breaker

New

$222.60 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 5.0 (90)

Description

Integrating remote shutdown capabilities, this 30A three-pole breaker includes a factory-installed 120VAC shunt trip accessory. The thermal-magnetic core provides standard long-time and instantaneous protection for commercial environments. It fits seamlessly into GE PowerMark Gold load centers and AQ series lighting panels. The plug-on configuration utilizes standard box lug terminals for secure wiring. Rated for 10kAIC at 240VAC, it also carries an HACR certification for motor loads.

Specifications

Key specifications
Brand ABB / General Electric
Part Number THQL32030ST1
Series THQL
Amperage 30A
Poles 3
Mounting Style Plug-On
Voltage 240VAC
Phase 3
AIC Rating 10kA @ 240VAC
Fit and installation
Frame Type THQL
Terminal Type Box Lugs
For Use With GE PowerMark Gold Load Centers, GE AQ Lighting Panels
Wire Gauge 14-8 AWG (Cu), 12-8 AWG (Al)
Max Wire 8 AWG
Min Wire 14 AWG (Cu), 12 AWG (Al)
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Standards and features
Available Options Padlock Attachment, Auxiliary Switch
Accessories Shunt Trip (Factory Installed)
Standards HACR, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 60C to 75C
Construction Features HACR Rated, Common Trip, Quick-Make/Quick-Break

Product FAQs

7 answers
What does the ST1 suffix mean on the THQL32030ST1 catalog number?

The ST1 suffix indicates that the breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be opened remotely via an external control signal.

What is the difference between the THQL32030ST1 and the THQB32030ST1?

The THQL32030ST1 is a plug-on breaker designed for load centers, while the THQB32030ST1 is a bolt-on breaker typically used in commercial panelboards. Both share the same 30A rating, 3-pole configuration, and 120V shunt trip accessory.

Can I install the THQL32030ST1 in a commercial GE lighting panel?

Yes, this breaker is compatible with GE AQ Lighting Panels as well as residential GE PowerMark Gold Load Centers, provided the specific panel interior accepts plug-on THQL frame breakers.

Does the shunt trip require a separate power source?

Yes, the 120VAC shunt trip mechanism requires an external 120V control voltage to actuate the trip coil. When voltage is applied to the shunt trip leads, the breaker will open.

What are common applications for the shunt trip feature on this breaker?

The shunt trip is typically used for emergency shutdown systems. It allows the breaker to be tied into fire alarm panels, emergency stop push buttons, or equipment safety interlocks that require a rapid remote power disconnection.

Can I use aluminum wiring with the THQL32030ST1?

Yes, the box lugs on this breaker are rated for both copper and aluminum conductors. The terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.

Does this breaker provide ground fault or arc fault protection?

No, the THQL32030ST1 is a standard thermal-magnetic breaker providing long-time and instantaneous trip functions for overload and short-circuit protection. It does not include GFCI or AFCI capabilities.
