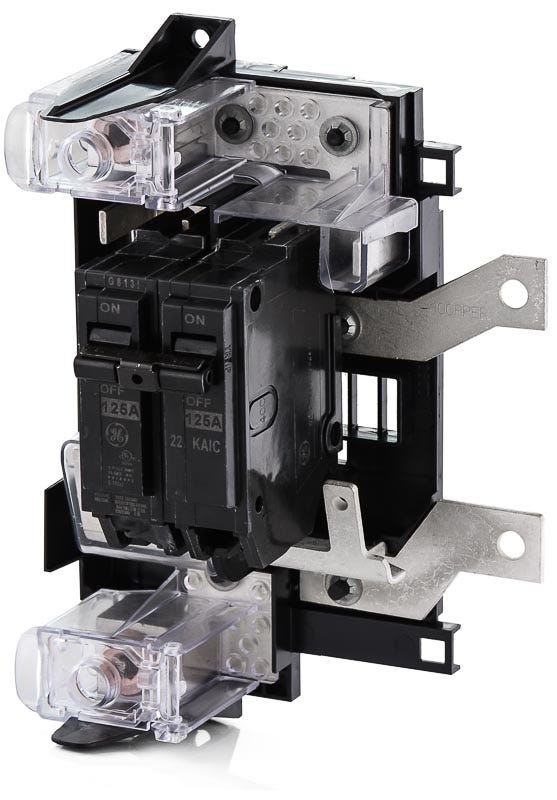

ABB / General Electric THQMV125E Molded Case Circuit Breaker
- 125A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV125E
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV125E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV125E - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV150D
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV150E
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV100D
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE THQMV125E is a 125A, two-pole molded case circuit breaker for residential and commercial applications. It functions as a main breaker kit for electrical distribution. This unit installs into 150A-225A GE PowerMark Gold and ABB ReliaHome load centers using a plug-on mounting style. It serves as a replacement for the THQMV125D model. Rated at 22kAIC at 120/240VAC, this thermal-magnetic breaker features an internal common trip and top or bottom feed.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV125E |
| Series | THQMV |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Mounting Base |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhich load centers accept the THQMV125E main breaker?
It is designed for use in GE PowerMark Gold load centers rated between 150A and 225A, as well as ABB ReliaHome load centers.
Can the THQMV125E replace older GE main breakers?
Yes, the THQMV125E serves as a direct replacement for the older THQMV125D model.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, Q-Line breakers like the THQMV125E may feature either ABB or GE branding, but they are identical in form, fit, and function.
Can the THQMV125E be used for both top and bottom feed applications?
Yes, this main breaker is designed to accommodate either top or bottom feed configurations within compatible load centers.
What does the E in the THQMV125E catalog number signify?
In the GE Q-Line nomenclature, the E suffix indicates an interrupting rating of 22kAIC at 240VAC.
