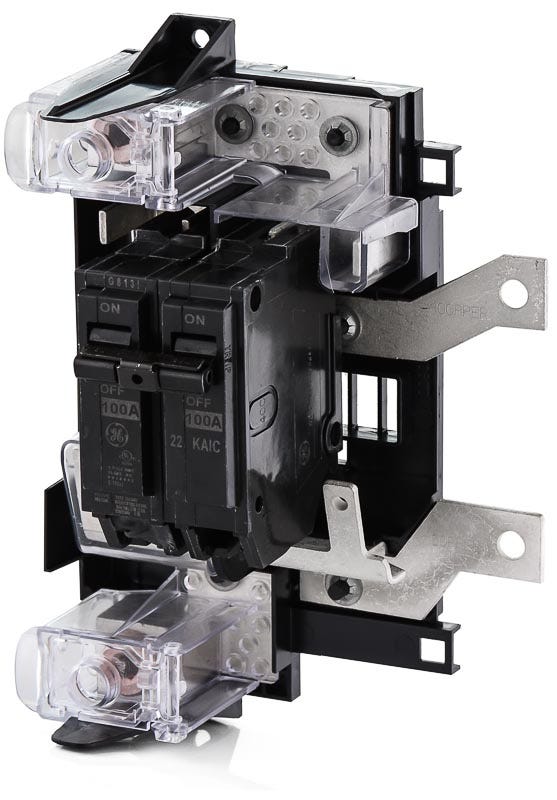

ABB / General Electric THQMV100D Molded Case Circuit Breaker
- 100A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV100D
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV100D
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV100D - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV125D
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV125E
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV150D
150A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE THQMV100D is a 100A, 2-pole main circuit breaker kit built for residential and commercial power distribution. This plug-on unit installs into 150A to 225A GE PowerMark Gold load centers and includes the necessary mounting base, hardware, and line-side lugs for a complete setup. Delivering a 22kAIC interrupting rating at 120/240VAC, it features reliable thermal-magnetic trip technology, an internal common trip, and a quick-make/quick-break mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV100D |
| Series | THQMV |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (150A-225A) |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Mounting Base, Line Side Lugs Included, Mounting Hardware |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
5 answersWhich load centers are compatible with the THQMV100D main breaker?
This main breaker kit is designed for use in GE PowerMark Gold convertible load centers rated between 150A and 225A. It is not intended for use in 125A or smaller convertible panels.
Will I receive an ABB or GE branded THQMV100D breaker?
Because ABB acquired GE Industrial Solutions, this breaker may arrive with either ABB or General Electric branding. Both versions are manufactured to the exact same specifications and are fully interchangeable.
What components are included in the THQMV100D main breaker kit?
The kit includes the 100A main circuit breaker, the required mounting base, and the line-side box lugs needed to convert a compatible main lug PowerMark Gold panel to a main breaker panel.
Are there specific wire bending space limitations when installing the THQMV100D?
While the breaker lugs accept up to 300 kcmil conductors, wire bending rules within the specific enclosure may restrict the maximum allowable wire size. Always verify the approved wire ranges on your load center interior rating label before installation.
How does the THQMV100D handle faults across its two poles?
It utilizes an internal common trip mechanism. If an overload or short circuit occurs on either leg, both poles will trip simultaneously to completely disconnect the circuit and ensure system safety.
