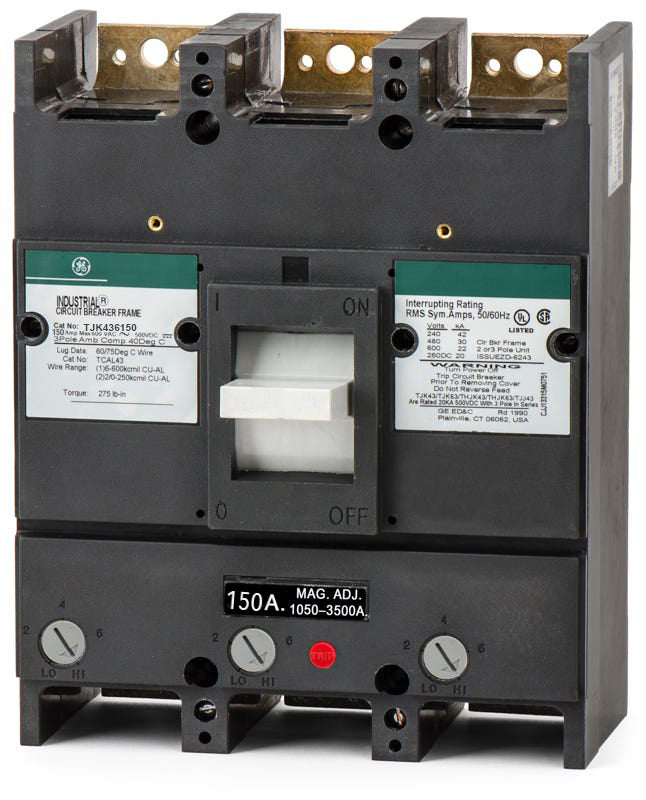

ABB / General Electric TJK436150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK436150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK436150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK436150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJK436225WL
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436250WL
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636250WL
250A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy J-Frame series, this 150-amp molded case circuit breaker delivers robust thermal-magnetic protection for industrial power systems. The unit mounts into GE A-Series panelboards, J600 enclosures, and motor control centers. It serves as a reliable component for existing infrastructure and can be replaced by the XT4N250 using a retrofit kit. Rated for 42kA interrupting capacity at 240VAC, it features an interchangeable trip unit and includes factory-installed load lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK436150 |
| Series | TJK |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J600 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 6 AWG - 600 kcmil (Cu/Al) or (2) 2/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL43) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
7 answersWhich panelboards and enclosures are compatible with the TJK436150 circuit breaker?
This J-Frame breaker is designed for use in GE A-Series panelboards, GE J600 panelboards, switchboards, and motor control centers. It utilizes a bolt-on mounting connection.
What is the maximum frame size for the TJK series?
The TJK436150 belongs to the GE J600 line of circuit breakers. While this specific model is equipped with a 150A trip unit, the J-Frame itself supports a maximum rating of 600 amps.
What wire sizes are accepted by the lugs on the TJK436150?
The factory lugs accept either one 6 AWG to 600 kcmil copper or aluminum wire, or two 2/0 AWG to 250 kcmil copper or aluminum wires per phase.
Can the GE TJK436150 be reverse fed?
No. According to GE and ABB specifications, TJK and THJK frame circuit breakers equipped with interchangeable trip units and line and load lugs are not suitable for reverse feed applications.
How does the trip unit function on this 150A breaker?
The TJK436150 features a thermal magnetic trip unit with a fixed thermal element for 150A continuous overload protection and an adjustable magnetic element for short-circuit protection.
Can the TJK436150 be used in DC power applications?
Yes, in addition to its AC ratings, this breaker is rated for DC applications. It provides an interrupting capacity of 20kA at both 250VDC and 500VDC.
Is the GE TJK436150 still actively manufactured, or is there a replacement?
The TJK series is a legacy J-Frame product line that has been transitioned to limited production by ABB. For new installations or complete upgrades, ABB recommends transitioning to the Tmax XT series, such as the XT4, which requires a retrofit kit for existing enclosures.
