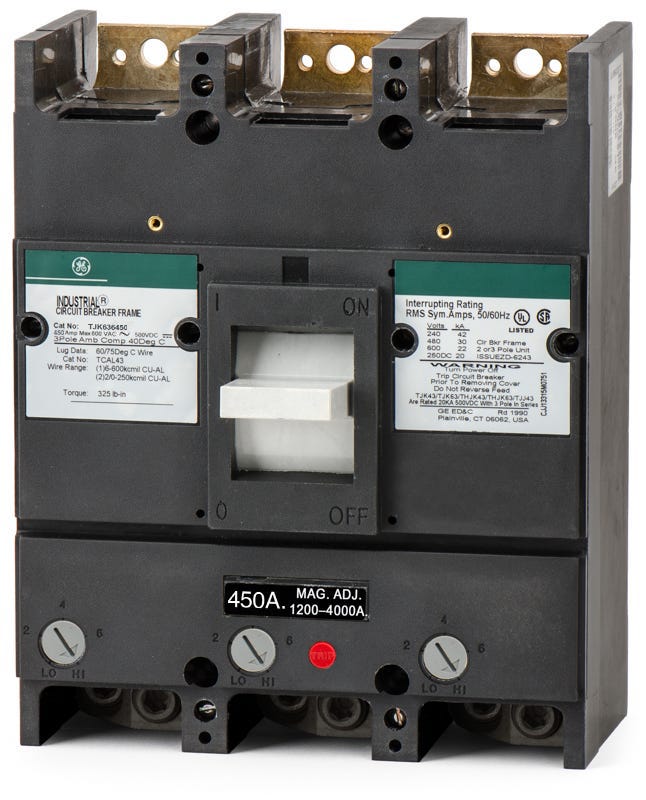

ABB / General Electric TJK636450 Molded Case Circuit Breaker
- 450A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK636450
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636450
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636450 - 450A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TJK636450 - 450A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636450 |
| Series | TJK |
| Amperage | 450A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL63) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Quantity
ABB / General Electric TJK636450 - 450A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636450-R |
| Series | TJK |
| Amperage | 450A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL63) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTJK636500WL
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636500
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK436400WL
400A 3 Pole Molded Case Circuit Breaker
Description
Manufactured for commercial power distribution, the GE TJK636450 is a 3-pole, 450A molded case circuit breaker from the legacy J600 line. It provides reliable overcurrent protection across 3-phase applications. This unit mount MCCB installs into GE J600 panelboards, switchboards, and motor control centers. For facility upgrades, it can be replaced by the Tmax XT5 series using a retrofit kit. It features an interchangeable thermal-magnetic trip unit, 30kAIC at 480VAC, and includes TCAL63 lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636450 |
| Series | TJK |
| Amperage | 450A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included (TCAL63) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and enclosures are compatible with the TJK636450?
This unit mount breaker is designed for installation in GE J600 series panelboards, switchboards, motor control centers, and standalone J-Frame enclosures.
What wire sizes do the standard lugs on this breaker accept?
The factory lugs accommodate dual wires per phase. They accept two 4/0 AWG to 350 kcmil copper conductors, or two 300 to 500 kcmil aluminum conductors.
Can the TJK636450 be used in DC circuits?
Yes, this thermal magnetic breaker is rated for DC applications. It provides a 20kA interrupting capacity at both 250VDC and 500VDC.
How do I adjust the trip settings on this breaker?
The TJK636450 features a fixed thermal element for long time overload protection and an adjustable magnetic element for instantaneous short circuit protection. The magnetic trip threshold can be adjusted using the dial located on the front face of the breaker.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE molded case circuit breakers, including the J600 frame TJK series, are now manufactured and supported under the combined ABB and GE brand.
