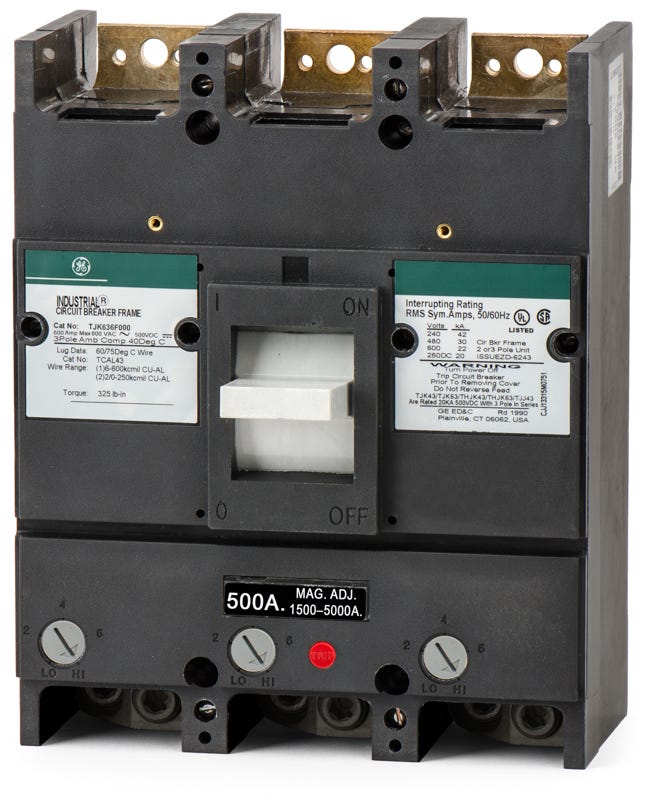

ABB / General Electric TJK636500WL Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
ABB / General Electric
TJK636500WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJK636500WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJK636500WL - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TJK636500WL - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636500WL |
| Series | TJK |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300 kcmil-500 kcmil (Al) |
| Max Wire | 350 kcmil (Cu) or 500 kcmil (Al) |
| Min Wire | 4/0 AWG (Cu) or 300 kcmil (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Quantity
ABB / General Electric TJK636500WL - 500A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636500WL-R |
| Series | TJK |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300 kcmil-500 kcmil (Al) |
| Max Wire | 350 kcmil (Cu) or 500 kcmil (Al) |
| Min Wire | 4/0 AWG (Cu) or 300 kcmil (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Similar Items
ABB / General ElectricTJK636450
450A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636450WL
450A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJK636600WL
600A 3 Pole Molded Case Circuit Breaker
Description
Featuring the "WL" catalog suffix, this 500A molded case circuit breaker includes factory-installed Cu/Al line and load lugs. The 3-pole device utilizes a thermal-magnetic trip unit with adjustable instantaneous settings. It mounts into GE J600 panelboards, motor control centers, and standalone enclosures. This legacy model is officially replaced by the ABB Tmax XT5 series when utilizing the appropriate retrofit hardware. Delivering 30kAIC at 480VAC, it ensures reliable performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636500WL |
| Series | TJK |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | TJK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE J600 Panelboards, Switchboards, Motor Control Centers, J-Frame Enclosures |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300 kcmil-500 kcmil (Al) |
| Max Wire | 350 kcmil (Cu) or 500 kcmil (Al) |
| Min Wire | 4/0 AWG (Cu) or 300 kcmil (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
6 answersWhat does the "WL" suffix indicate in the TJK636500WL catalog number?
The "WL" suffix designates that this breaker comes complete with factory-installed line and load lugs. If the breaker were ordered without this suffix, it would be supplied without lugs.
Can the TJK636500WL be back-fed or reverse-fed?
No. According to General Electric specifications, TJK and THJK frame circuit breakers equipped with interchangeable trip units are not suitable for reverse-feed applications. Power must be connected to the line side terminals.
Are the trip units on this breaker field-replaceable?
Yes. The TJK frame features an interchangeable thermal magnetic trip unit. This allows electricians to swap or upgrade the trip unit in the field if load requirements change, without needing to replace the entire breaker frame.
What wire sizes are supported by the factory lugs?
The standard factory lugs on this 500A breaker are designed for dual conductors per phase. They accept two 4/0 AWG to 350 kcmil copper conductors, or two 300 kcmil to 500 kcmil aluminum conductors.
What types of enclosures and panels accept the TJK636500WL?
This unit mount breaker is designed specifically for integration into GE J600 panelboards, switchboards, motor control centers, and standalone J-Frame enclosures.
How is the trip unit adjusted on this model?
This breaker utilizes a fixed thermal element for long-time overload protection and an adjustable magnetic element. This allows you to fine-tune the instantaneous short-circuit trip threshold to coordinate with specific downstream loads and equipment.
