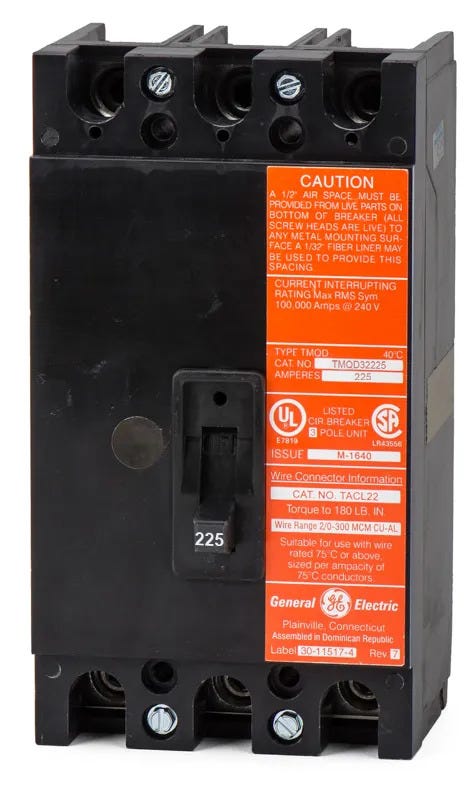

ABB / General Electric TMQD32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQD32225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32100
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the GE Meter Mod series, the TMQD32225 is a three-pole, 225-amp molded case circuit breaker built for commercial and industrial distribution. It delivers reliable overcurrent protection for high-demand electrical systems. This unit bolts into GE Meter Mod III modular metering stacks and A-Series panelboards. It serves as a replacement for older installations and is superseded by the TMQV32225 frame.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32225 |
| Series | TMQD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Product FAQs
5 answersWhich enclosures are approved to accept the TMQD32225 breaker?
This breaker is specifically listed for installation in GE A-Series panelboards and GE Meter Mod III meter stacks. Check the wiring diagram on your equipment to confirm it accepts TMQD frame types before installation.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The TMQD32225 is part of the legacy GE product line that is now manufactured and supported by ABB. The physical breaker, catalog number, and UL listings remain identical.
What type of conductors can be terminated on the TMQD32225 lugs?
The standard lugs on this breaker are dual-rated for both copper and aluminum conductors. They accommodate wire sizes ranging from 1 AWG to 300 kcmil.
What applications require the 100kAIC rating found on this TMQD breaker?
A 100kA interrupting capacity at 240V is typically required in commercial or industrial settings where the available fault current from the utility transformer is extremely high. This ensures the breaker can safely clear massive short circuits without sustaining catastrophic damage.
Are the thermal magnetic trip settings adjustable on this model?
No. The TMQD32225 features fixed long-time and instantaneous (LI) trip functions. The 225A overload and short circuit thresholds are factory calibrated and cannot be adjusted in the field.
