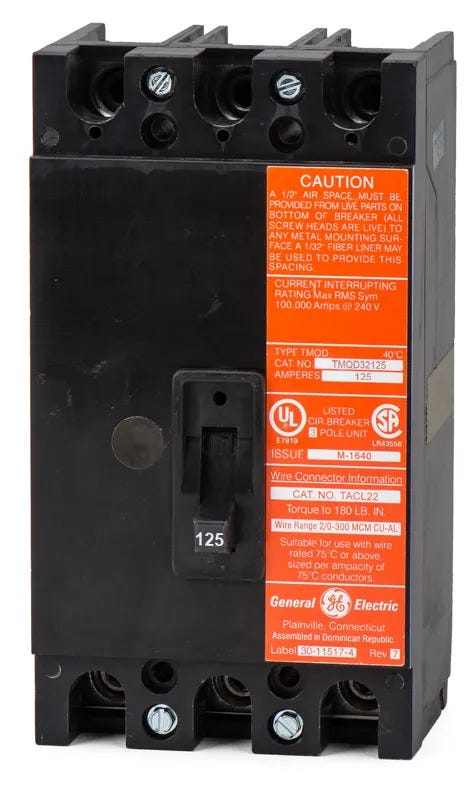

ABB / General Electric TMQD32125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQD32125
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD32125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD32125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQD32100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32060
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for robust commercial use, the GE TMQD32125 is a 3-pole, 125A molded case circuit breaker with fixed thermal-magnetic trip technology. The bolt-on design mounts into GE A-Series panelboards and Meter Mod III meter stacks. For facilities planning future maintenance, this model is replaced by the TMQV32125. With a high interrupting rating of 100kAIC at 240VAC, it safely clears severe faults. It is HACR rated, supports reverse feed, and includes line and load lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32125 |
| Series | TMQD |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks, GE A-Series Panelboards |
| Wire Gauge | 1 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Common Trip, Reverse Feed |
Product FAQs
5 answersWhich panelboards and meter stacks are compatible with the TMQD32125 breaker?
This bolt-on breaker is designed for direct installation in GE A-Series panelboards and GE Meter Mod III meter stacks.
What wire sizes are accepted by the terminals on the TMQD32125?
The factory-installed lugs accept wire gauges from 1 AWG up to 300 kcmil. They are rated for use with both copper (Cu) and aluminum (Al) conductors.
Will the TMQD32125 arrive with ABB or General Electric branding?
Because ABB acquired GE Industrial Solutions, this breaker may feature either ABB or GE branding. The physical dimensions, mounting hardware, and performance specifications remain identical regardless of the label.
What applications require the 100kAIC rating of the TMQD frame?
The 100kA interrupting capacity at 240V makes this breaker suitable for commercial and industrial electrical systems where available fault currents exceed standard 10kAIC or 65kAIC levels, providing enhanced safety during severe short circuits.
How does the thermal magnetic trip unit operate on this breaker?
It features fixed Long-Time (L) and Instantaneous (I) protection. The thermal element provides delayed tripping for mild overloads, while the magnetic element trips instantly to clear severe short circuits.
