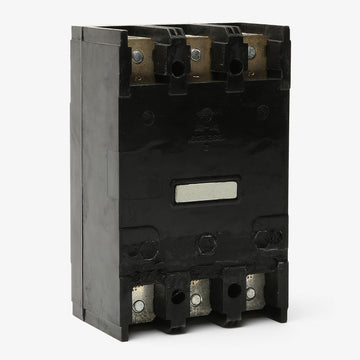

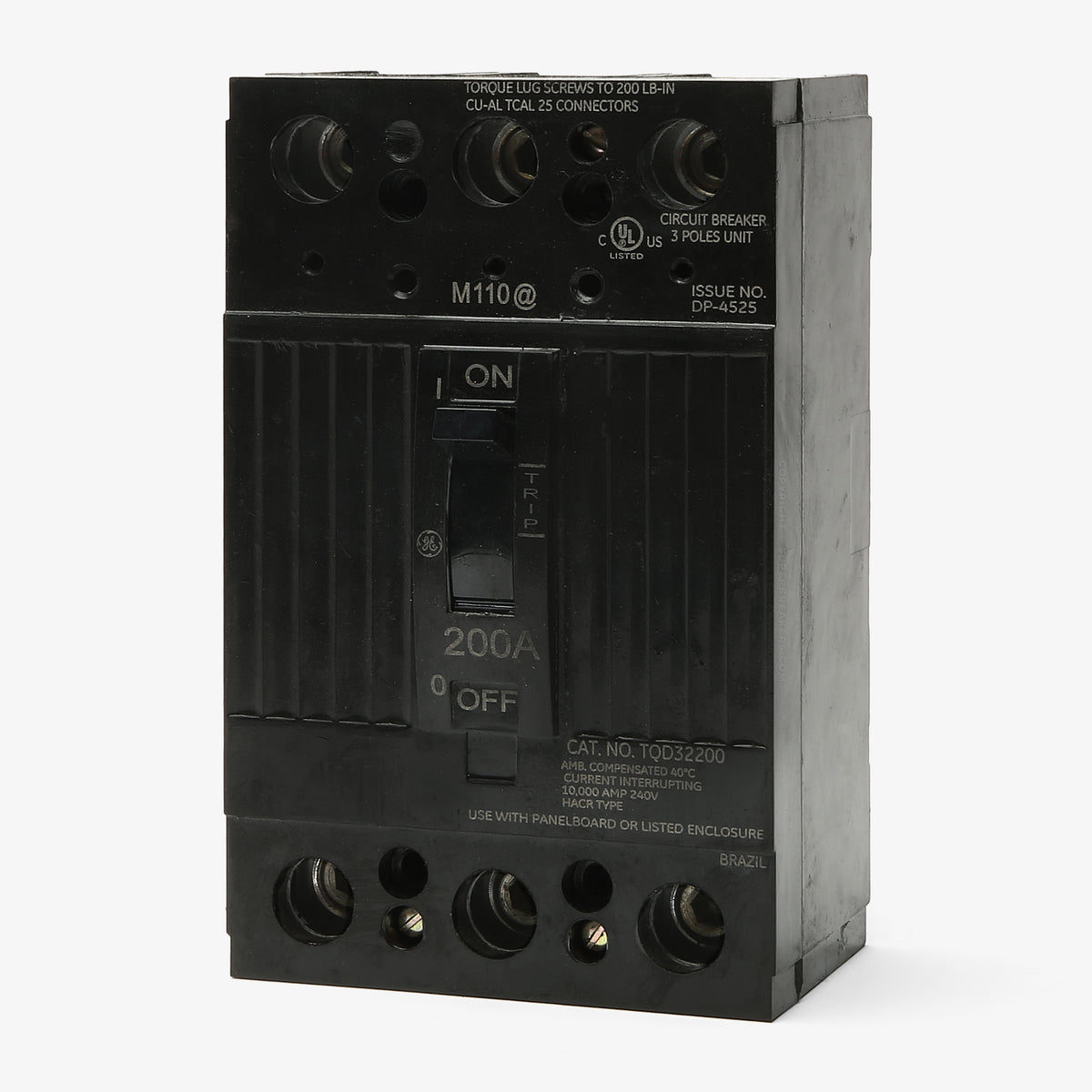

ABB / General Electric TQD32200WL Molded Case Circuit Breaker

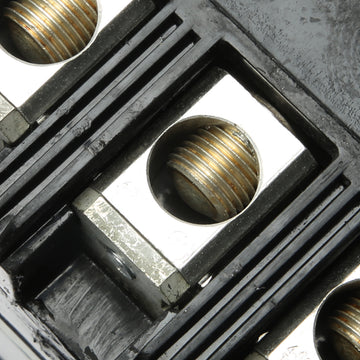

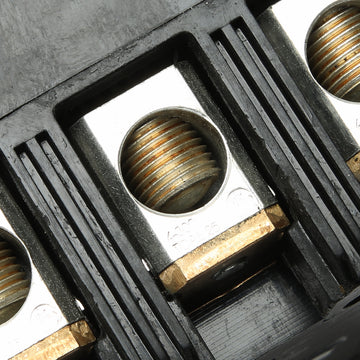

The "WL" suffix indicates that this circuit breaker comes complete with factory-installed line and load side lugs for terminating copper or aluminum conductors.

This unit-mount circuit breaker is designed for installation in GE A-Series panelboards, Spectra Series switchboards, and dedicated TQD enclosures.

The TQD frame was originally engineered by General Electric. Following the acquisition of GE Industrial Solutions, this product line is now manufactured by ABB while maintaining the exact original GE design and footprint.

The difference lies in the short-circuit interrupting capacity. The standard TQD32200WL provides a 10kA rating at 240VAC, while the THQD32200WL is a high-interrupting version rated for 22kA at 240VAC.

No. The TQD32200WL uses a fixed thermal-magnetic trip unit. The long-time overload and instantaneous short-circuit functions are factory calibrated and cannot be field-adjusted.

No, this molded case circuit breaker features a non-interchangeable trip design. If your circuit requirements change, the entire breaker assembly must be replaced.

As a unit-mount device, the TQD32200WL bolts directly to the base pan of the enclosure. It connects to the electrical system via cabled line and load conductors rather than plugging onto a busbar.

Yes, this is a common-trip circuit breaker. An overload or short-circuit fault on any single pole will automatically open all three poles simultaneously to prevent single-phasing conditions on three-phase loads.
