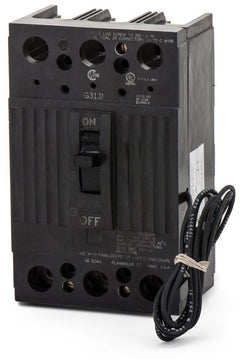

ABB / General ElectricTQD32175ST1
Free Shipping Over $99

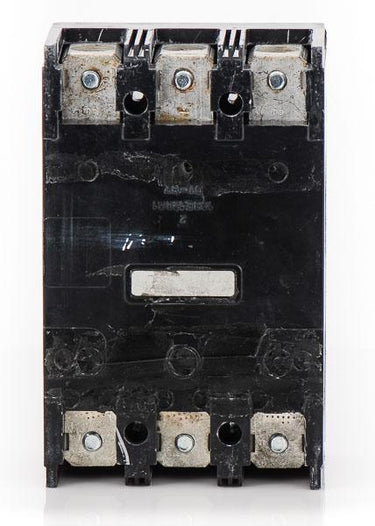

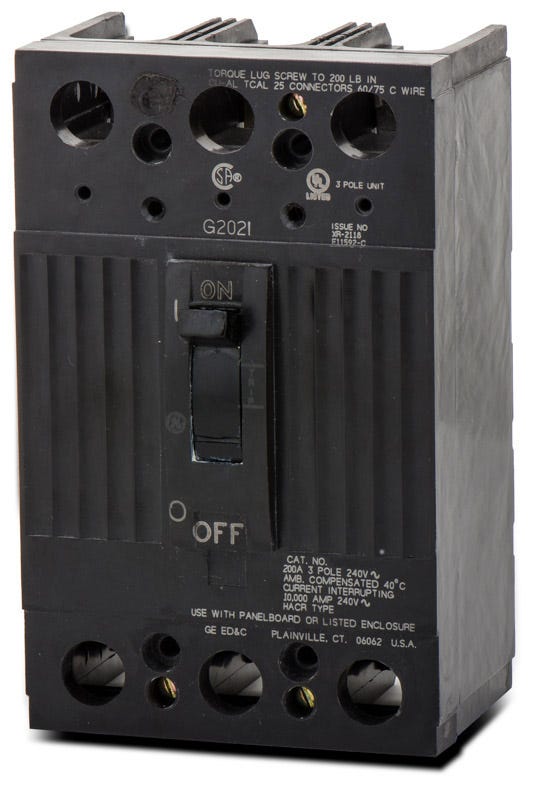

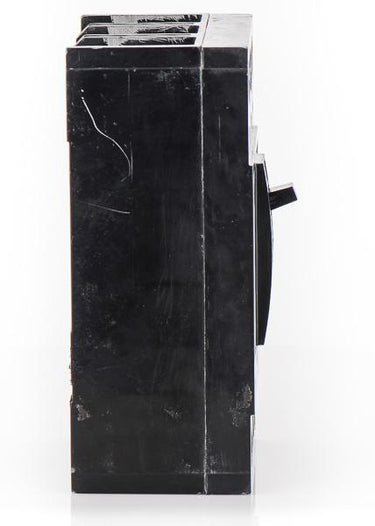

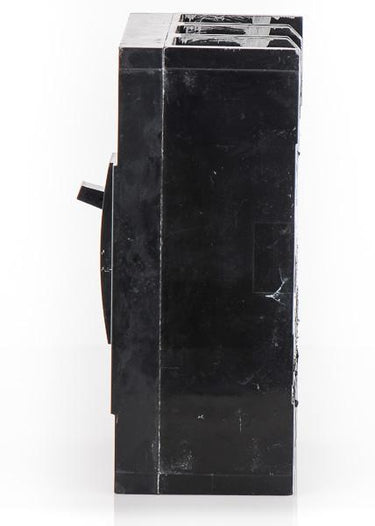

ABB / General Electric TQD32175WL Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
ABB / General Electric
TQD32175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD32175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175WL |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD32175WL - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175WL |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items

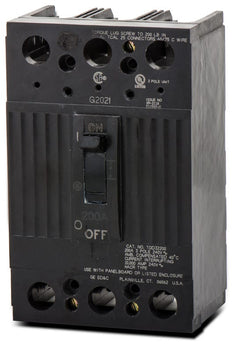

ABB / General ElectricTQD32200
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32200WL
200A 3 Pole Molded Case Circuit Breaker

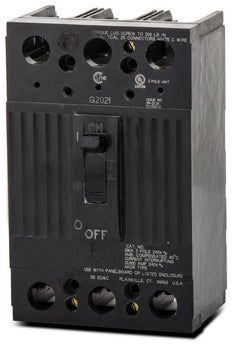

ABB / General ElectricTQD32150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the GE TQD32175WL is a 3-pole, 175-amp molded case circuit breaker from the Q-Line series. It provides thermal-magnetic protection with a 10kAIC rating at 240VAC and comes complete with line and load lugs for immediate wiring. This unit mount breaker is engineered for installation in GE enclosures, switchboards, and individual mounting setups. For facilities maintaining legacy systems, it can be replaced by the ABB Formula A2 series.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175WL |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Individual Mounting |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panels and enclosures are compatible with the GE TQD32175WL?
This breaker installs into GE A-Series panelboards, Spectra Series switchboards, AQ series panels, and dedicated TQD enclosures.
Can the TQD32175WL be reverse fed?
Yes, this thermal magnetic breaker is suitable for reverse feed applications.
What is the difference between GE TQD and THQD breakers?
The primary difference is the interrupting capacity. TQD breakers are rated for 10kAIC, while THQD breakers offer a higher 22kAIC rating.
What does the WL suffix mean on the TQD32175WL catalog number?
The WL suffix indicates that the breaker comes factory equipped with both line and load lugs.
What is the difference between the WL and X2 suffix on GE TQD breakers?
The WL suffix indicates the breaker includes both line and load lugs, while the X2 suffix means it is supplied with load lugs only.
Is there a modern replacement for the GE TQD32175WL?
Yes, for legacy systems, this breaker can be replaced by the ABB Formula A2 series using the appropriate retrofit kits.
