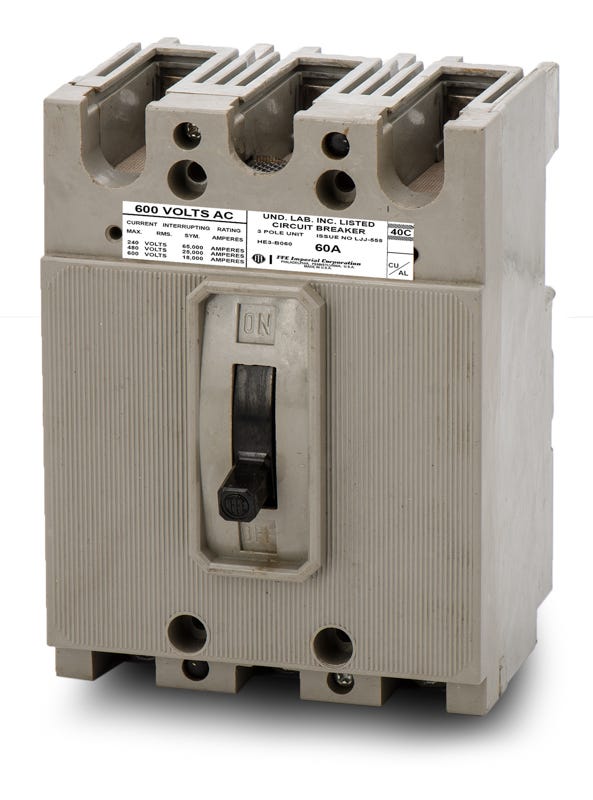

Siemens / ITE HE3B060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Siemens / ITE
HE3B060
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
HE3B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE HE3B060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

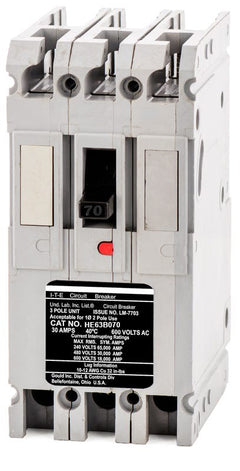

50A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for legacy commercial systems, the Siemens HE3B060 is a 60A, 3-pole molded case circuit breaker delivering reliable thermal-magnetic protection. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards. Offering an exact physical match for older installations, it requires no adapters and serves as an exact cross-reference to the newer HED43B060 substitute. Rated for 25kAIC at 480VAC, it features fixed long-time and instantaneous (LI) trip functions to defend against overloads.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | HE3B060-R |
| Series | HE |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | HE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5.1, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersCan I install the HE3B060 in a standard residential load center?
No, the HE3B060 is a bolt-on molded case circuit breaker designed specifically for commercial and industrial Siemens P1, P2, and P3 panelboards and switchboards. It is not compatible with plug-on residential load centers.
Is there a modern replacement for the legacy HE3B060 circuit breaker?
Yes, the HED43B060 is the modern, exact physical substitute for the HE3B060. It mounts directly into the same Siemens panelboards without requiring any adapters.
Can the HE3B060 be reverse fed?
Yes, because the HE3B060 features a non-interchangeable thermal-magnetic trip unit and lacks specific Line and Load markings, it is suitable for reverse-feed applications.
Does the HE3B060 require a separate mounting kit for Siemens panelboards?
No, the HE3B060 is a bolt-on breaker that mounts directly to the bus of compatible Siemens P1, P2, and P3 panelboards without the need for an additional mounting kit or adapter.
Is the HE3B060 compatible with single-phase systems?
Yes, although it is a 3-pole breaker designed for 3-phase systems, it can be safely used in single-phase applications by wiring across two of the poles. However, a dedicated 2-pole breaker is typically preferred to conserve panel space.
