Siemens HE3B040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Siemens
HE3B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
HE3B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

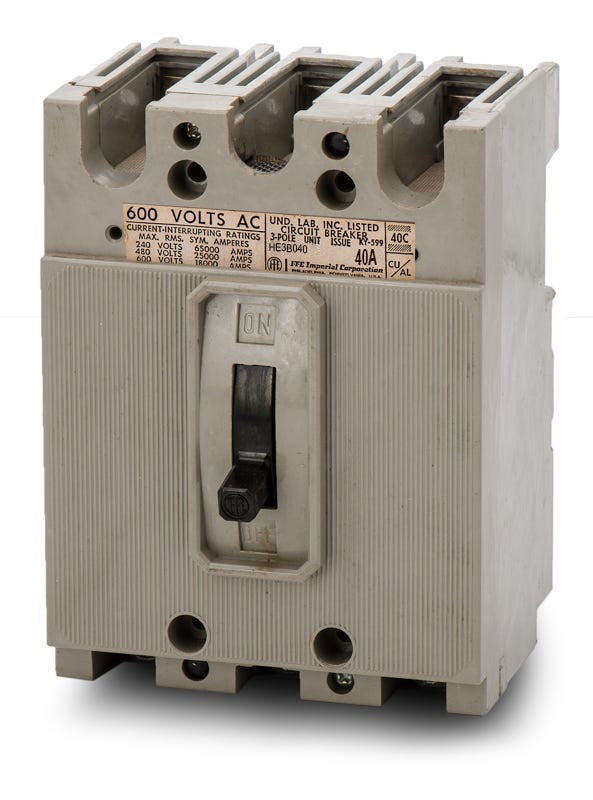

Siemens HE3B040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

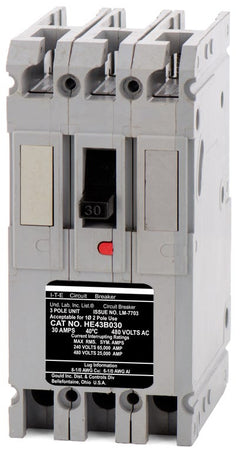

30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Operating as a critical safety component, the Siemens HE3B040 is a 40A, 3-pole molded case circuit breaker. It utilizes fixed thermal and magnetic trip units to protect commercial circuits from electrical faults. The bolt-on configuration allows for stable integration into Siemens P1, P2, P3, and ITE panelboards. While this is a legacy HE frame device, it remains essential for maintaining existing systems and is replaced by the HED63B040. It features a 65kAIC rating at 240V and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HE3B040-R |
| Series | HE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | HE |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, ITE Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, HID Rated, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersCan I install the Siemens HE3B040 in an older ITE panelboard?
Yes. Siemens acquired ITE and continued the HE frame line. The Siemens HE3B040 is a direct replacement for legacy ITE HE3B040 breakers and fits into the same panelboard spaces.
What is the difference between the ITE HE3B040 and the Siemens HE3B040?
There is no physical or electrical difference. Siemens manufactures the exact same HE frame breaker that was previously branded as ITE. They are fully interchangeable.
Are load lugs included with this breaker?
Yes, the breaker includes standard mechanical lugs installed on the load side, which accept 10 to 1/0 AWG copper or aluminum conductors.
Does this breaker require a separate mounting kit?
Yes. Because it is a bolt-on breaker, you will need the appropriate strap kit or mounting hardware designed specifically for your Siemens P1, P2, P3, or legacy ITE panelboard.
Is this breaker rated for direct current (DC) applications?
Yes, the HE3B040 carries a 250VDC rating with a 10kA interrupting capacity, allowing it to be used in compatible DC circuits.
