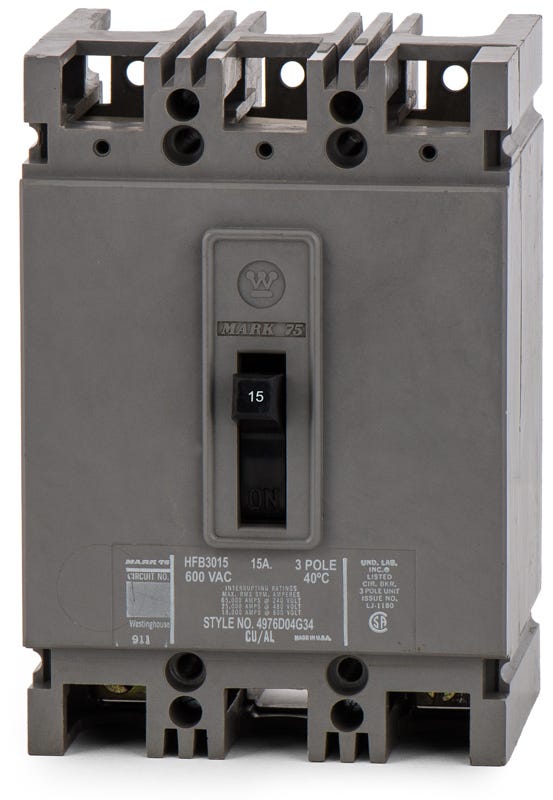

Eaton / Cutler-Hammer HFB3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFB3015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFB3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFB3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for reliable three-phase distribution, the Eaton HFB3015 is a 15A molded case circuit breaker. As part of the Mark 75 series, it provides thermal-magnetic protection for commercial systems up to 600VAC. The F-Frame breaker features a bolt-on mounting style compatible with Eaton Pow-R-Line C panelboards, Westinghouse FDP panels, and switchboards. It easily replaces older FD3015 and HFD3015 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFB3015-R |
| Series | HFB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse FDP Panelboards, Eaton Pow-R-Line C Panelboards, F-Frame Switchboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB-1, UL 489, Federal Specification W-C-375b |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Product FAQs
7 answersWhat panelboards are compatible with the HFB3015?
This bolt-on F-frame breaker is designed to install in Westinghouse FDP panelboards, Eaton Pow-R-Line C panelboards, and compatible F-frame switchboards.
Can I use this Eaton breaker to replace an older Westinghouse HFB3015?
Yes. Eaton acquired the Westinghouse distribution equipment business in 1994. The Eaton, Cutler-Hammer, and Westinghouse HFB3015 models share the exact same physical footprint and electrical characteristics, making them direct replacements for one another.
What does the Mark 75 designation mean on this breaker?
Mark 75 is a legacy Westinghouse trade name that indicates a high interrupting capacity circuit breaker. For the HFB3015, this corresponds to its maximum 65kA symmetrical interrupting rating at 240V AC.
Is the HFB3015 suitable for reverse feed applications?
Yes. Eaton F-frame circuit breakers, including the HFB series, are suitable for reverse feed applications. When backfeeding a panel, ensure you use the appropriate retaining bracket as required by local electrical codes.
What type of wire can be used with the standard lugs on the HFB3015?
The standard load side lugs accept 14 to 1/0 AWG wire and are rated for both copper and aluminum (Cu/Al) conductors. If using aluminum wire, an approved joint compound is recommended during installation.
Can the HFB3015 be used in DC circuits?
Yes. In addition to its AC ratings, this breaker is rated for up to 250V DC applications. When used in DC systems, it is typically applied to substantially non-inductive circuits.
What does the LI trip function code mean on this breaker?
The LI designation means the breaker features a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. The fixed thermal element provides a time delay for overloads, while the fixed magnetic element trips instantly during a short circuit.
