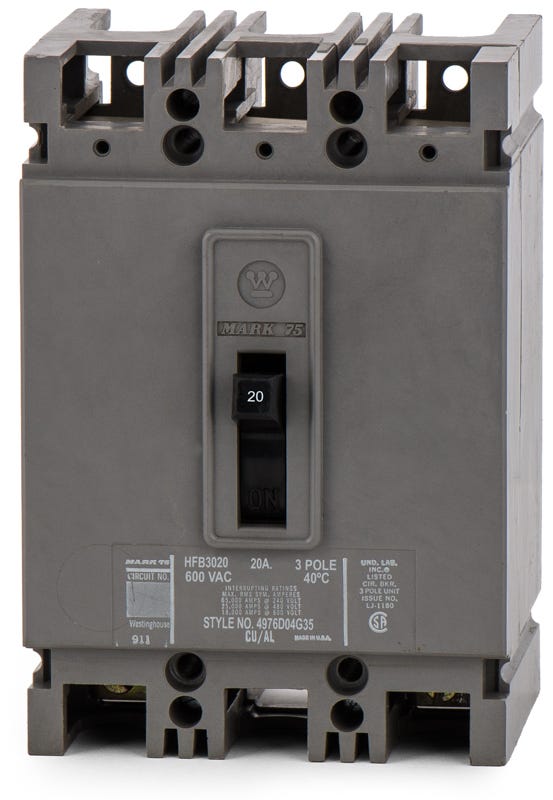

Eaton / Cutler-Hammer HFB3020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFB3020
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFB3020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFB3020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerHFB3015VL
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Part of the Mark 75 family, the Eaton HFB3020 is a 3-pole, 20A molded case circuit breaker for commercial applications. This F-Frame device provides reliable long-time and instantaneous (LI) trip functions. The bolt-on MCCB installs into Eaton Pow-R-Line C panelboards and legacy Westinghouse switchboards. It is replaced by the newer HFD3020 model. With a high interrupting capacity of 65kA at 240V and 25kA at 480V, it handles significant fault currents. The unit is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFB3020-R |
| Series | HFB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity, HACR Rated |
Product FAQs
4 answersWhich panelboards are compatible with the HFB3020 circuit breaker?
This bolt-on F-frame breaker is designed for installation in Eaton Pow-R-Line C panelboards, legacy Westinghouse panelboards, and compatible switchboards.
Is the Eaton HFB3020 a direct replacement for older Westinghouse HFB3020 breakers?
Yes. Eaton acquired the Westinghouse electrical distribution division. The current Eaton and Cutler-Hammer HFB3020 models are direct replacements for legacy Westinghouse HFB3020 circuit breakers.
What does the Mark 75 designation indicate on this breaker?
Mark 75 is a legacy Westinghouse family classification for high-interrupting capacity circuit breakers. The HFB3020 carries this designation, delivering a 65kA interrupting rating at 240VAC and 25kA at 480VAC.
Can the HFB3020 be used in reverse feed applications?
Yes. Eaton F-frame thermal-magnetic circuit breakers are suitable for reverse feed applications. When back-feeding a panel, ensure you use the appropriate retaining bracket as required by the National Electrical Code.
