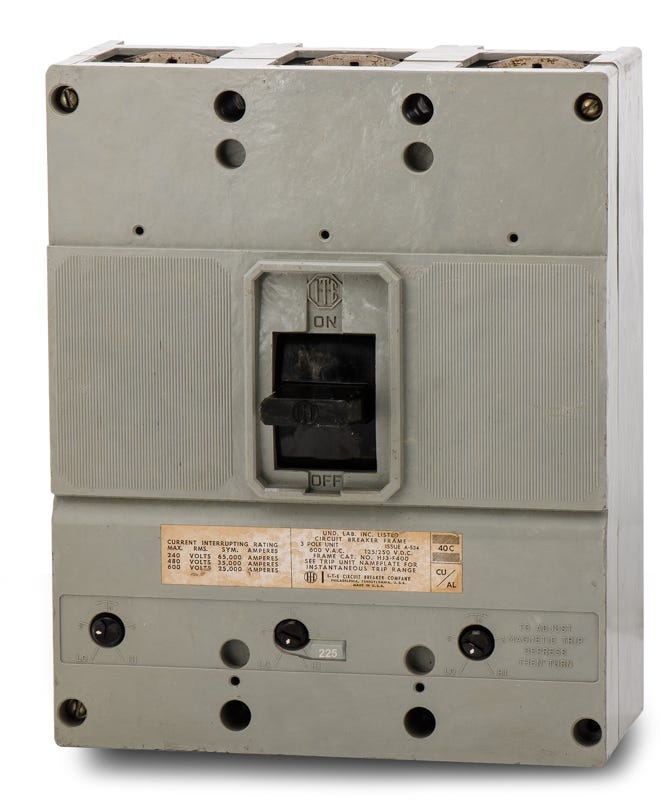

Siemens / ITE HJ3B225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Siemens / ITE
HJ3B225
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
HJ3B225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens / ITE HJ3B225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
200A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy HJ series, this 225-amp molded case circuit breaker provides reliable overcurrent protection for commercial and industrial electrical systems. It mounts into Siemens P4 and P5 panelboards or switchboards without requiring aftermarket adapters. As an exact replacement for older installations, it can also be substituted with the newer HJD63B225 frame. Rated for 65 kAIC at 480VAC, it features a thermal-magnetic trip unit with long-time and instantaneous functions.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | HJ3B225-R |
| Series | HJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 30kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Wire Gauge | 3/0 AWG - 500 kcmil |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs not included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
6 answersWhich panelboards are compatible with the HJ3B225 circuit breaker?
This bolt-on breaker is designed for direct installation into Siemens P4 and P5 panelboards, as well as compatible Siemens switchboards, without requiring aftermarket adapters.
Are wire lugs included with the HJ3B225?
No, line and load lugs are not included with this breaker. You must source the appropriate lug kits separately to terminate conductors within the supported 3/0 AWG to 500 kcmil wire range.
Can the HJ3B225 be utilized in DC electrical systems?
Yes, in addition to its AC ratings, this breaker is rated for DC applications up to 500VDC, providing a 30kA interrupting capacity at that voltage.
Can I use the HJ3B225 to replace older ITE breakers?
Yes, this Siemens/ITE breaker is an exact replacement for legacy HJ series 225A, 3-pole breakers in existing installations. It can also be substituted with the newer HJD63B225 frame where applicable.
How does the trip unit operate on the HJ3B225?
It utilizes an interchangeable thermal-magnetic trip unit with fixed thermal and adjustable magnetic settings. This provides standard long-time and instantaneous (LI) overcurrent protection.
Is the HJ3B225 suitable for HVAC applications?
Yes, this breaker is HACR rated, making it safely approved for use with heating, air conditioning, and refrigeration equipment.
