Siemens / ITE JL3B275 Molded Case Circuit Breaker
- 275A
- 3 Pole
- Bolt-On
Siemens / ITE
JL3B275
Molded Case Circuit Breaker
Brand
Siemens / ITE
SKU
JL3B275
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

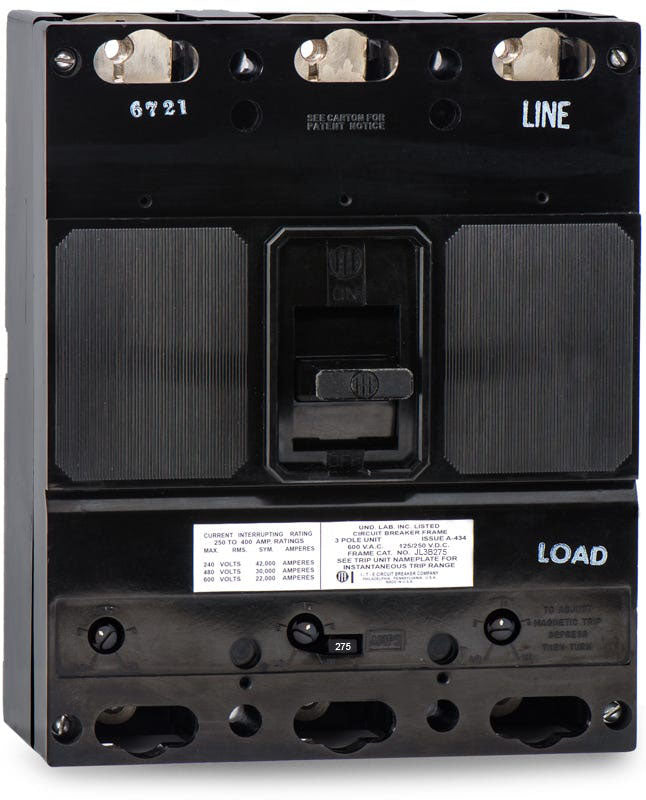

Siemens / ITE JL3B275 - 275A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
300A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, the Siemens JL3B275 is a 275-amp, 3-pole molded case circuit breaker. It provides essential long-time and instantaneous protection for commercial electrical systems. Designed for bolt-on installation, this unit fits perfectly into Siemens P4 and P5 panelboards, as well as legacy ITE FC/S-Series enclosures. It is an ideal drop-in replacement to maintain existing infrastructure. The breaker features a 65kAIC interrupting capacity at 240VAC.Specifications
| Brand | Siemens / ITE |
|---|---|
| Series | JL |
| Amperage | 275A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | JL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards, Legacy ITE FC/S-Series Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersCan I install the JL3B275 in older ITE panelboards?
Yes, this JL frame breaker is backward compatible with legacy ITE FC-Series and S-Series panelboards. It also fits modern Siemens P4 and P5 panelboards and switchboards, making it a direct drop-in solution for both new installations and older infrastructure upgrades.
What wire sizes are accepted by the standard lugs on the JL3B275?
The factory lugs accept copper or aluminum conductors ranging from 4 AWG up to 350 kcmil. When terminating aluminum wire, ensure you apply a listed joint compound to prevent oxidation and torque the lugs to the manufacturer specifications printed on the breaker faceplate.
How does the adjustable magnetic trip function on this breaker?
The JL3B275 features a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection. The adjustable dial allows electricians to fine-tune the instantaneous trip threshold to coordinate with downstream devices and prevent nuisance tripping from motor inrush currents.
Is it safe to use this 275A breaker on a 480V system with a 30kA available fault current?
Yes. The JL3B275 has an interrupting rating of 35kA at 480VAC, which safely exceeds a 30kA available fault current. Always verify the maximum available fault current at the specific panel location to ensure it does not exceed the breaker rated interrupting capacity for your system voltage.
Is the ITE JL3B275 the same as the Siemens JL3B275?
Yes. Siemens acquired ITE and continued manufacturing many of the same frame sizes under the Siemens brand. A JL3B275 breaker will have the exact same physical dimensions, mounting hardware, and electrical characteristics whether it carries an ITE or Siemens label.
