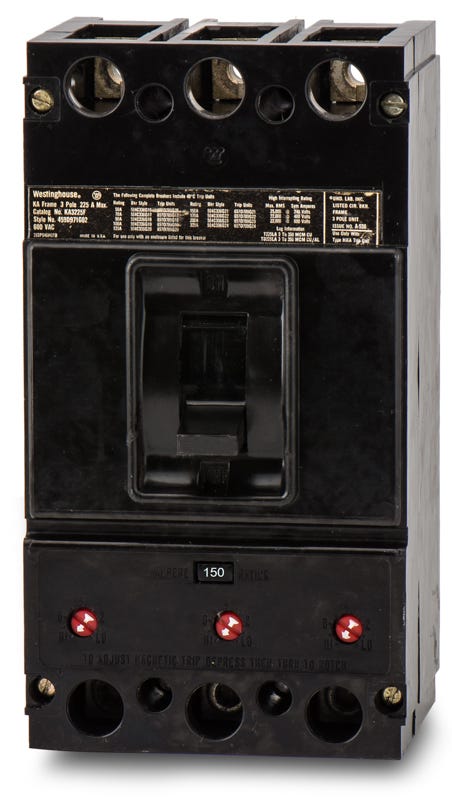

Eaton / Westinghouse KA3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
KA3150
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
KA3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse KA3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable 150-amp service, this legacy molded case circuit breaker is engineered for industrial power systems. It utilizes a thermal-magnetic mechanism equipped with an adjustable magnetic setting to fine-tune short-circuit protection. The bolt-on configuration integrates perfectly with older Westinghouse motor control centers and switchboards. Choosing this specific model prevents the hassle of modifying enclosure deadfronts to accommodate the KD3150 substitute.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | KA3150-R |
| Series | KA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, FDP Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit, HACR Rated |
Product FAQs
5 answersWhich panelboards are compatible with the KA3150 circuit breaker?
This bolt-on breaker is specifically designed to fit legacy Westinghouse CDP and FDP panelboards. It is also compatible with older Westinghouse switchboards and motor control centers that accept K-Frame breakers.
What type of wire can be used with the KA3150 terminals?
The factory-installed lugs accept both aluminum and copper (Al/Cu) conductors ranging from 4 AWG to 350 kcmil. Ensure your conductors are properly sized for a 150A load per the National Electrical Code (NEC).
How does the adjustable trip unit on the KA3150 work?
This breaker features a thermal-magnetic (LI) trip unit. The thermal element, which provides long-time overload protection, is fixed at 150 amps. The magnetic element, which provides instantaneous short-circuit protection, is adjustable, allowing you to fine-tune the trip response for your specific load requirements.
Is the KA3150 a direct replacement for older Westinghouse K-Frame breakers?
Yes, the KA3150 is a direct bolt-on replacement for legacy Westinghouse KA-type, 150A, 3-pole breakers. Using this exact model prevents the need to modify enclosure deadfronts or bus connections that might be required if upgrading to a newer Series C KD-frame substitute.
What is the maximum fault current rating for the KA3150 at 480V?
The KA3150 provides a 22kA interrupting capacity (AIC) at 480VAC. It is essential to verify that the available fault current at your installation point does not exceed this rating to ensure safe operation.
