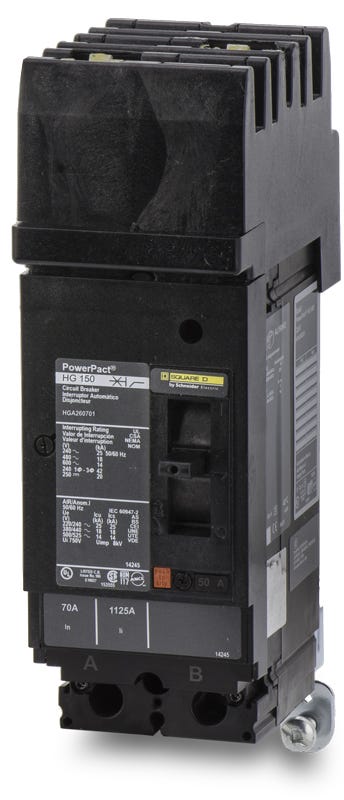

Square D HGA260701 Molded Case Circuit Breaker
- 70A
- 2 Pole
- I-Line
Square D
HGA260701
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260701
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260701 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D HGA260701 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA260701 |
| Series | HGA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Square D HGA260701 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Built for demanding electrical systems, the Square D HGA260701 is a 70A, 2-pole molded case circuit breaker offering thermal-magnetic LI protection. It is part of the robust PowerPacT H-Frame series, designed for commercial and industrial power distribution. Featuring an AB phase connection, this unit mounts into Square D I-Line panelboards and switchboards. It provides an excellent upgrade path, replacing older FA26070AB and FH26070AB models.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA260701 |
| Series | HGA |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersWhat type of panelboards are compatible with the HGA260701?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features a plug-on design that connects directly to the panel bus system.
Which older Square D circuit breakers can the HGA260701 replace?
The HGA260701 serves as a direct, modernized upgrade for legacy FA26070AB and FH26070AB molded case circuit breakers in I-Line panels.
What phase connection does the HGA260701 use?
This specific part number is configured with an AB phase connection for mounting onto the I-Line bus.
What does the G in the HGA260701 catalog number represent?
The G designates the breaker interrupting rating tier within the PowerPacT series. For this model, it delivers a 65kA rating at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
What tool is required to secure the conductors in the HGA260701 lugs?
You will need a 3/16-inch hex bit to properly torque the wire binding screws on the standard H-Frame lugs. Always refer to the manufacturer specifications for exact torque values based on your wire size.
Can the HGA260701 be installed in DC electrical systems?
Yes, this thermal-magnetic breaker is rated for direct current applications, providing a 20kA interrupting capacity at both 250VDC and 500VDC.
What does the A in the HGA260701 part number signify?
In the Square D catalog numbering system, the A indicates an I-Line style plug-in connection, meaning the breaker is built specifically for I-Line panelboards rather than standard unit-mount or DIN rail applications.
What type of protection does the LI trip function provide on the HGA260701?
The LI designation means the breaker includes Long-Time thermal protection to prevent system overloads and Instantaneous magnetic protection to safely clear short circuits. Both settings are fixed on this model.
