Square D HGA36060U31X Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Square D
HGA36060U31X
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36060U31X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36060U31X - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36060U31X - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36060U31X |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 15-60A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing |
Sold out
Quantity
Square D HGA36060U31X - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 15-60A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing |
Similar Items
Description

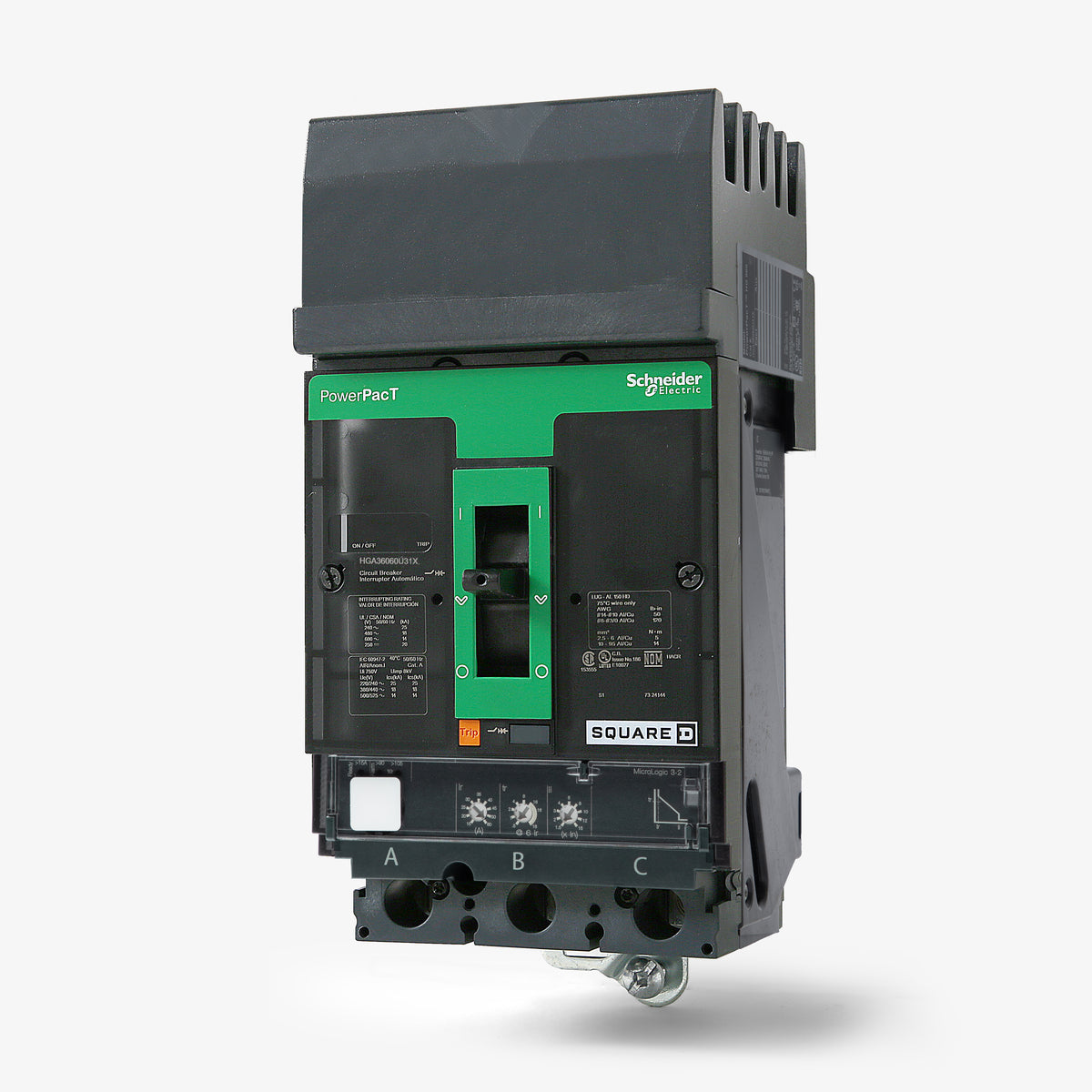

The Square D HGA36060U31X is a 3-pole, 60A molded case circuit breaker from the PowerPacT H-Frame family, built for commercial and industrial facilities. This unit installs into Square D I-Line panelboards and switchboards. The I-Line mounting style allows for quick phase connections, while load-side lugs accept 14 to 3/0 AWG wire. Equipped with a Micrologic 3.2 electronic trip unit, it provides adjustable LI protection. It is HACR rated and delivers 65 kAIC at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36060U31X |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 15-60A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing |
Product FAQs
6 answersWhat type of enclosures or panels accept the HGA36060U31X?
This breaker features an I-Line style plug-in connection on the line side, making it exclusively compatible with Square D I-Line panelboards and switchboards. It is not designed for standard unit-mount or load center applications.
What does the U31X suffix mean on this PowerPacT H-Frame breaker?
The U31X designation indicates the breaker is equipped with a Micrologic 3.2 electronic trip unit. This provides adjustable Long-Time and Instantaneous (LI) protection, offering more precise coordination than standard thermal-magnetic trip units.
What wire sizes are compatible with the load lugs on the HGA36060U31X?
The factory-installed load-side mechanical lugs accept 14 AWG to 3/0 AWG aluminum or copper conductors.
Can the HGA36060U31X replace older Square D 60A I-Line breakers?
Yes, the PowerPacT H-Frame occupies the same I-Line mounting space as Square D's discontinued F-Frame breakers. It can serve as a direct plug-on replacement for legacy 60A FA, FH, and FC series I-Line breakers, though the trip unit technology differs.
How does the HGA36060U31X connect to the panelboard bus?
It uses Square D's I-Line plug-on jaw connections for the line side, which seat directly onto the panelboard bus with a standard ABC phase sequence. The load side utilizes standard mechanical lugs.
Is the HGA36060U31X rated for 80% or 100% continuous current?
This breaker carries a standard 80% continuous current rating.
