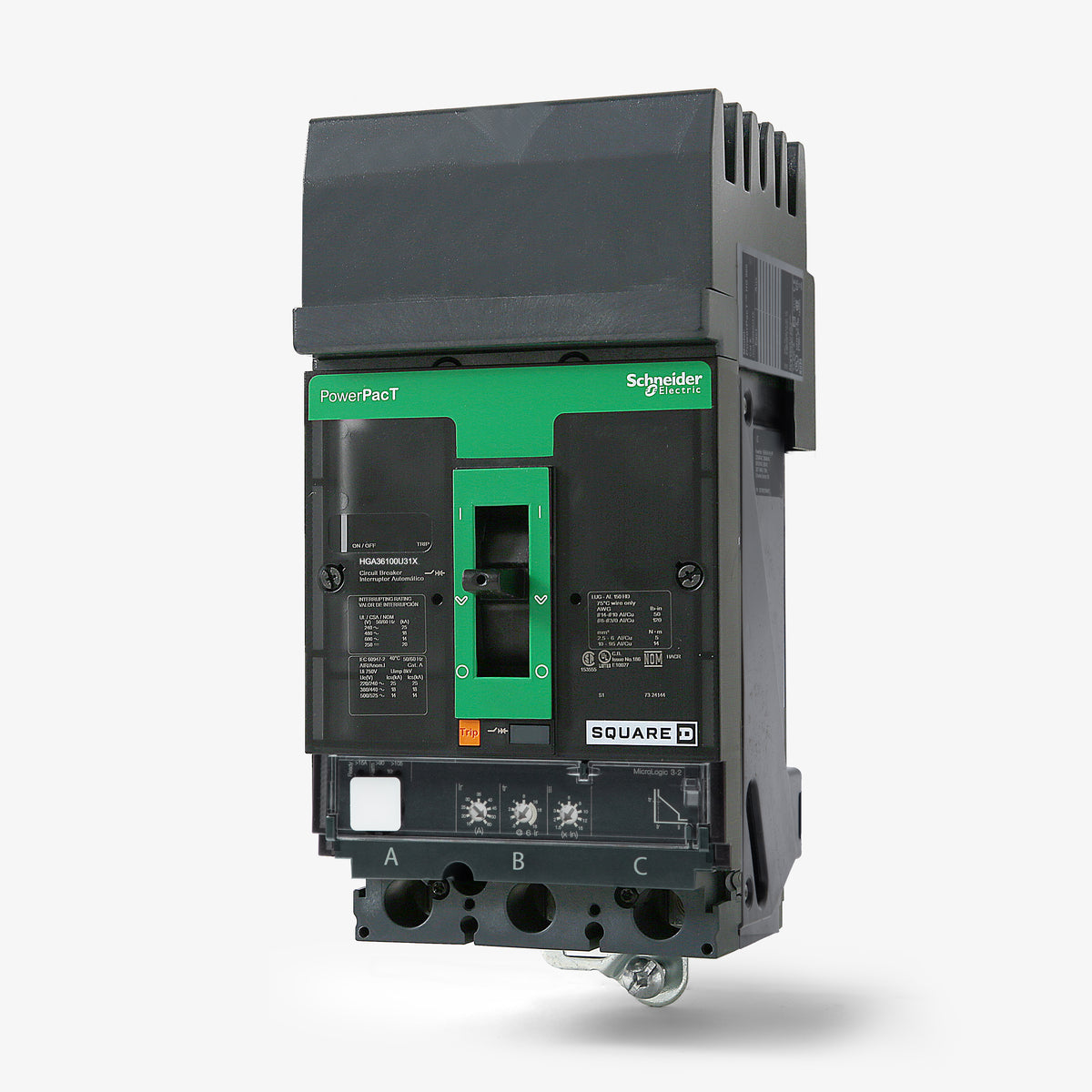

Square D HGA36100U31X Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
HGA36100U31X
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36100U31X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36100U31X - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36100U31X - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36100U31X |
| Series | HGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 25-100A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, True RMS Sensing, 80% Rated |
Quantity
Square D HGA36100U31X - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 25-100A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, True RMS Sensing, 80% Rated |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Providing microprocessor-based accuracy, the Square D HGA36100U31X is a 3-pole, 100A electronic trip MCCB. As part of the PowerPacT H-Frame lineup, it offers superior true RMS sensing compared to traditional thermal-magnetic alternatives. This unit mounts seamlessly into Square D I-Line panelboards for rapid deployment. Equipped with a Micrologic 3.2 trip unit, it features adjustable LI protection and delivers a robust 35kAIC rating at 480VAC, ensuring dependable current-limiting performance.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36100U31X |
| Series | HGA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC |
| Amperage Range | 25-100A |
|---|
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Communication Module |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, True RMS Sensing, 80% Rated |
Product FAQs
9 answersWhich panelboards are compatible with the HGA36100U31X?
This I-Line style plug-in breaker is designed exclusively for use in Square D I-Line panelboards and switchboards.
Is this circuit breaker compatible with field-installable internal accessories?
Yes, PowerPacT H-Frame breakers can be equipped with various internal accessories, including auxiliary switches, alarm switches, shunt trips, and undervoltage releases.
What does the G in the HGA frame designation indicate?
The G indicates the breaker's interrupting capacity level within the PowerPacT H-Frame family. For this specific model, it provides a 65kAIC rating at 240VAC, 35kAIC at 480VAC, and 18kAIC at 600VAC.
Is this circuit breaker 100% rated for continuous load?
No, this specific model is standard-rated for continuous operation at 80% of its 100A nameplate capacity.
What type of trip unit is installed in this breaker?
It features a solid-state MicroLogic 3.2 electronic trip unit, which offers more precise true RMS current sensing compared to traditional thermal-magnetic trip units.
Which specific trip functions can be adjusted on this model?
The MicroLogic 3.2 unit provides adjustable Long-Time (L) and Instantaneous (I) protection settings to closely coordinate with downstream electrical loads and customize the tripping threshold.
Is there a thermal-magnetic version of the HGA36100U31X available?
Yes. If you prefer fixed thermal-magnetic protection without the electronic MicroLogic trip unit, you can substitute the Square D HGA36100. It offers the exact same 100A rating, 3-pole configuration, and I-Line connection format.
What is the phase configuration for mounting this breaker to the bus?
This unit is factory-configured for standard ABC phasing on the I-Line bus.
How do the line and load connections differ for installation?
As an I-Line breaker, the line side mounts directly onto the panelboard bus using a plug-on jaw connection. The load side is equipped with mechanical lugs designed to terminate field wiring from 14 AWG to 3/0 AWG.
