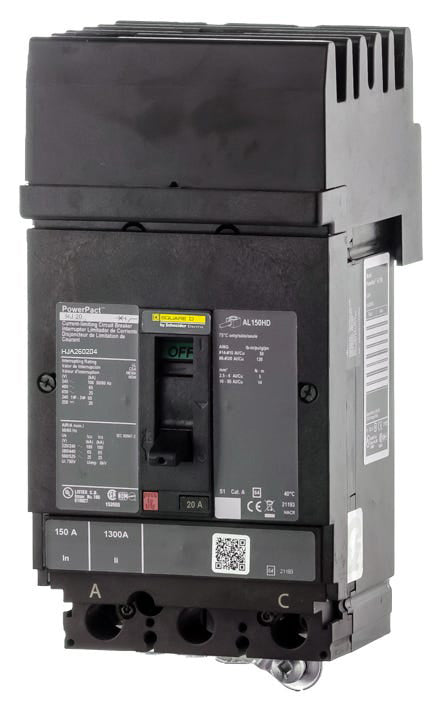

Square D HJA260204 Molded Case Circuit Breaker
- 20A
- 2 Pole
- I-Line
Square D
HJA260204
Molded Case Circuit Breaker
Brand
Square D
SKU
HJA260204
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJA260204 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Molded Case Circuit Breaker
15A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
The HJA260204 is a thermal-magnetic MCCB from Square D's PowerPacT H-Frame lineup, providing long-time and instantaneous (LI) protection for commercial systems. It mounts into Square D I-Line panelboards and switchboards, featuring a factory-configured BC phase connection. This 20A breaker serves as an exact replacement for legacy FC26020BC and FH26020BC models. Rated for 100kAIC at 240VAC and 65kAIC at 480VAC, this current-limiting device includes HACR certification and a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJA260204 |
| Series | HJA |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Phase Connection BC |
Product FAQs
5 answersWhat does the "4" suffix in the HJA260204 catalog number indicate?
The "4" suffix specifies that this 2-pole breaker is configured for a BC phase connection on the I-Line bus. Standard 2-pole I-Line breakers without a suffix or with a "1" suffix are typically configured for an AB phase connection.
Can the PowerPacT H-Frame HJA260204 replace older F-Frame I-Line breakers?
Yes, PowerPacT H-Frame breakers are the current replacement for legacy Square D F-Frame (FA, FH, FC, FI) I-Line breakers. They mount in the same I-Line bus space, though the physical footprint and lug placement may differ slightly.
What conductor materials are supported by the standard lugs on this breaker?
The standard factory-installed lugs are dual-rated for both aluminum and copper conductors, accepting wire sizes from 14 AWG to 3/0 AWG.
How does this breaker connect to the panelboard bus?
It utilizes a blow-on plug-on connection designed exclusively for Square D I-Line panelboards and switchboards. The breaker jaws mount directly to the I-Line bus stack, and the connection grips tighter under high-level short circuit conditions.
Is the HJA260204 considered a current-limiting circuit breaker?
Yes, PowerPacT H-Frame breakers with the J interrupting rating are UL Listed and CSA Certified as current-limiting circuit breakers. They are designed to reduce peak let-through energy during a short circuit fault.
