Schneider Electric HJL36100SA Circuit Breaker
- 100
- 3 Pole
- Unit
Schneider Electric
HJL36100SA
Circuit Breaker
Brand
Schneider Electric
SKU
HJL36100SA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric HJL36100SA 3 Pole Circuit Breaker
New
Quantity
Quantity
Schneider Electric HJL36100SA 3 Pole Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | HJL36100SA |
| Series | PowerPacT H |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | RoHS, REACh, HACR |
| Approval | UL, CSA, CE, NEMA, NOM, IEC |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Schneider Electric HJL36100SA 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | PowerPacT H |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | RoHS, REACh, HACR |
| Approval | UL, CSA, CE, NEMA, NOM, IEC |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description

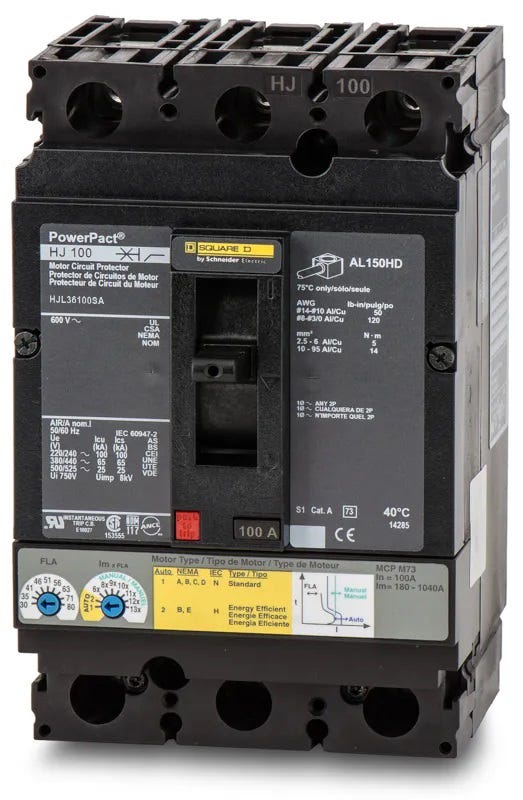

Schneider Electric HJL36100SA 3 Pole Circuit Breaker
The Schneider Electric HJL36100SA is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The HJL36100SA has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | HJL36100SA |
| Series | PowerPacT H |
| Amperage | 100 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included, Shunt Trip (Factory Installed) |
| Standards | RoHS, REACh, HACR |
| Approval | UL, CSA, CE, NEMA, NOM, IEC |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
5 answersWhat does the SA suffix indicate on the HJL36100SA catalog number?
The SA suffix means this breaker includes a factory-installed shunt trip rated for 110/130VAC or 125VDC. This accessory allows the breaker to be tripped remotely using a separate electrical control signal.
How is the HJL36100SA mounted in a panel?
The L in the HJL prefix indicates this is a unit-mount breaker with lugs on both the line and load ends. It is designed to be secured with screws directly to a backpan or mounting plate and is not compatible with Square D I-Line plug-on panelboards.
Are the thermal or magnetic trip settings adjustable on this model?
No. The HJL36100SA uses a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be modified in the field.
Can I use the HJL36100SA to replace an I-Line circuit breaker?
No. This is a unit-mount breaker designed for feed-thru, cable-to-cable installations. If you need a plug-on breaker for a Square D I-Line panelboard, you will need the HJA36100SA instead.
Is the HJL36100SA rated for 100% continuous current?
No, this is a standard-rated circuit breaker, meaning it is rated for 80% continuous current. Per the National Electrical Code (NEC), it should not be loaded continuously beyond 80 amps.
