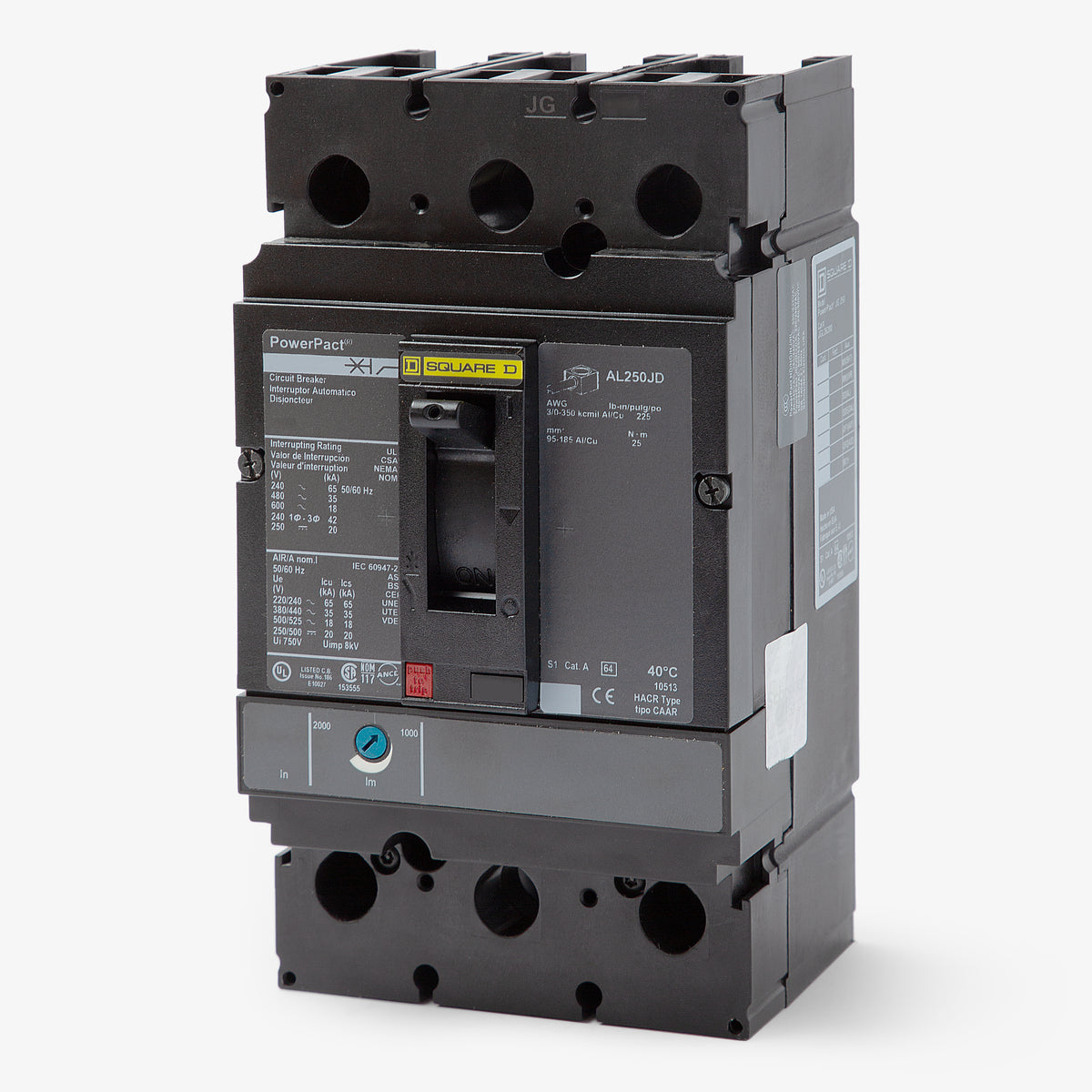

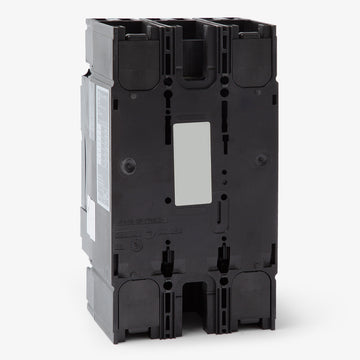

Square D JGL36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
JGL36200
Molded Case Circuit Breaker
Brand
Square D
SKU
JGL36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JGL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | JGL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Quantity
Square D JGL36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | JGL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D JGL36200 provides robust overcurrent and short-circuit protection. This 3-pole, 200A molded case circuit breaker installs into NF panelboards, motor control centers, and switchboards via a standard unit mount configuration. Rated for 35 kAIC at 480VAC, it features a fixed thermal and adjustable magnetic trip unit for precise coordination. The breaker includes Visi-Trip technology for rapid fault identification.Specifications
| Brand | Square D |
|---|---|
| Series | JGL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, CCC |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator |
Product FAQs

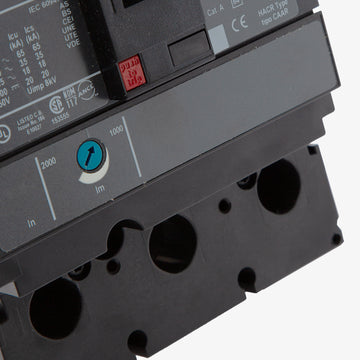

6 answersWhat is the magnetic trip range for the JGL36200 circuit breaker?
The JGL36200 features a fixed thermal and an adjustable magnetic trip unit. The instantaneous magnetic trip range can be adjusted from a low setting of 1000A to a high setting of 2000A.
Can the Square D JGL36200 be reverse fed?
Yes, PowerPacT J-frame thermal magnetic circuit breakers, including this model, have a factory sealed trip unit and are suitable for reverse connection applications.
What is the difference between the JGL36200, JDL36200, and JLL36200?
While they share the same physical 200A J-frame, they feature different interrupting capacities. The JDL36200 is rated 18kA at 480VAC, the JGL36200 is rated 35kA at 480VAC, and the JLL36200 offers the highest rating of 100kA at 480VAC.
Can I install a shunt trip or auxiliary contacts in the JGL36200?
Yes, the PowerPacT J-frame breakers support field installable electrical accessories. Auxiliary switches, shunt trips, and undervoltage releases can be installed internally without increasing the breaker footprint.
Is the JGL36200 continuous current rated at 80% or 100%?
The standard JGL36200 is rated for 80% continuous current. If your specific application requires a 100% continuous current rating, you must source the alternate catalog number JGL36200C.

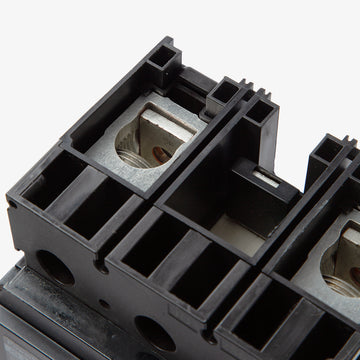

Which standard lug kit is included with the unit-mount JGL36200?
This unit-mount breaker comes equipped with the standard AL250JD lug kit for both the line and load sides.
