Square D QBL22090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Square D
QBL22090
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL22090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

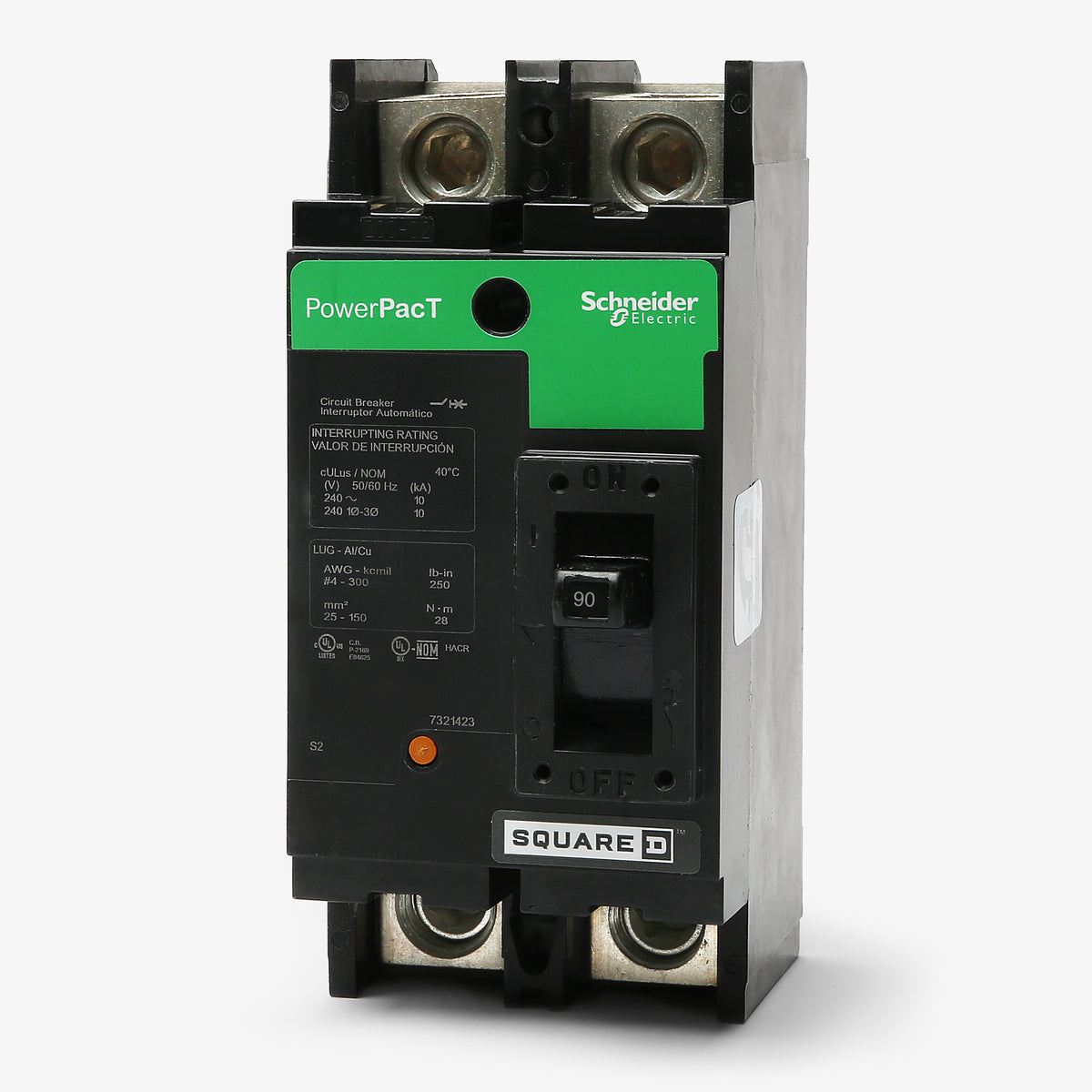

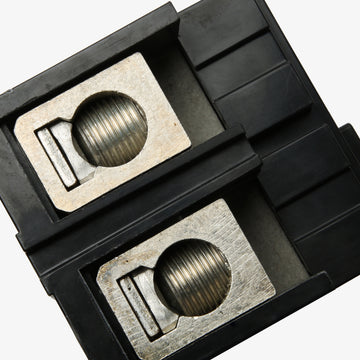

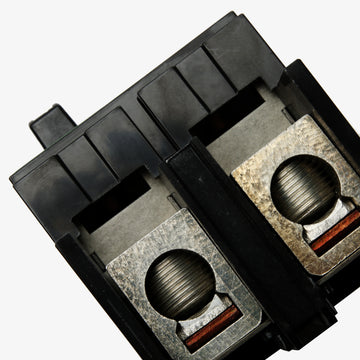

Square D QBL22090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Delivering reliable long-time and instantaneous trip functions, this 90A molded case circuit breaker is a staple for heavy-duty electrical distribution. The lug-equipped unit mount design integrates smoothly into Square D Q2 enclosures, switchboards, and specialized control panels. Facility managers frequently utilize this model to replace aging Q22090 breakers. It features a HACR rating and a quick-make/quick-break mechanism to maintain consistent operational safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL22090 |
| Series | QBL |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels, Meter Mains |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat enclosures and panels are compatible with the QBL22090 circuit breaker?
The QBL22090 is designed for use in Square D Q2 enclosures, switchboards, control panels, and meter mains.
What wire sizes are accepted by the lugs on the QBL22090?
The line and load lugs accept 4 AWG to 300 kcmil aluminum or copper wire.
What is the recommended tightening torque for the lug terminals on this breaker?
The line and load lugs should be torqued to 248 lb-in (28 N.m).
What is the difference between the QBL22090 and the QDL, QGL, or QJL versions?
The difference is the interrupting rating at 240V. The QBL22090 is rated at 10kA, while the QDL is 25kA, the QGL is 65kA, and the QJL is 100kA. They share the same physical dimensions and mounting style.
What does the LI trip function mean on the QBL22090?
The LI designation stands for Long-Time and Instantaneous trip functions. This breaker uses fixed thermal and fixed magnetic trip settings to protect against overloads and short circuits.
Is the QBL22090 a plug-on or bolt-on breaker?
Neither. It is a unit-mount, feed-thru circuit breaker that uses lugs on both the line and load sides for wire connections. It does not plug or bolt onto a panelboard bus.
