Square D QBL32090 Circuit Breaker
- 90
- 3 Pole
- Unit Mount
Square D
QBL32090
Circuit Breaker
Brand
Square D
SKU
QBL32090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32090 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D QBL32090 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBL32090 |
| Series | PowerPacT Q |
| Amperage | 90 A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Sold out
Quantity
Square D QBL32090 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | PowerPacT Q |
| Amperage | 90 A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description

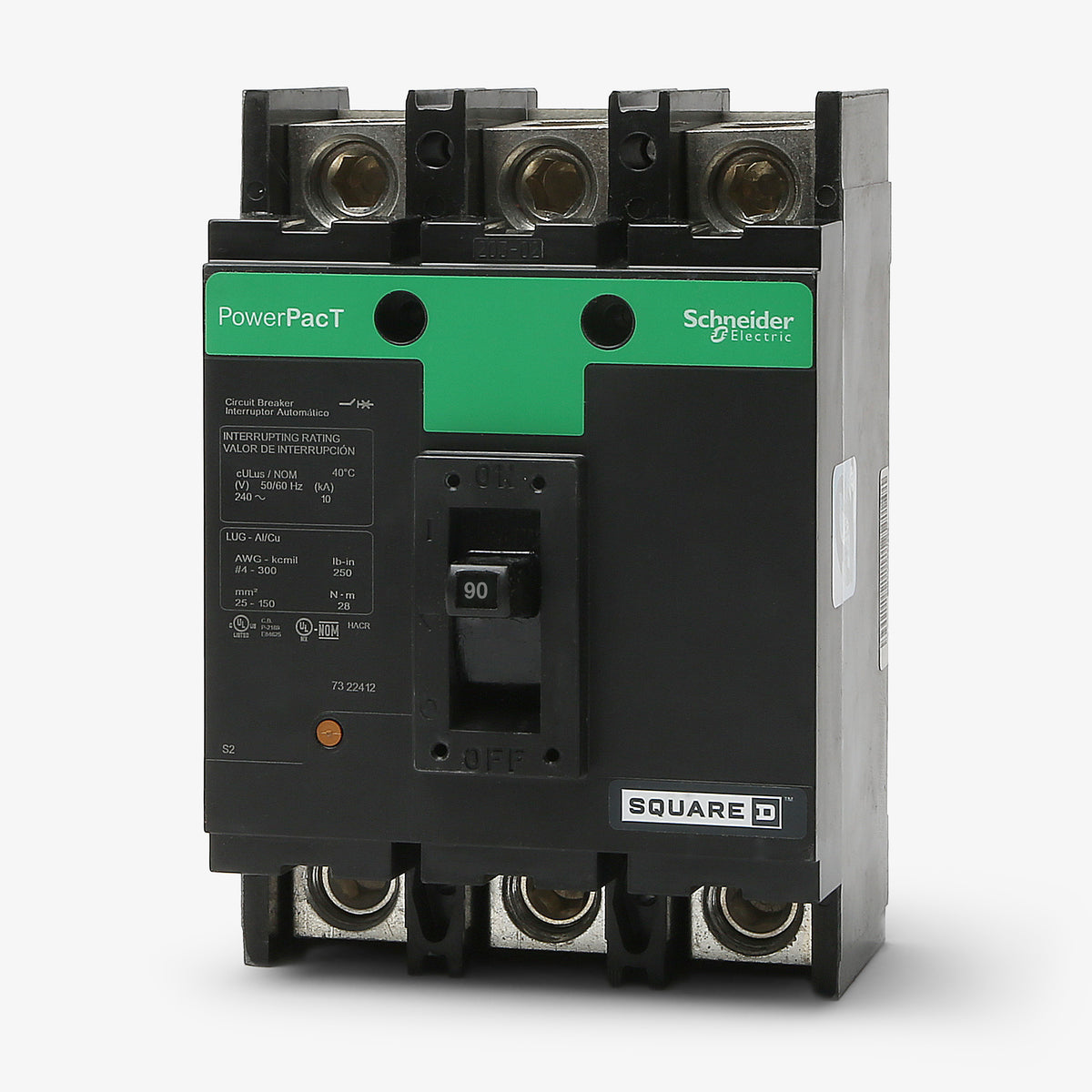

Square D QBL32090 3 Pole Circuit Breaker
The Square D QBL32090 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240VAC. The QBL32090 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | QBL32090 |
| Series | PowerPacT Q |
| Amperage | 90 A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhat types of enclosures and panels are compatible with the QBL32090?
This unit-mount breaker is designed for use in Square D individual enclosures, metering devices, panelboards, and switchboards that accept Q-Frame breakers. It is not compatible with I-Line group-mounted panels.
Can the QBL32090 replace older Square D circuit breakers?
Yes, the PowerPacT Q-frame line is a direct replacement for discontinued Square D Q2 Series circuit breakers with matching pole and amperage configurations.
What is the recommended tightening torque for the lugs on the QBL32090?
The line and load lugs, which accept 4 AWG to 300 kcmil aluminum or copper wire, should be torqued to 248 lb-in (28 N.m).
Is the QBL32090 rated for 100 percent continuous duty?
No, this breaker has a standard 80 percent continuous current rating. Continuous loads should not exceed 72 amps (80 percent of its 90-amp rating) for three hours or more.
What are the magnetic trip thresholds for this 90-amp breaker?
The fixed thermal-magnetic trip unit has a magnetic hold current of 1200A and a magnetic tripping current of 2400A.
Does this Q-Frame breaker include a manual testing feature?
Yes, it features an integral push-to-trip button on the cover. This allows you to manually trip the breaker to verify the mechanical operation of the tripping mechanism as part of regular preventive maintenance.
Is the QBL32090 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific certification.
