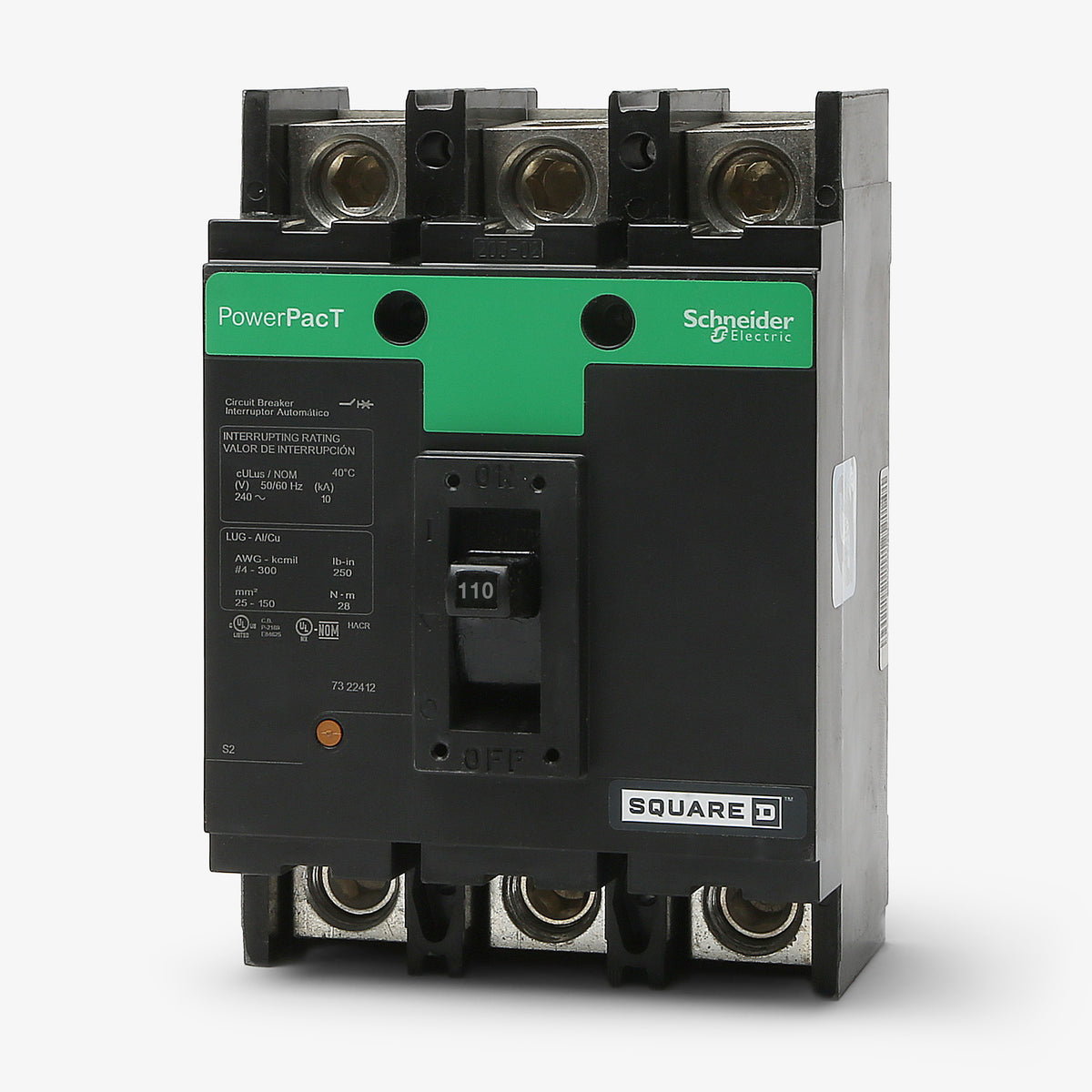

Square D QBL32110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Square D
QBL32110
Molded Case Circuit Breaker
Brand
Square D
SKU
QBL32110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBL32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBL32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Quantity
Square D QBL32110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
Providing 110A of continuous capacity, the QBL32110 is a 3-pole MCCB from the PowerPacT Q-Frame series. It utilizes fixed thermal and magnetic trip elements for dependable LI protection. Engineered for unit mounting, it fits into Square D Q2 enclosures, switchboards, and control panels. It is the exact replacement for discontinued Q23110 breakers. Featuring a 10kAIC rating at 240VAC, it includes factory-installed lugs and a Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Series | QBL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Q2 Enclosures, Switchboards, Control Panels |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator |
Product FAQs
6 answersWhat enclosures and panels are compatible with the QBL32110?
This Q-Frame breaker is engineered for installation in Square D Q2 enclosures, as well as compatible switchboards and control panels.
Is the QBL32110 a direct replacement for older Square D breakers?
Yes, this model serves as the exact replacement for the discontinued Square D Q23110 circuit breaker.
What wire sizes do the factory lugs accept?

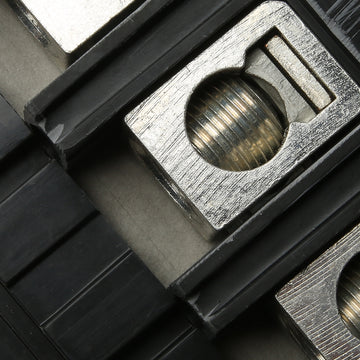

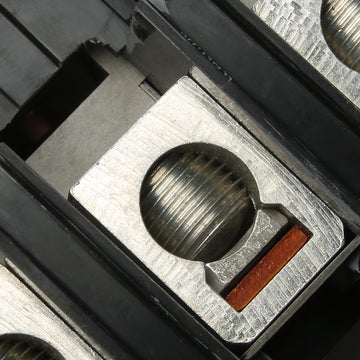

The included lugs are rated for both aluminum and copper conductors, accommodating wire sizes from 4 AWG up to 300 kcmil.
Does this breaker plug onto a busbar or bolt in place?

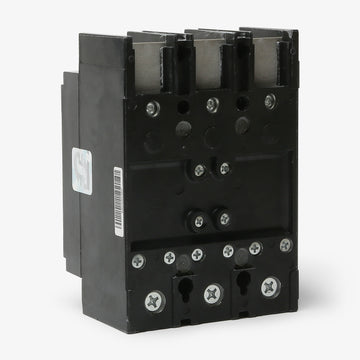

The QBL32110 is a unit mount, feed-thru circuit breaker. It bolts directly to the mounting surface or backpan rather than plugging into a panelboard bus.
Does this Q-Frame breaker feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator, which provides a highly visible red flag to help you quickly identify a tripped circuit.
Are the thermal and magnetic trip settings adjustable on this model?
No, the thermal-magnetic trip unit features fixed long-time and instantaneous (LI) settings that cannot be adjusted in the field.
