Square D QGP22225TM Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Square D
QGP22225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP22225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

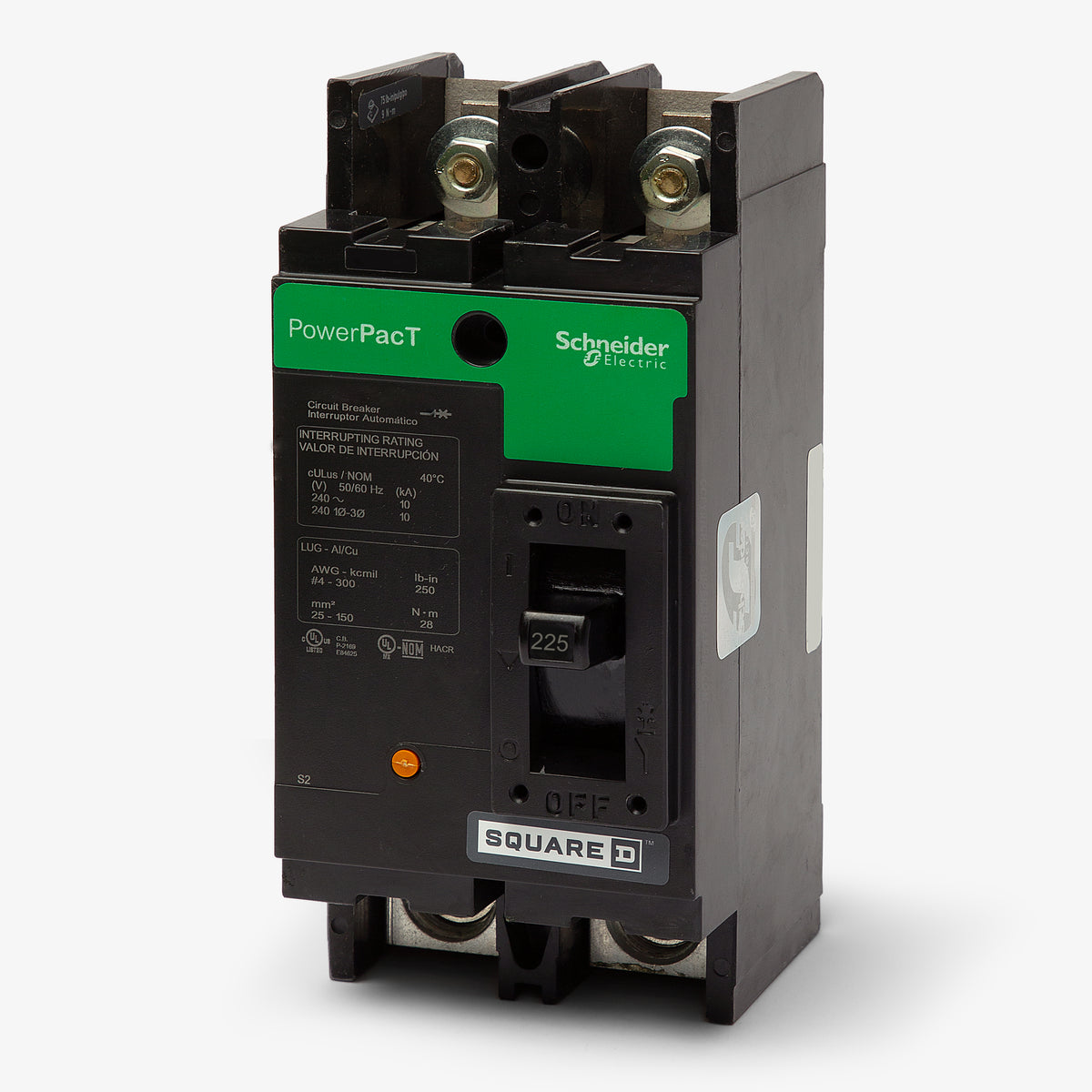

Square D QGP22225TM - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
2 Pole Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
The QGP22225TM is a two-pole molded case circuit breaker from the Square D PowerPacT Q-Frame family. It provides thermal-magnetic protection for commercial electrical systems. This unit-mount breaker is engineered for compatibility with Square D EZ Meter-Pak metering centers. It utilizes stud and tapped pad terminals for a secure connection. Delivering a 65 kAIC rating at 240VAC, this 225A breaker handles demanding faults. It features a Visi-Trip indicator for quick status identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP22225TM |
| Series | QGP |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Terminal Nuts |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat equipment is the QGP22225TM circuit breaker designed to fit?
This unit-mount breaker is specifically engineered for use as a tenant main breaker in Square D EZ Meter-Pak and MP Meter-Pak metering centers.
How does the QGP22225TM connect within the metering center?
It features a unit-mount design with stud and tapped pad connections on the line side and mechanical lugs on the load side. The load lugs accept 4 AWG to 300 kcmil aluminum or copper wire.
Is the QGP22225TM a plug-on or bolt-on breaker?
It is a bolt-on, unit-mount circuit breaker. It secures directly to the metering center bus using the integrated line-side studs and terminal nuts.
What type of protection does the QGP22225TM provide?
It utilizes a fixed, non-interchangeable thermal-magnetic trip unit to provide reliable protection against both thermal overloads and magnetic short circuits.
Does the QGP22225TM include a push-to-trip feature?
Yes, like all PowerPacT Q-Frame breakers, it includes an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanical operation of the trip mechanism.
Can the QGP22225TM replace older Square D tenant breakers?
Yes, this PowerPacT Q-Frame breaker serves as a direct replacement for discontinued legacy Q-frame tenant breakers of the same 225A rating and 65kAIC capacity in Square D metering centers.
