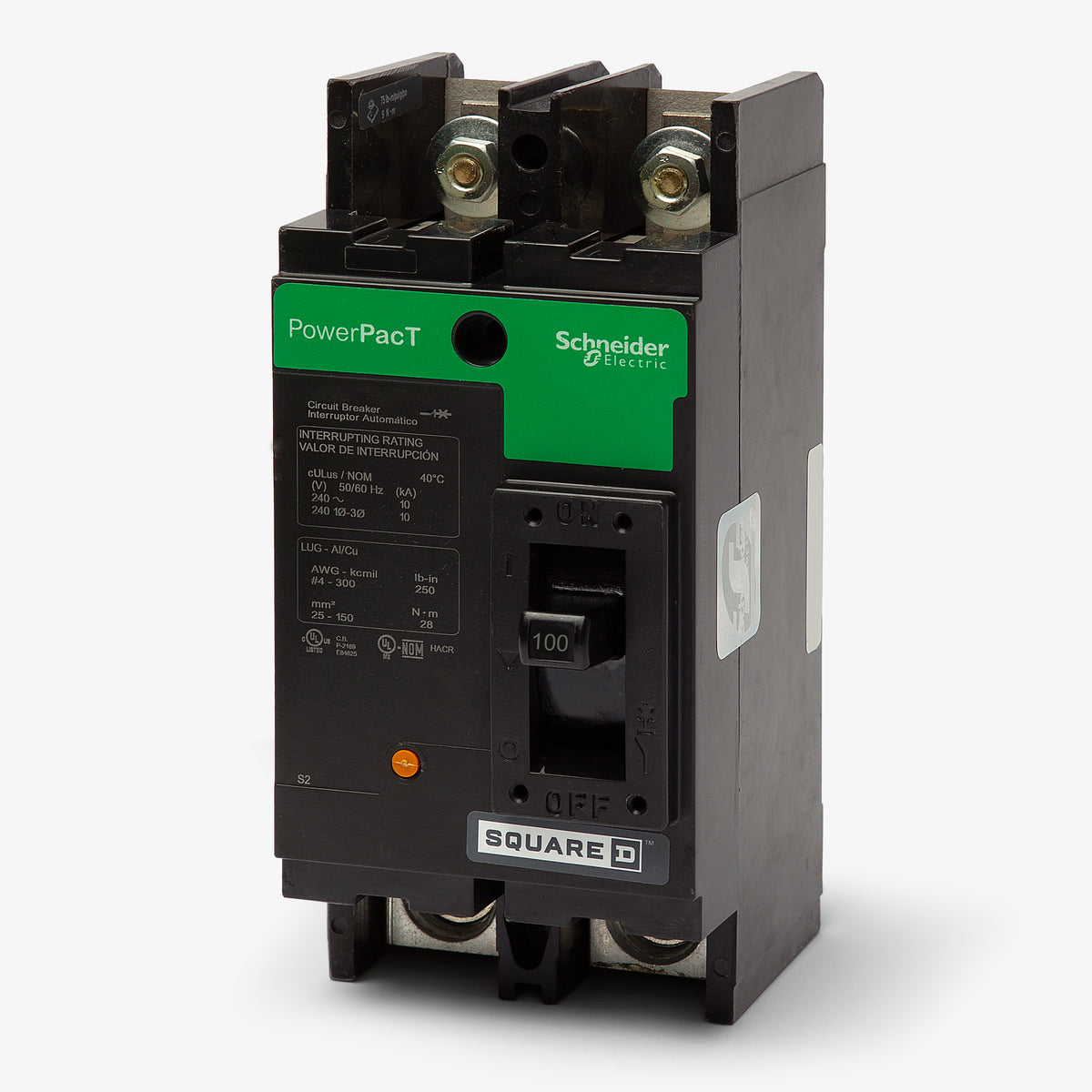

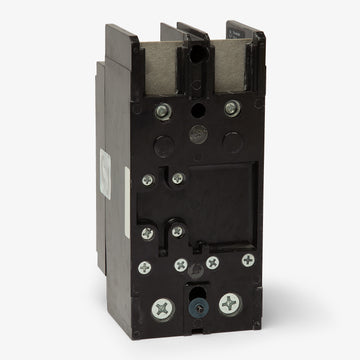

Square D QGP22100TM Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
QGP22100TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP22100TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGP22100TM - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
2 Pole Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Built for high-capacity fault protection, the Square D QGP22100TM is a 100A, 2-pole molded case circuit breaker in the PowerPacT Q-Frame series. It utilizes a non-interchangeable thermal-magnetic trip unit to deliver precise long-time and instantaneous (LI) overcurrent defense. Designed for unit mounting, this breaker is an exact fit for Square D Meter-Pak metering centers. The connection setup includes line-side terminal nuts and load-side lugs, accepting 4 AWG to 300 kcmil conductors.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP22100TM |
| Series | QGP |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Terminal Nuts |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat equipment is the QGP22100TM circuit breaker designed to fit?
This breaker is specifically designed for use in Square D Meter-Pak metering centers. It is a unit mount breaker from the PowerPacT Q-Frame series.
What type of line and load connections does the QGP22100TM feature?

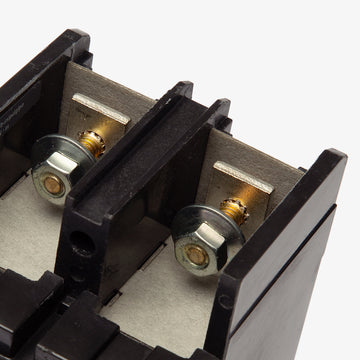

The P frame designation and TM suffix indicate it has factory-installed lug terminals on the load side (OFF end) and 1/4-20 studs with nuts and washers on the line side (ON end).
What wire sizes are accepted by the load side lugs on this breaker?

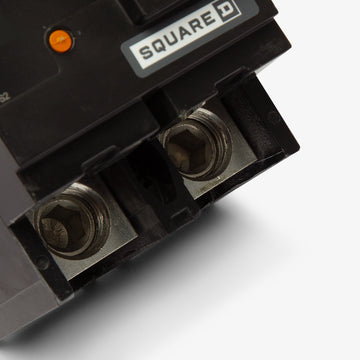

The load side box lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
What does the G in the QGP22100TM catalog number indicate?
The G designates the interrupting rating tier within the PowerPacT Q-Frame family. It indicates a high interrupting capacity of 65kA at 240VAC.
Is the trip unit on this breaker adjustable?
No, it features a fixed thermal and fixed magnetic trip unit. It provides non-interchangeable long-time and instantaneous (LI) overcurrent protection.
Can this breaker be mounted in an I-Line panelboard?
No, the QGP22100TM is a unit mount (bolt-on) circuit breaker. It is not compatible with I-Line group-mounted panelboards, which require a different mounting configuration.
